| Prod Model: |
Z900 |
| Power Range: |
0.75kw-1000kw |
| Output Frequency: |
0.10Hz~400Hz |
| Input Voltage: |
380V(0.75kw-1000kw) |
| Size: |
Frequency Inverter |
| Control Type: |
V/F Control Open Loop Vector Control |
| Carrier Frequency: |
0.5~15kHz |
| Communication: |
RS485 |
| IP: |
20 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |

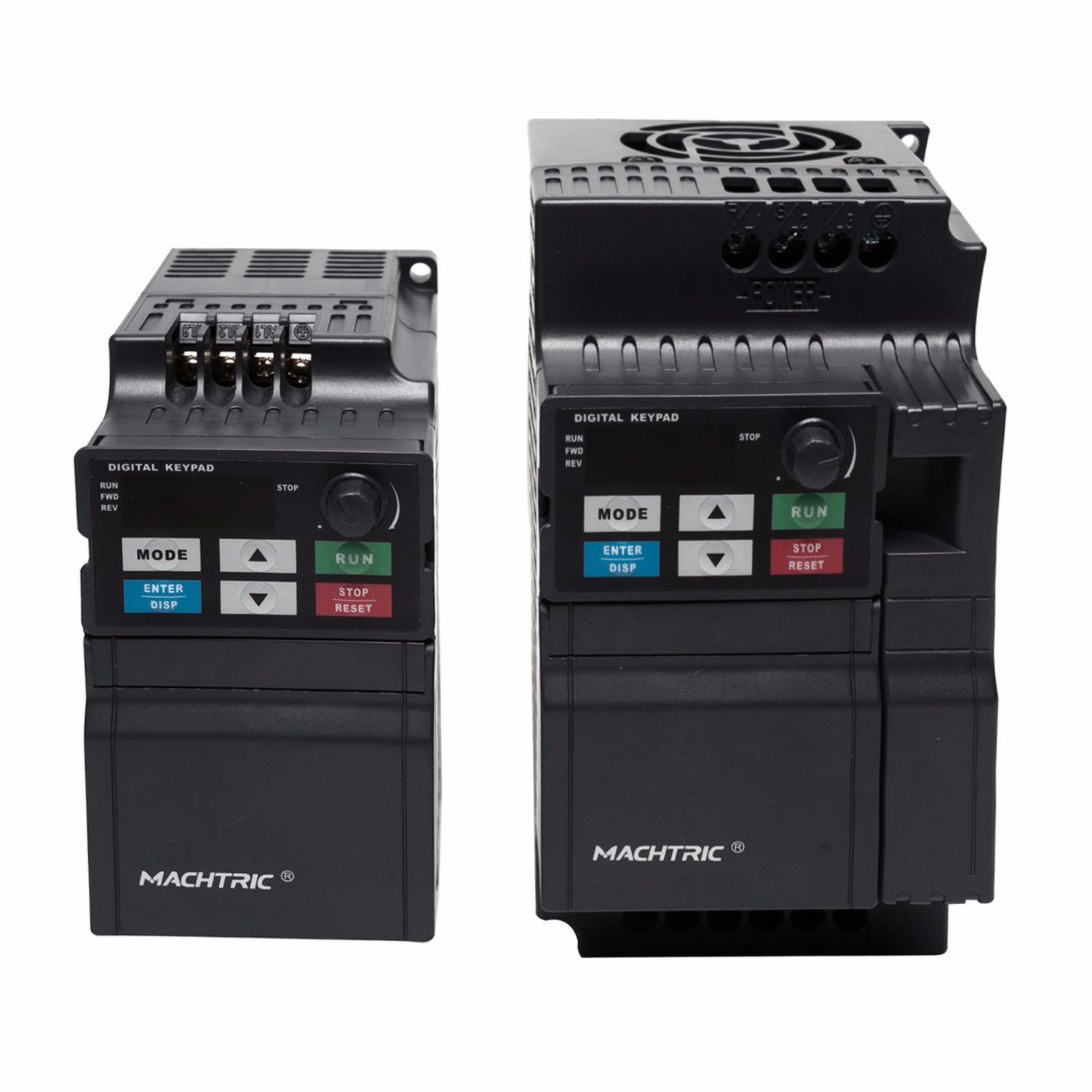

Product Description
Product Description:
Items |
Z900E |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| | Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V,380V:0~380V |
| | Frequency Range | 0.10`400.00Hz |
| Control method | Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| | Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| | Output Frequency Accuracy | 0.01Hz |
| | V/F Control | Setting V/F curve to satisfy various load requirements |
| | Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
| | Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
| | Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| | Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| Other Functions | PID Control | Built-in PID control |
| | RS485 | Standard RS485 communication function(MODBUS) |
| | Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| | Multi-speed | Six multifunction input terminals, 15section speed can be set |
| | Automatic voltage regulation | Automatic voltage regulation function can be selected |
| | Counter | Built -in 2group of counters |
Protection/
Warning Function | Overload | 150%,60 second(Constant torque) |
| | Over Voltage | Over voltage protection can be set |
| | Under Voltage | Under voltage protection can be set |
| | Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| | Ambient Humidity | Max.95%(non-condensing) |
| | Altitude | Lower than 1000m |
| | Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| | Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
Packing:
Single by buffers and single small carton, but lots of goods by bigger carton and cover PE film .
The cartons have three sizes: 460mm*390mm*580mm; 445mm*330mm*655mm;500mm*440mm*615mm;
But more than 22 kw ,they are packed in wooden cases.
Shipping:
By sea, or express like UPS, DHL, FedEx...
If we deliver a lots of inverters ,we could use a outer larger carton to pack it ,and cover PE film to protect goods.
Specification
| Model | Input | Rate output
Power
(kw) | Rated Input Current
(A) | Rated Output Current (A) | Applicable motor
(KW) |
| Z900-2S0.4GE | Single phase AC 220V.50/60Hz | 0.4 | 5.4 | 2.4 | 0.4 |
| Z900-2S0.75GE | Single phase AC 220V.50/60Hz | 0.75 | 7.2 | 4.5 | 0.75 |
| Z900-2S1.5GE | Single phase AC 220V.50/60Hz | 1.5 | 10 | 7.0 | 1.5 |
| Z900-2S3.7GE | Single phase AC 220V.50/60Hz | 3.7 | 16 | 10.0 | 3.7 |
| Z900-2S5.5GE | Single phase AC 220V.50/60Hz | 5.5 | 21 | 20 | 5.5 |
| Z900-2S7.5GE | Single phase AC 220V.50/60Hz | 7.5 | 31 | 30 | 7.5 |
| Z900-4T0.4GE | Three phase AC 380V.50/60Hz | 0.4 | 3.4 | 1.2 | 0.4 |
| Z900-4T0.75GE | Three phase AC 380V.50/60Hz | 0.75 | 3.8 | 2.5 | 0.75 |
| Z900-4T1.5GE | Three phase AC 380V.50/60Hz | 1.5 | 5 | 3.7 | 1.5 |
| Z900-4T2.2GE | Three phase AC 380V.50/60Hz | 2.2 | 5.8 | 5.0 | 2.2 |
| Z900-4T3.7GE/5.5PE | Three phase AC 380V.50/60Hz | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| Z900-4T5.5GE | Three phase AC 380V.50/60Hz | 5.5 | 15 | 13 | 5.5 |
| Z900-4T7.5GE/11PE | Three phase AC 380V.50/60Hz | 7.5 | 20 | 17 | 7.5 |
| Z900-4T11GE/15PE | Three phase AC 380V.50/60Hz | 11/15 | 26/35 | 25/32 | 11/15 |
| Z900-4T15GE/ 18.5PE | Three phase AC 380V.50/60Hz | 15/18.5 | 35/38 | 32/37 | 15/18.5 |
| Z900-4T18.5GE/ 22PE | Three phase AC 380V.50/60Hz | 18.5/22 | 38/46 | 37/45 | 18.5/22 |
| Z900-4T22GE/30PE | Three phase AC 380V.50/60Hz | 22/30 | 46/62 | 45/60 | 22/30 |
| Z900-4T30GE/37PE | Three phase AC 380V.50/60Hz | 30/37 | 62/76 | 60/75 | 30/37 |
| Z900-4T37GE/45PE | Three phase AC 380V.50/60Hz | 37/45 | 76/90 | 75/90 | 37/45 |
| Z900-4T45GE/55PE | Three phase AC 380V.50/60Hz | 45/55 | 90/105 | 90/110 | 45/55 |
| Z900-4T55GE | Three phase AC 380V.50/60Hz | 55 | 105 | 110 | 55 |
| Z900-4T75PE | Three phase AC 380V.50/60Hz | 75 | 140 | 150 | 75 |
| Z900-4T75GE/90PE | Three phase AC 380V.50/60Hz | 75/90 | 140/160 | 150/176 | 75/90 |
| Z900-4T90GE/110PE | Three phase AC 380V.50/60Hz | 90/110 | 160/210 | 176/210 | 90/110 |
| Z900-4T110GE/ 132PE | Three phase AC 380V.50/60Hz | 110/132 | 210/240 | 210/253 | 110/132 |
| Z900-4T132GE/ 160PE | Three phase AC 380V.50/60Hz | 132/160 | 240/290 | 253/300 | 132/160 |
Dimension
| Model | Outline dimension | Installation size |
| | W | H | D | A | B | Φd |
| Z900-2S0.4GE | 72 | 142 | 146 | 132.7 | 62.7 | 5.2 |
| Z900-2S0.75GE | | | | | | |
| Z900-2S1.5GE | | | | | | |
| Z900-2S2.2GE | 100 | 183 | 137.6 | 173 | 90 | 4.7 |
| Z900-2S3.7GE | | | | | | |
| Z900-4T0.4GE | 72 | 142 | 146 | 132.7 | 62.7 | 5.2 |
| Z900-4T0.75GE | | | | | | |
| Z900-4T1.5GE | | | | | | |
| Z900-4T2.2GE | | | | | | |
| Z900-4T3.7GE/5.5PE | 100 | 183 | 137.6 | 173 | 90 | 4.7 |
| Z900-4T5.5GE/7.5PE | | | | | | |
| Z900-4T7.5GE/11PE | 130 | 260 | 178 | 246.5 | 116 | 5.5 |
| Z900-4T11GE/15PE | | | | | | |
| Z900-4T15GE/18.5PE | 195 | 280 | 175 | 266 | 182.5 | 6.5 |
| Z900-4T18.5GE/22PE | | | | | | |
| Z900-4T22GE/30PE | | | | | | |
| Z900-4T30GE/37PE---Z900-4T37GE/45PE | 245 | 390 | 190 | 180 | 406 | 7 |
| Z900-4T45GE/55PE---Z900-4T55GE/75PE | 300 | 500 | 252 | 200 | 522 | 9 |
| Z900-4T75GE/90PE | 338 | 546 | 256.5 | 270 | 560 | 9 |
| Z900-4T30GE/37PE---Z900-4T37GE/45PE | 338 | 550 | 300 | 270 | 564 | 9 |
| Z900-4T30GE/37PE---Z900-4T37GE/45PE | 400 | 675 | 310 | 320 | 695 | 11 |
Application
Food machinery-Feeder, mixer, bag filling machines, pastry forming machine…
Woodworking Machinery-Polishing machine, grinding machine, carving machine…
Textile Machinery-winding machine, fabric inspection machine…
Packaging Machinery-Liquid filling machine, pharmaceutical filling machine…
Other: Stone cutting machine…
Blowing machine, Water-pump-housetop
