| Prod Model: |
S2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
0.75kw-160kw |
| Apply In: |
Heavy Load |
| Control Ways: |
Vector Control |
| Model Number: |
S2800e |
| Input Voltage: |
380-460V |
| Output Voltage: |
380-460V |
| Output Frequency: |
0-600Hz |
| Ways: |
AC-DC-AC |
| Certification: |
ISO 9001,ISO14001,Ohsas18001 & Ce |
| Warranty: |
18 Months |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
High Carrier Frequency PWM Control |
| Main Circuit Type: |
Current |
| Function: |
Heavy Load |
| Brand: |
Machtric |

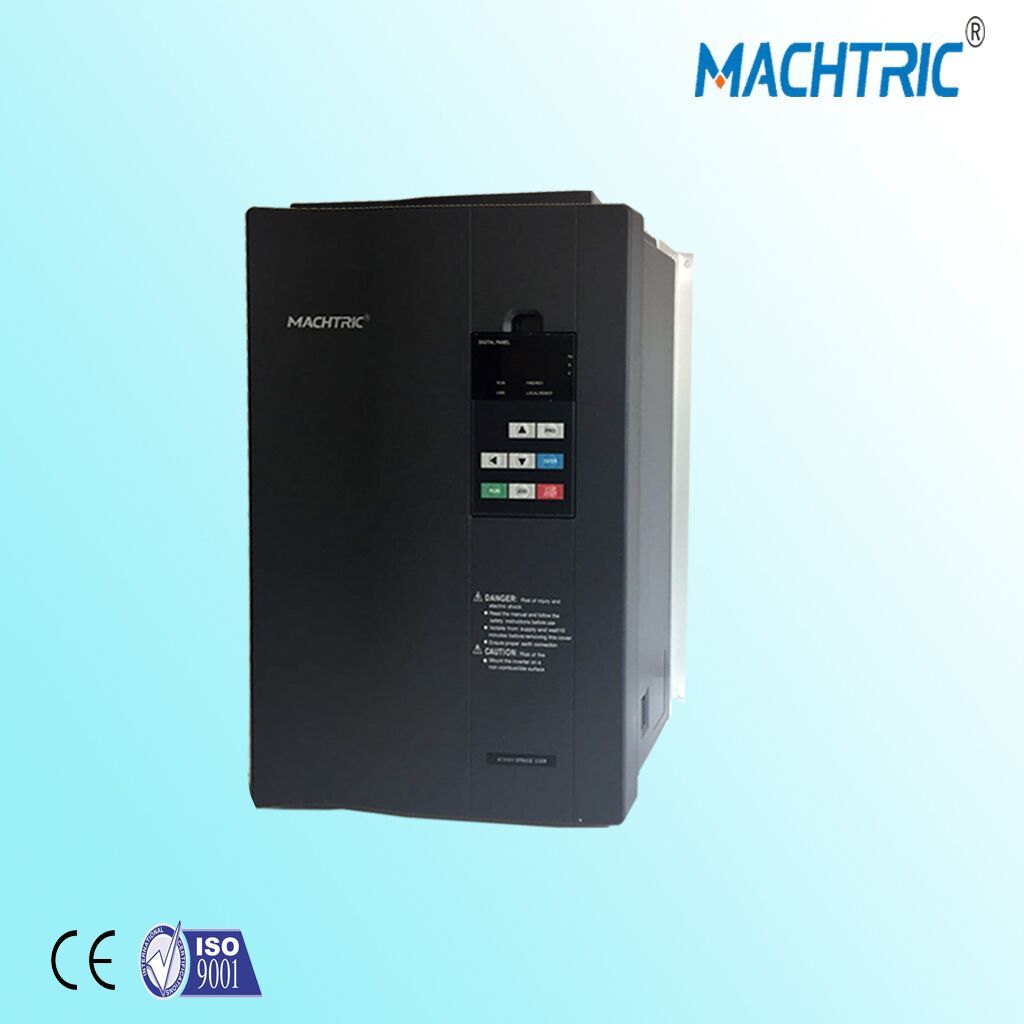

Product Description
1.Product specification
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Voltage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Technical | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector sensorless control |
| Adjustment Ratio | 1:100 with vector sensorless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector sensorless control |
| Carrier Frequency | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
2. Application-----Target market of S2800 E Inverter
Paper machinery Screw output device
Drawing Equipment Dyeing plant
Injection plastic equipment Air conditioning system
Machine tool equipment Boiler system
Chemical fiber equipment Water supply, oil transportation installation.
Textile equipment
3. Keywords:
-AC Variable Frequency inverter Ac Drives for 3 phase for electric motor drive
-Variable Frequency Ac Drives for 3 phase ac motor
-Hot sale high quality AC frequency inverter
0.75kw-160kw 220V/380V single phase/three phase
-AC motor drives variable frequency inverter
-China manufacturer variable frequency inverter 2014 brand new Machtric
-AC frequency inverter, Variable frequency drive, AC drives
-Variable Frequency Drive / Variable Speed Drive / frequency converter / AC converter
-Frequency Inverter / AC Driver / AC Drives / AC Motor Drives / VFD, VSD / transistorized drives
4. FAQ
Q: What is your payment ?
A: Our payment is by T/T. Western Union. and Money.
Q: Is there a discount on the price of your product?
A: It depends the quantity of order.
Q:Is same quality between the sample and big order?
A:Our products are always as good as the samples we send, I can promise there will be no debasement of quality.
Q:Is the price for FOB?
A:Yes.
Q: How much is your minimum order quantity?
A: one pcs or unit.
5. Specification
Model NO.Rated output power(KW)
Rated input current(A)
Rated output current(A)
Motor power (KW)
|
| 1PH/3PH AC 220V -15%~15% |
| S2800-2T0.4GE | 0.4 | 5.4 | 2.3 | 0.4 |
| S2800-2T0.75GE | 0.75 | 8.2 | 4.5 | 0.75 |
| S2800-2T1.5GE | 1.5 | 14.2 | 7 | 1.5 |
| S2800-2T2.2GE | 2.2 | 23 | 10 | 2.2 |
| S2800-2T3.7GE | 3.7 | 35 | 16 | 3.7 |
| 3PH AC 380V ±15% |
| S2800-4T0.4GE | 0.4/0.75 | 3.4/3.8 | 1.2/2.5 | 0.4/0.75 |
| S2800-4T0.75GE | 0.75/1.5 | 3.8/5.0 | 2.5/3.7 | 0.75/1.5 |
| S2800-4T1.5GE | 1.5/2.2 | 5.0/5.8 | 3.7/5.0 | 1.5/2.2 |
| S2800-4T2.2GE | 2.2/3.7 | 5.8/10.0 | 5.0/9.0 | 2.2/3.7 |
| S2800-4T3.7GE | 3.7/5.5 | 10.0/15.0 | 9.0/13.0 | 3.7/5.5 |
| S2800-4T5.5GE | 5.5/7.5 | 15.0/20.0 | 13.0/17.0 | 5.5/7.5 |
| S2800-4T7.5GE | 7.5/11 | 20.0/26.0 | 13.0/17.0 | 7.5/11 |
| S2800-4T11GE | 11/15 | 26.0/35.0 | 25.0/32.0 | 11/15 |
| S2800-4T15GE | 15/18.5 | 35.0/38.0 | 32.0/37.0 | 15/18.5 |
| S2800-4T18.5GE | 18.5/22 | 38.0/46.0 | 37.0/45.0 | 18.5/22 |
| S2800-4T22GE | 22/30 | 46.0/62.0 | 45.0/60.0 | 22/30 |
| S2800-4T30GE | 30/37 | 62.0/76.0 | 60.0/75.0 | 30/37 |
| S2800-4T37GE | 37/45 | 76.0/90.0 | 75.0/90.0 | 37/45 |
| S2800-4T45GE | 45/55 | 90.0/105.0 | 90.0/110.0 | 45/55 |
| S2800-4T55GE | 55 | 105 | 110 | 55 |
| S2800-4T75GE | 75/90 | 140.0/160.0 | 150.0/176.0 | 75/90 |
| S2800-4T90GE | 90/110 | 160.0/210.0 | 176.0/210.0 | 90/110 |
| S2800-4T110GE | 110/132 | 210.0/240.0 | 210.0/253.0 | 110/132 |
| S2800-4T132GE | 132/160 | 240.0/290.0 | 253.0/300.0 | 132/160 |
| S2800-4T160GE | 160/185 | 290.0/330.0 | 300.0/340.0 | 160/185 |
| S2800-4T185GE | 185/200 | 330.0/370.0 | 340.0/380.0 | 185/200 |
| S2800-4T200GE | 200/220 | 370.0/410.0 | 380.0/420.0 | 200/220 |
| S2800-4T220GE | 220/250 | 410.0/460.0 | 420.0/470.0 | 220/250 |
| S2800-4T250GE | 250/280 | 460.0/500.0 | 470.0/520.0 | 250/280 |
| S2800-4T280GE | 280/315 | 500.0/580.0 | 520.0/600.0 | 280/315 |
| S2800-4T315GE | 315/350 | 580.0/620.0 | 600.0/640.0 | 315/350 |
| S2800-4T350GE | 350/400 | 620.0/670.0 | 640.0/690.0 | 350/400 |
| S2800-4T400GE | 400/450 | 670.0/790.0 | 690.0/790.0 | 400/450 |
| S2800-4T450GE | 450/500 | 790.0/835.0 | 790.0/860.0 | 450/500 |
| S2800-4T500GE | 500/560 | 835.0/920.0 | 860.0/950.0 | 500/560 |
| S2800-4T560GE | 560/630 | 920.0/1050.0 | 950.0/1100.0 | 560/630 |
| S2800-4T630GE | 630/710 | 1050.0/1126.0 | 1100.0/1280.0 | 630/710 |
| S2800-4T710GE | 710/800 | 1126.0/1460.0 | 1280.0/1380.0 | 710/800 |
| S2800-4T800GE | 800/900 | 1460.0/1640.0 | 1380.0/1640.0 | 800/900 |
| S2800-4T900GE | 900/1000 | 1640.0/1800.0 | 1640.0/1720.0 | 900/1000 |
| S2800-4T1000GE | 1000 | 1800 | 1720 | 1000 |
6. Shipping way:
(1) By sea
(2) By express: DHL, UPS, FEDEX...
(3) By air
7. Payment: T/T, Western Union, Money
