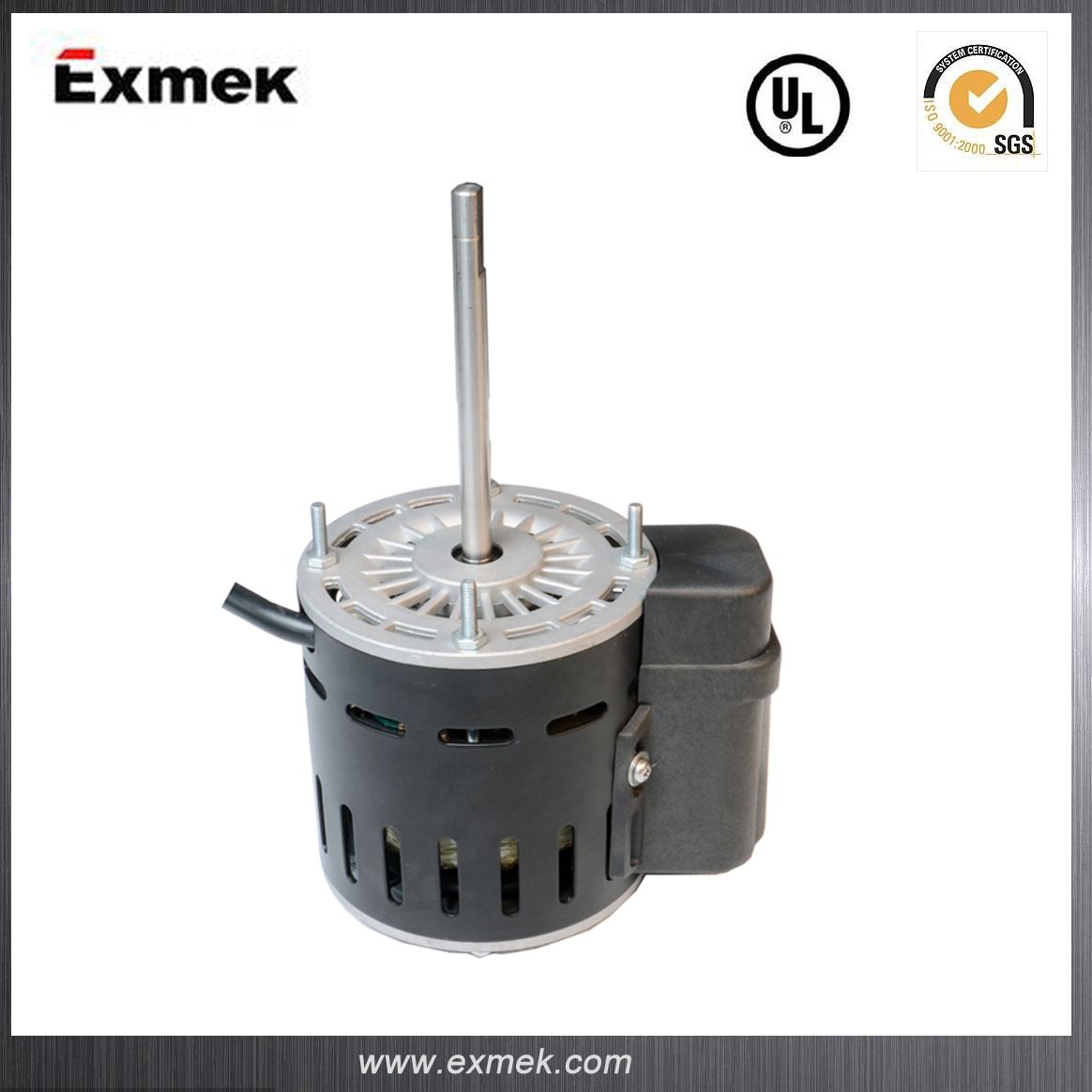

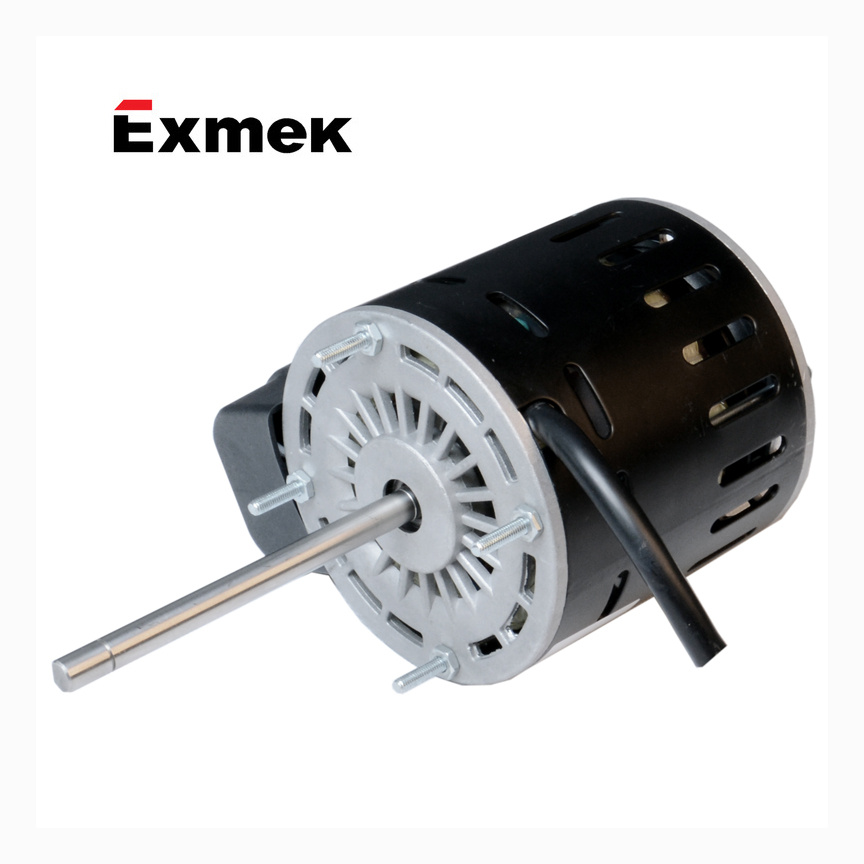

AC Electric Motor for Industrial Applications with UL Certified

Name: AC Electric Motor for Industrial Applications with UL Certified
Brand: all-electronics-online.com
SKU: 839943255
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	US $ 50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MC110DG103
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	UL/Ce
Brand:	Exmek

Product Description

General information

Different stack length is available
Voltage: 230V AC, 50Hz
High-quality lamination steel
ball bearing in both sides
Insulation class: B
Protection class: IP44
Quality approved
Guarantee: 18 months
Customized designs are available

Typical Performance@115V 60Hz(±5%)
Speed (rpm)	Current (A)	Torque (mNm)	Input Power (W)	Output Power (W)
3000	3.9	780	450	250
3200	3.6	720	410	250
3350	2.9	550	340	190
3300	2.9	180694mm test fan	340
3580	1.57	Free load	83
Typical Performance@230V 60Hz(±5%)
Speed (rpm)	Current (A)	Torque (mNm)	Input Power (W)	Output Power (W)
3000	1.65	615	370	200
3200	1.55	560	360	180
3350	1.45	420	340	145
3200	1.49	180694mm test fan	300
3580	1.15	Free load	90
Typical Performance@460V 60Hz(±5%)
Speed (rpm)	Current (A)	Torque (mNm)	Input Power (W)	Output Power (W)
3200	1.12	820	515	275
3300	1.03	700	470	240
3400	0.6	500	370	178
3350	0.72	180694mm test fan	330
3580	0.3	Free load	60

Mechanical

Packaging & Shipping
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.

Company Profile

Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group
Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd.
Exmek Electric ---Registered Brand Name
Business: Design and manufacture of motion control products and components
Highly qualified personnel
UL, CE, RoHS certification
ISO 9001, ISO 14000

Company Capabilities

Modern Motor Design and Manufacture
Part Set Design and Manufacture
Magnetic Design Software-Motorsolver
Molding
Shipping world wide

Why Exmek Electric

Open for general discussion and questions
Time to market or theatre of operations can be substantially reduced
Talented team of engineers providing innovative technical solutions
One stop "supplier" and complete sub-system
Quality products provided at competitive low cost
Ability to ship world wide
On time delivery
Training at Customer locations
Fast service on return and repair results
Many repeated customers

Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.

We are open for general discussion and questions. Contact us now!

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
