Name: AC Electric Roller Shutter Tubular Motor
Brand: all-electronics-online.com
SKU: 715267415
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 40/Set
Trade Terms:	FOB,EXW
Min Order:	10/Set
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YZ45-50M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Electric Tubular Motor
Volume:	Save Space
Protection Rate:	IP44
Insulation Class:	Class F
Noiseless:	Less Than 45dB
Working Time:	2-4min
Voltage:	Input 230VAC
Function:	Control
Number Of Stator:	Single-Phase
Brand:	Universal

Product Description

Electric Tubular Motor

About YZ45-M Series:
YZ45 series tubular motor Electric Tubular Motor are designed by international advanced technology,tubular motors built in receiver ,that we can operate roll door with remote control unit . With manual is available when the power off ,AC Electric Tubular Motors For Roller Shutter Doors with merits of Safe, Compact, Vogue, Effective and lower noise, Rolling Shutter Tubular Motors adopt electromagnetic brake system. The output torque is from 10N. M to 50N. M. It is suitable for garage door,roller blind,electricsunshade,electric cartain,projection screen ,etc.

AC Tubular Motors Advantage:Lower noise,good looking,few limit switch difference All our products are CE. TUV. ULROSH certificated.
Our Electric Motors For Roller Shutter Doors have perfect quality,Competitive price,Good after-sales services.Please feel free to contact us.

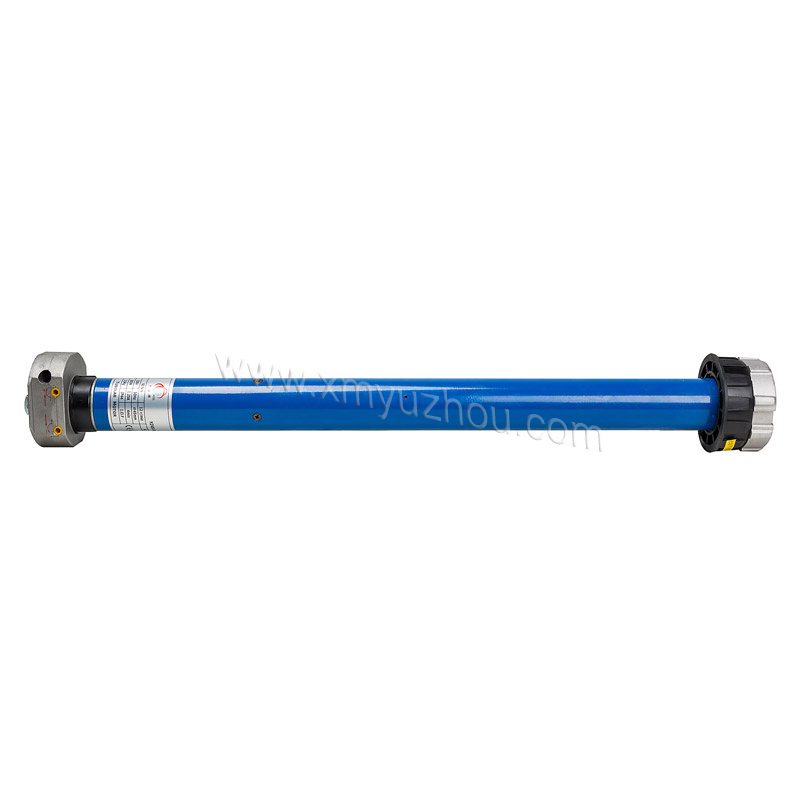

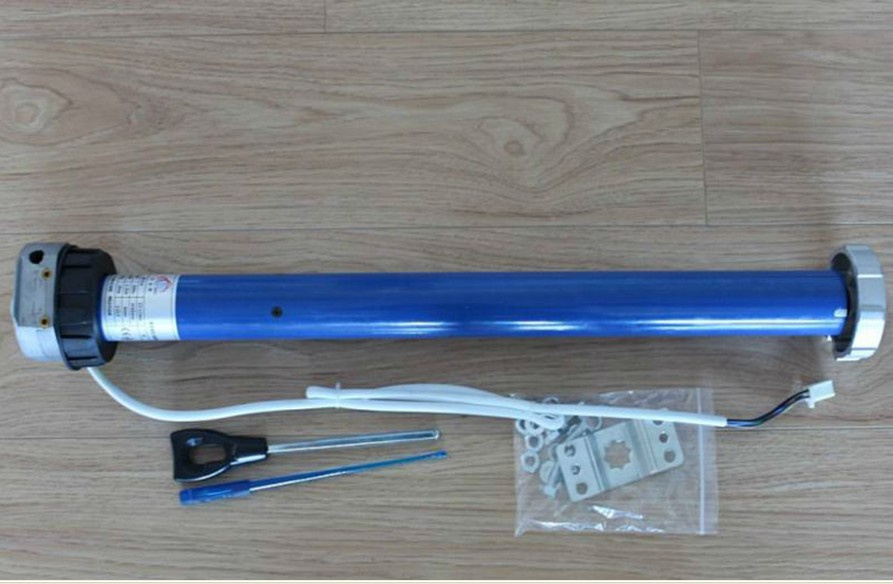

Electric Tubular Motor Picture

AC Electric Tubular Motor Package Photo

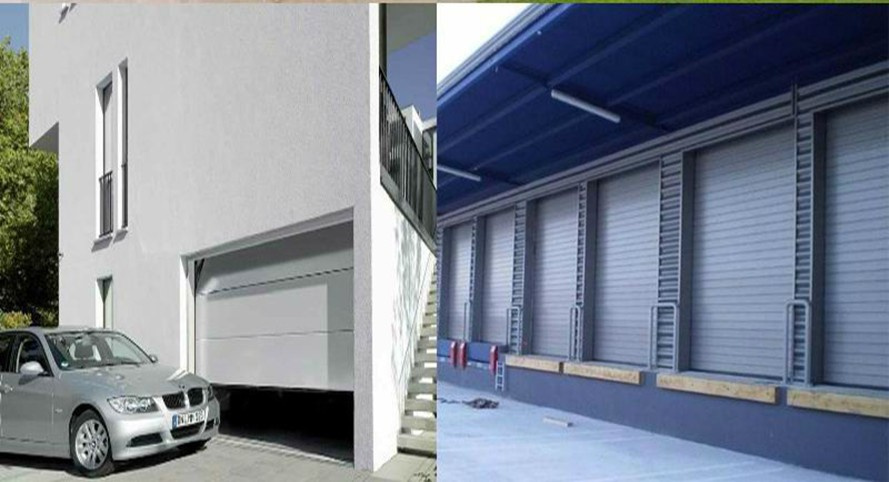

Mini Electric Tubular Motor Application

CONTACT PERSON

Ms. Ivy
Xiamen Universal Electronic Co., Ltd
No.318, South Tongji Road, Jimei District, Xiamen City, Fujian, China
Tel: +86-592-5782 488
Fax: +86-592-5664 223

Mobile: +86-186 5080 0367

Motor Model	Torque(N.m)	Rotating(rpm)	Rated Voltage(V)	Rated Frequency(Hz)	Rated Power(W)	Rated Current(A)	Number of Tums(tum)	Protection Index(IP)	Running Time(min)	Net Weight(Kg)
YZ45-10 M1	10	17	230	50	162	0.71	26	IP44	>=4	3.3-3.5
YZ45-20 M1	20	17	230	50	178	0.78	26	IP44	>=4
YZ45-30 M1	30	12	230	50	178	1.03	26	IP44	>=4
YZ45-40 M1	40	12	230	50	235	1.20	26	IP44	>=4
YZ45-50 M1	50	12	230	50	276	1.23	26	IP44	>=4

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
