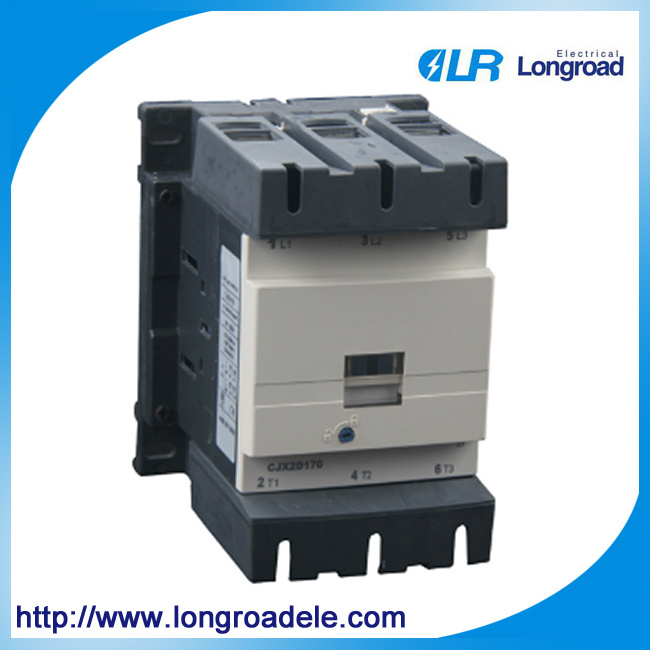

AC Electrical Contactor, 3 Phase Contactor

Name: AC Electrical Contactor, 3 Phase Contactor
Brand: all-electronics-online.com
SKU: 777911915
Availability: InStock
Rating: 5 (54 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-D170
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Electromagnetic Relay
Size:	Miniature
Rated Voltage:	660V
Rated Current:	620A

Product Description

Application
CJX2-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Type		CJX2-D115	CJX2-D150	CJX2-D170	CJX2-D205	CJX2-D245	CJX2-D300	CJX2-D410	CJX2-D475	CJX2-D620
Rated workingcurrent (A)	AC3	115	150	170	205	245	300	410	475	620
	AC4	52	60	75	85	105	117	138	147	180
Standard powerratings of 3-phase motors50/60Hz incategory AC-3	220/230V	30	40	55	63	75	100	110	147	200
	380/400V	55	75	90	110	132	160	220	265	335
	415V	59	80	100	110	132	180	220	280	375
	500V	75	90	110	129	160	200	250	355	400
	660/690V	80	100	110	129	160	220	280	355	450
Rated heat current (A)		200	250	250	275	315	400	500	700	1000
Electrical life	AC3 (x10⁴)	200	60	60	50	50	50	30	30	20
Electrical life	AC4 (x10⁴)	15	15	15	15	15	15	8	8	5
Mechanical life (x10⁴)	300	300	300	300	300	300	300	100	100	100
