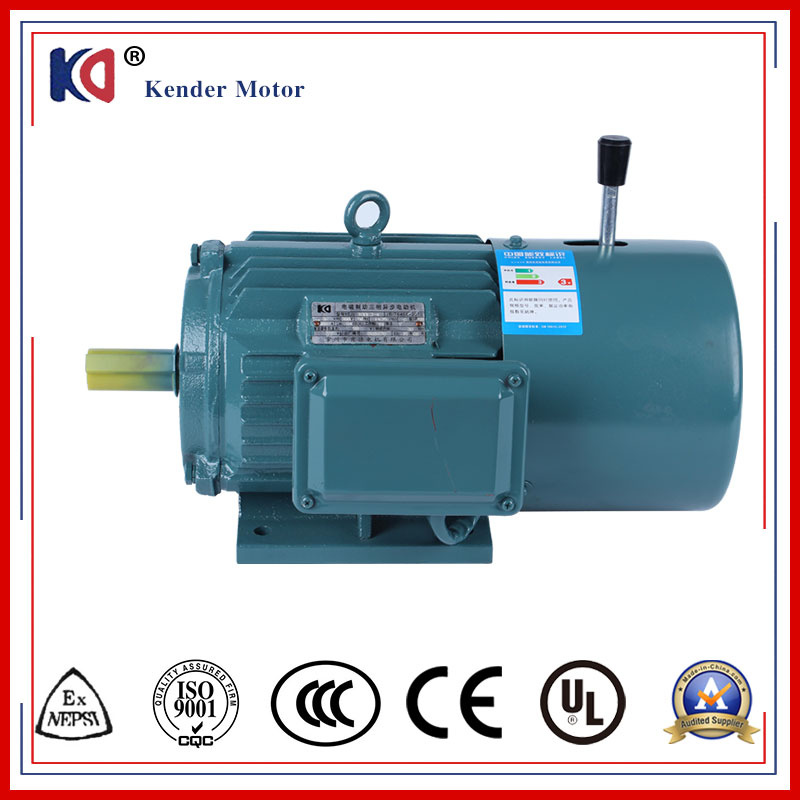

AC Electrical Phase Motor with Factory Price

Prod Model:	YEJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Yej90L-4
Power:	1.5kw
Voltage:	380V
Efficiency:	79%
Power Factor:	0.79 Cosφ
Stall /Rated Current:	6.5A
Stall /Rated Torque:	2.3 N.M
Static Braking Torque:	15n.M
No Load Brake Time:	0.2s
Exciting Power:	60W
Number Of Stator:	Three-Phase
Function:	Control
Brand:	Kd

Product Description

YEJ series makes brake disc ratable and enables motor to run freely.When the power is off,the electromagnet loses electromagnetic force.The armature is pushed by the spring and sticks to end shield of the motor immediately,the rotation is stopped therefor.

Technical parameter of AC Electrical Phase Motor with Factory Price


Rated voltage	220V/660V/380/660V/660V/1140V
Rated Frequency	50HZ/60HZ
Protection class	IP55
work mode	S1
Insulation class	B,F,H
pole	2-8
Rotor	Squirrel cage rotor

Advantage and Application of AC Electrical Phase Motor with Factory Price


Advantage	Application
1,High efficiency and torque	1,Pack-aging machinery
2,Energy saving	2,Woodworker machinery
3,Little vibration,	3,Food processing machinery
4,Low noise	4,Chemical engineering machinery
5,safe and reliable operation	5,Textile machinery
	6.Construction machinery

Technical Data of AC Electrical Phase Motor with Factory Price


Model	Power (kW)	Speed (r/min)	Voltage (380V)	Efficiency (%)	Power Factor (cos)	Stall/Rated Current (A)	Stall/Rated Torque	Max/Rated Torque	Static braking torque	No Load Brake Time	Exciting Power
									N.m	s	W
80M1-2	0.75	2830	1.81	75	0.84	6.5	2.2	2.3	7.5	0.2	50
80M2-2	1.1		2.52	77	0.86				7.5	0.2	50
90S-2	1.5	2840	3.44	78	0.85	7			15	0.2	60
90L-2	2.2		4.83	80.5	0.86				15	0.2	60
100L-2	3	2880	6.39	82	0.87				30	0.2	80
112M-2	4	2890	8.17	85.5	0.87				40	0.25	110
132S1-2	5.5	2900	11.1	85.5	0.88	7	2		75	0.25	130
132S2-2	7.5		15.02	86.2					75	0.25	130
160M1-2	11	2930	21.78	87.2	0.88				150	0.35	150
160M2-2	15		29.36	88.2				2.2	150	0.35	150
160L-2	18.5	2930	35.49	89	0.89				150	0.35	150
180M-2	22	2940	42.2	89					200	0.35	150
200L1-2	30	2950	56.9	90					300	0.45	200
200L2-2	37		69.79	90.5					300	0.45	200
225M-2	45	2970	83.96	91.5					450	0.45	200
801-4	0.55	1390	1.51	73	0.76	6	2.4	2.3	7.5	0.2	50
802-4	0.75		2.01	74.5	0.76		2.3		7.5	0.2	50
90S-4	1.1	1400	2.75	78	0.78	6.5			15	0.2	60
90L-4	1.5		3.65	79	0.79				15	0.2	60
100L1-4	2.2	1430	5.03	81	0.82	7	2.2		30	0.2	80
100L2-4	3		6.82	82.5	0.81				30	0.2	80
112M-4	4	1440	8.77	84.5	0.82				40	0.25	110
132S-4	5.5		11.64	85.5	0.84				75	0.25	130
132M-4	7.5		15.41	87	0.85				75	0.25	130
160M-4	11	1460	22.61	88	0.84				150	0.35	150
160L-4	15		30.3	88.5	0.85			2.2	150	0.35	150
180M-4	18.5	1470	35.9	91	0.86		2		200	0.35	150
180L-4	22		42.48	91.5					200	0.35	150
200L-4	30		56.82	92.2	0.87				300	0.45	200
225S-4	37	1480	70.39	91.8	0.87		1.9		450	0.45	200
225M-4	45		84.17	92.3	0.88				450	0.45	200
90S-6	0.75	940	2.25	72.5	0.7	5.5	2	2.2	15	0.2	60
90L-6	1.1		3.16	73.5	0.72	5.5			15	0.2	60
100L-6	1.5		3.97	77.5	0.74	6			30	0.2	80
112M-6	2.2		5.61	80.5	0.74				40	0.25	110
132S-6	3	960	7.23	83	0.76	6.5			75	0.25	130
132M1-6	4		9.4	84	0.77				75	0.25	130
132M2-6	5.5		12.56	85.3	0.78			2	75	0.25	130
160M-6	7.5	970	16.99	86					150	0.35	150
160L-6	11		24.63	87	0.78				150	0.35	150
180L-6	15		31.44	89.5	0.81		1.8		200	0.35	150
200L1-6	18.5		37.71	89.8	0.83				300	0.45	200
200L2-6	22		44.65	90.2	0.83				300	0.45	200
225M-6	30	980	59.45		0.85		1.7		450	0.45	200

Packing

Inspecting spare parts every processing
100% test after each process and final test before packing.



FAQ :
Q:What's the mounting size of your motor?
A:Foot mount , face mount, Flange mount ,foot cum face mount,face cum flange mount and design as customer required.

Q: Do you offer OEM service?
A: Yes.and we provide the best quality service to our customers.

Q: What is your payment term?
A: TT,  western union ,Paypal. L/C,Cash.
Q: What is your lead time?
A:About 10-45 days after receiving deposit or original L/C.the balance need to accepted before shipment.

Q: What certificate do you have?
A: We have CE, ISO9001,CCC ,EX and so on.
Q:How long the warranty?
A:one year ,but except man-made destroyed.

About Kender :

Jiangsu Kender Motor Co.,Ltd was located in Changzhou.
The company is an enterprise which specialized in Brake motor,Exe/Exde motor, Electric motor, Induction motor, YVF motor, gear motor and cycloidal reducer.
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional  knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
With keen interests in infrastructure development and engineering industries. K.D. Motors cater to the various segments of the industry with its wide product range from 0.12 KW to 45KW motors best suited for industrial applications.
Wish our sincere cooperation for a better future.

Why you choose us:
Quality Assured
These 3 phase motors adhere to the latest European mechanical and electrical standards to ensure safe operation for the life of the product. Our range of motors can rotate at speeds of up to 3000 RPM and we offer a variety of options for mounting. Water and dust tight cooling fans mean the operating conditions can be preserved inside the unit in most working environments.
3 Phase Motors - Options
Additionally we are able to offer custom modifications to three phase motors which help tailor the equipment you choose to your specific needs. For a full list of these features, select a motor from this section. For any further information, feel free to contact us.

Our services
1. Free maintenance within 12 months guarantee.
2. Professional research and development  team.
3. Technical support for installation.
4. Strict quality control system.
5. Customize production. packed in carton box accroding to the wheel size,different wheel size needs different plywood case.
