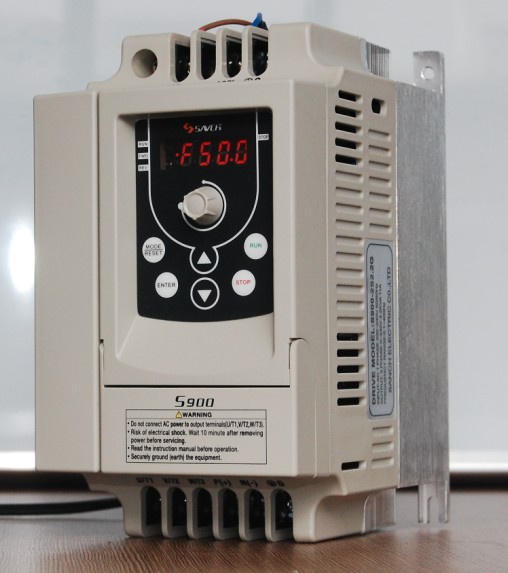

AC Frequency Inverter Same as FUJI

Prod Model:	S900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Small Size
Operate:	Easy Operation
Power Range:	0.2-3.7kw
Warranty:	12month
Color:	White
Application:	General Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Sanch

Product Description

OEM for FUJI FVR-micro series
Frequency inverter can be used in fan and pump
Punctual delivery with CE certification
1. Our products quality position is located in the middle of the market. The main competitors like Mitsubishi, Toshiba, LS(LG), Delta, Teco. But our price is much competitive compared most of them. Actually. Our product is easy to replace Delta products because the same parameter in some series AC drive.

2. Our advantage is international quality products. We are professional manufacturer, panel builder and total solution supplier. All our products is designed by ourselves both software and hardware. So we have good ability to design the new products according to customer special requirement.

4. The defective goods or parts is not required to sent back factory, each defective is required to take the picture and notify the phenomenon, location of the fault, and the specific defective material, the serial number (bar code )of the defective goods. It is much cost saving for both us.

S900 Series Transducer
Applicable Industry

Food processing:
Dumpling making machine, food processing mixer, noodle machine;
Wood working machinery:
Side woodworking thickness planer, woodcarving/woodworking machine, simple wood-cutting machine, paint spraying machine;
Paper making /textile machinery:
Circular weaving machine, flat knitting machine, ribbon loom, printing machine, industrial sewing machine, knitting machine;
Fan/pump equipment:
Air conditioning system, wastewater treatment/constant pressure water supply system, water spraying /irrigation pump, compressor;
Conveying and delivering machinery:
Belt conveyor, automatic door, pull coil type iron door, dumb waiter, crown block X-Y axle;
Machine tool /metal working machine:
Grinding machine, drilling machine, small milling machine, machinery arms of injection molding machine(squeeze);
Others:
Industrial washing machine, grinder, running machine, feeding machine, iron, car washer, packing machine.

Characteristics of the function
Upper frequency limit/lower frequency limit set:
To prevent misoperation of field staff from leading to damages such as overheat or machinery depreciation due to low/ high running frequency.
Selecting function of electronic thermoelectric relay:
To set electronic thermoelectric relay to prevent self-cooling motor from overheating while running and to restrain allowable output power of communication motor driver.
Operation function without tripping:
Current control functions (to prevent speed reduction) can be used to achieve operation without tripping
Frequency set knob:
Standard frequency set knob can be configured to adjust frequency simply.
Intelligent pendulum frequency function:
It is suitable to textile and chemical fiber industry and the occasions requiring transferring and winding.
Cooling fun control function:
Constant operation/halt after the machine stops for a minuter/running with the transducer/stop action

Option function.
Automatic energy saving:
To further realize energy saving under the function of fans and pumps.
Automatic program running function:
Traditional control circuits like relay, switches and timer can be substituted
Automatic torque ascending function:
Powerful running can be achieved when the torque achieves rated torque of 150% in 5Hz
Slip compensation control function:
Stable operation can be achieved for overload changes.
