AC Hpvfd Frequency Inverter

Name: AC Hpvfd Frequency Inverter
Brand: all-electronics-online.com
SKU: 677567132
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	US $ 65-100000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HPVFD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Shanghai
Brand Name:	Hapn
Working Voltage:	240V~480V
Working Power:	0.4-11kw
Working Current:	1~55A
Model Number:	Hpvfe
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage

Product Description

HPVFD series is a high quality series, and suitable for the industrial engineering and commercial engineering field, through a unique current vector control, and the motor has excellent control characteristic, which suitable for all kinds of mechanical load. Saving a space narrow design is very suitable for enclosure installation with several pieces . It can be easily and quickly installed,connected and debugged, through the English prompt interface. HPVFD series has passed the CE EMC certification.

Technical Features
VTC current vector control algorithm can reach to high start torque and low speed stable torque.
1)HPVFD has combines the rich industrial application functions, so that it can realize all kinds of field
control requirements.
2)To design,test and produce converters in strict accordance with international standard, it is designed
better in heat dissipation carrying capacity and electromagnetic compatibility.
3) It provides Multi-Functional 8 period of digital input, 2 road analog input , 2 road relay output and 2
road open collector output.
4) All this configuration is RS485 serial communication interface. Products are using the standard
Modbus communication protocol, and it is built-in input filter in 18.5-560KW.
5) HPVFD series are provincial new products ,its functions of energy-saving operation and automatic
current limiting function can ensure normal operation.
6) It is convenient to handle by LED and LCD interface, meanwhile, it is easy to debug with panel
parameter copy function.
7) With flame retardant and high reliable main loop connection mode, all series products ensure its
safety.

Application Industry

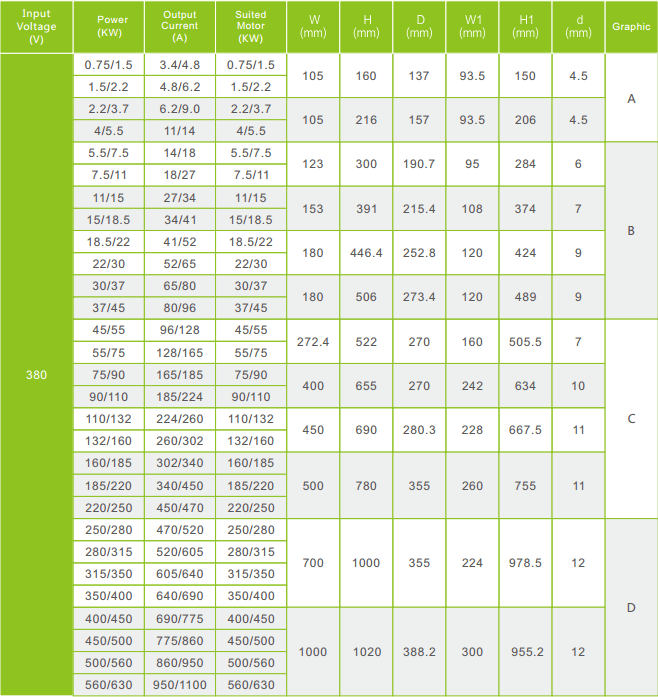

Technical Specifications

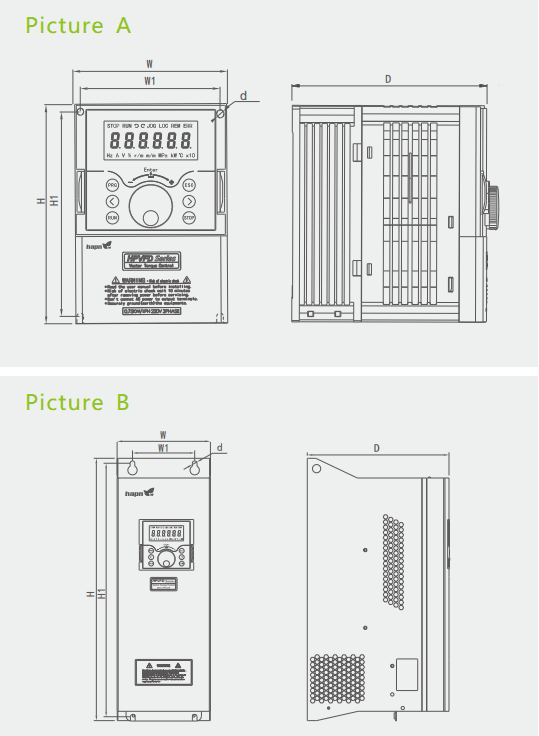

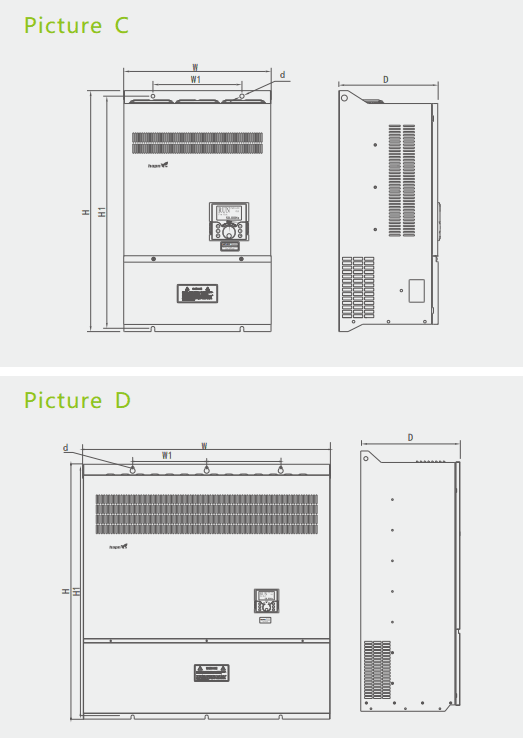

Product Structure

China Hpan Electric Co., Ltd. Was established in 1991. Solcom&Hapn (Shanghai) Electric Co., Ltd., as a subsidiary

Company of Hapn China Electric, specializing in high tech R&D and production, located in Shanghai, China. The company follows the ideas of "Development Driven by Science&Technology", insists on synchronized developing with the world advanced energy saving technology and aiming at designing and developing high-tech products unceasingly. Hapn company has grown to be a modern technologies enterprise that is integrated with R&D, production, trading, marketing and information technology, and developed multiple high quality products with state of the art technology covering medium voltage soft starter, low voltage soft starter, medium and low voltage frequency inverter, medium voltage permanent magnetic vacuum circuit breaker and medium voltage permanent magnetic vacuum contactor, etc.

Hapn brand products have been applied widely to many national key engineering projects and oil&gas and mining industry applications at home and abroad such as the Three Gorges Hydropower Engineering, 2008 Beijing Olympics Game Facilities, 2010 Shanghai Expo Facilities, Sinopec, PetroChina, Russia Rosneft Oil, Russia Luk Oil Co., Ltd., Iran Tehran Refinery, Kazakstan Kumkol Oil Resources Company and Vietnam Xizhan Coal Mine, etc., providing comprehensive green energy saving automation technical support for industries and power supply fields.
