AC Hv Disconnect Switch for Outdoor

Name: AC Hv Disconnect Switch for Outdoor
Brand: all-electronics-online.com
SKU: 825828555
Availability: InStock
Rating: 4.9 (106 reviews)

Price:	US $ 2-200/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN30-12
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	ISO
Brand:	Haivol

Product Description

Specifications

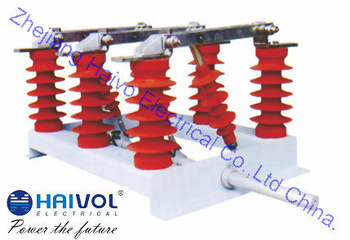

AC HV Disconnect Switch
1.rated voltage :12kV
2.three-phase AC 50/60Hz

AC HV Disconnect Switch
•summary:
1.GN30-12(D) disconnec t switch is an indoor electric apparatus of rated voltage 12kV, three-phase AC50/60Hz
2.It is used to make break and transfer current for HV ele ctric apparatus under situations with voltage and no-load
3.The switch appl ies rotary moving contact which is mounted on the switchgear easi ly.
4.It adopts wal l through instal lation as well.
•specification:

Data		GN30-12/400-12.5	GN30-12/630-20		GN30-12/1000-31.5	GN30-12/1250-31.5	GN30-12/(1600-3150)-40
		GN30-12D/400-12.5	GN30-12D/630-20		GN30-12D/1000-31.5	GN30-12D/1250-31.5	GN30-12D/(1600-3150)-40
Rated voltage(kv)		12
Rated current(A)		400	630		4	1250	1600-3150
Rated short-time withstand current(KA)		12.5	20		1000	31.5	50
Rated peak withstand current(kA)					31.5
Rated short-circuit duration(s)		31.5	50		80	80	100
Rated insulating level	1min.PF withstand voltage(kv)			Phase to phase /to earth:42,across open contacts:49
	Lightning impulse withstand voltage(kv)			Phase to phase/to earth:75,across open contacts:85

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

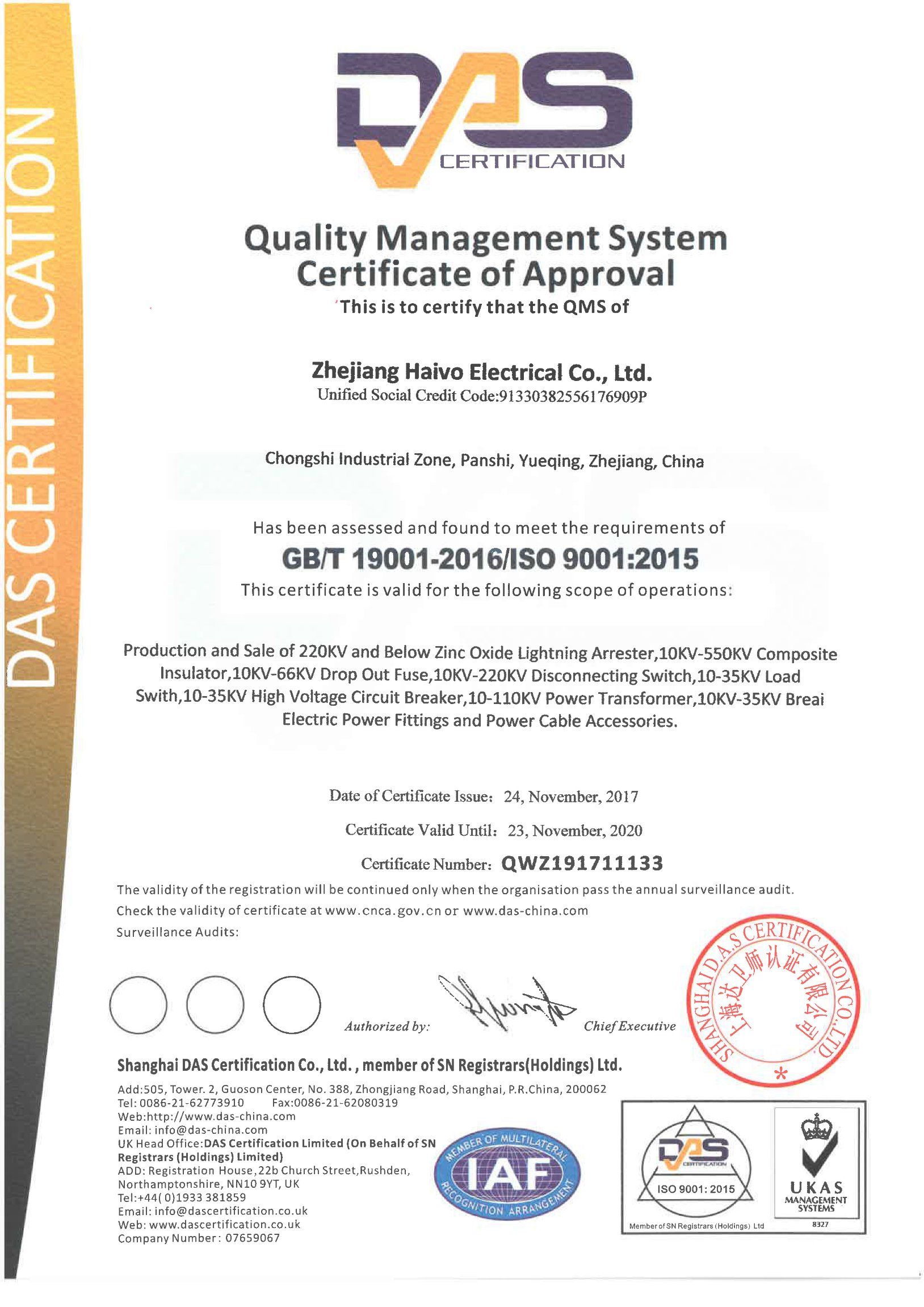

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
