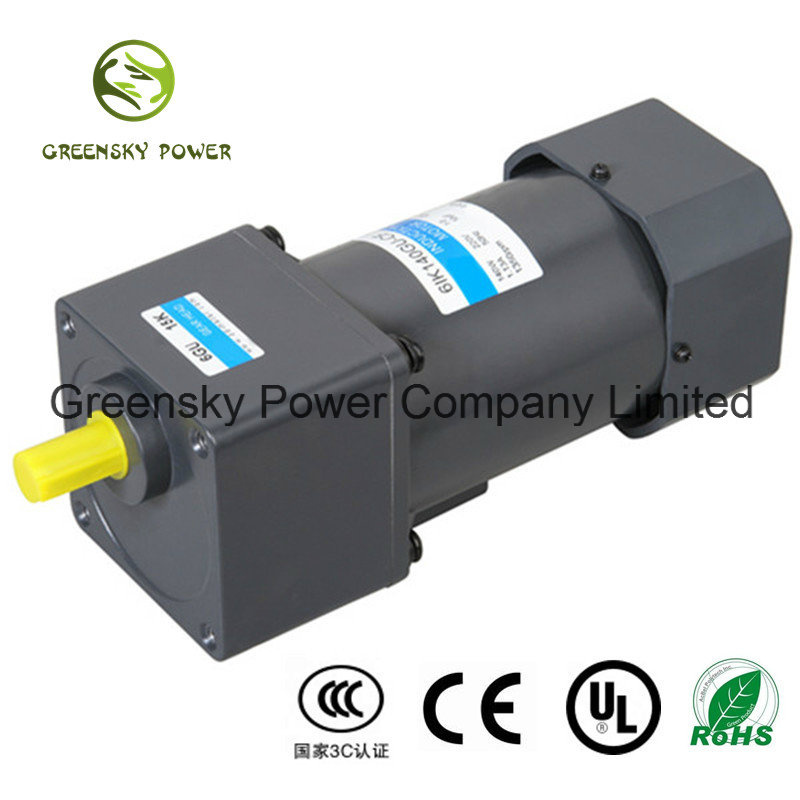

AC Induction for Barbecue Usage 180W 104mm Gear Motor with Gearbox

Name: AC Induction for Barbecue Usage 180W 104mm Gear Motor with Gearbox
Brand: all-electronics-online.com
SKU: 693331022
Availability: InStock
Rating: 4.4 (64 reviews)

Price:	US $ 47.1-48/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	6IK180GU-AF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Power:	180W
Voltage:	220~230V/110V
Frequency:	50/60Hz
Rated Torque:	1385mm.M
Function:	Control
Number Of Stator:	Single-Phase
Brand:	GS
Certification:	UL\CE\RoHS

Product Description

Introduction
Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.

Specifications
1. Dimensions of device: Dia104mm
2. Rated Power: 180W
3. Voltage: 220V-230V
4. CCC, CE, UL, CU
5. Can be customized

Greensky's advantage
On the site you can find a range of renewable products including ac/dc motor, ac induction motor, reversible motor, blake motor, speed motor, ac angel motor, gear motor, planetary gear box, worm gear box and their relevant components.

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type	Terminal Box Type
6IK180GU-AF (6IK180A-AF)	6IK180GU-AFT (6IK180A-AFT)	180	1ph100	50	3.20	900	1385	1250	45.0
				60	3.50		1120	1550
6IK180GU-EF (6IK180A-EF)	6IK180GU-EFT (6IK180A-EFT)	180	1ph110	60	2.75	850	1120	1550	35.0
			1ph120		2.65
6IK180GU-CF (6IK180A-CF)	6IK180GU-CFT (6IK180A-CFT)	180	1ph220	50	1.40	1100	1385	1250	12.0
			1ph230
6IK180GU-HF (6IK180A-HF)	6IK180GU-HFT (6IK180A-HFT)	180	1ph220	60	1.40	1000	1120	1550
			1ph230
6IK180GU-SF (6IK180A-SF)	6IK180GU-SFT (6IK180A-SFT)	180	3ph220	50	1.20	3400	1385	1250	_
				60	1.00	2700	1120	1550
