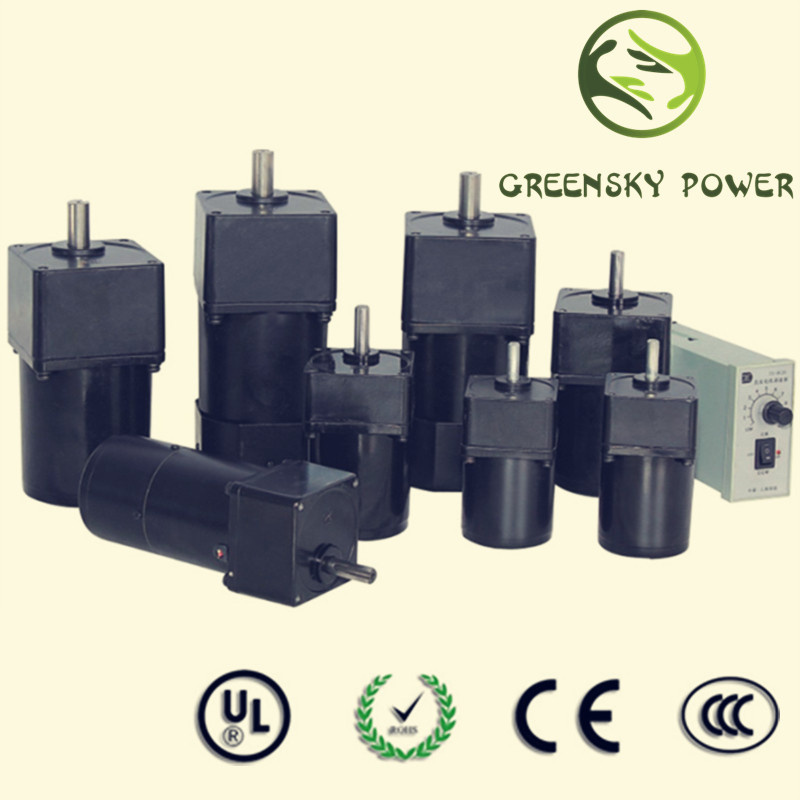

AC Induction Geared Electric Motor (5IK40GN-H)

Name: AC Induction Geared Electric Motor (5IK40GN-H)
Brand: all-electronics-online.com
SKU: 743558965
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	US $ 1-52.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	5IK40GN-H (5IK40A-H)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe
All Technical Data:	Can Be Customized
Function:	Control
Number Of Stator:	Three-Phase
Brand:	GS
Certification:	UL / CE / SGS

Product Description

AC induction geared electric motor (5IK40GN-H)

Introduction
Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.

Specification
1. Dimensions of device: 90mm
2. Rated Power: 40W
3. Voltage: 110/120/220/230V
4. CCC, CE, UL, CU
5. Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension...

Greensky's Advantage
On the site you can find a range of renewable products including ac/dc motor, induction motor, reversible motor, brake motor, speed control motor, ac angel motor, gear motor, planetary gearbox, worm gearbox and their relevant components.

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type	Terminal Box Type
5IK40GN-A (5IK40A-A)	5IK40GN-AT (5IK40A-AT)	40	1ph100	50	0.65	220	315	1250	12.0
				60	0.70		260	1550
5IK40GN-E (5IK40A-E)	5IK40GN-ET (5IK40A-ET)	40	1ph110	60	0.55	220	260	1550	8.0
			1ph120		0.60
5IK40GN-C (5IK40A-C)	5IK40GN-CT (5IK40A-CT)	40	1ph220	50	0.35	220	315	1250	2.5
			1ph230		0.40
5IK40GN-H (5IK40A-H)	5IK40GN-HT (5IK40A-HT)	40	1ph220	60	0.35	220	260	1550
			1ph230		0.40
5IK40GN-S (5IK40A-S)	5IK40GN-ST (5IK40A-ST)	40	3ph220	50	0.30	800	315	1250	_
				60	0.25	660	250	1550
