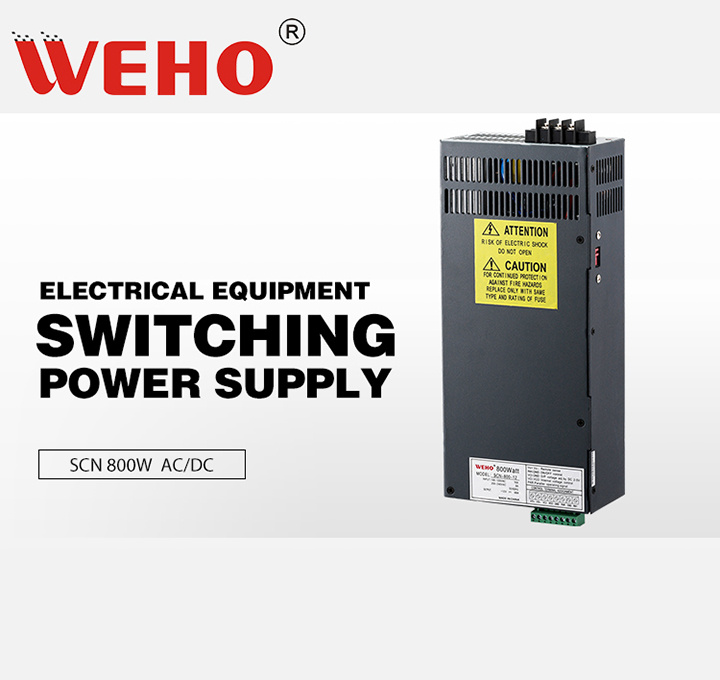

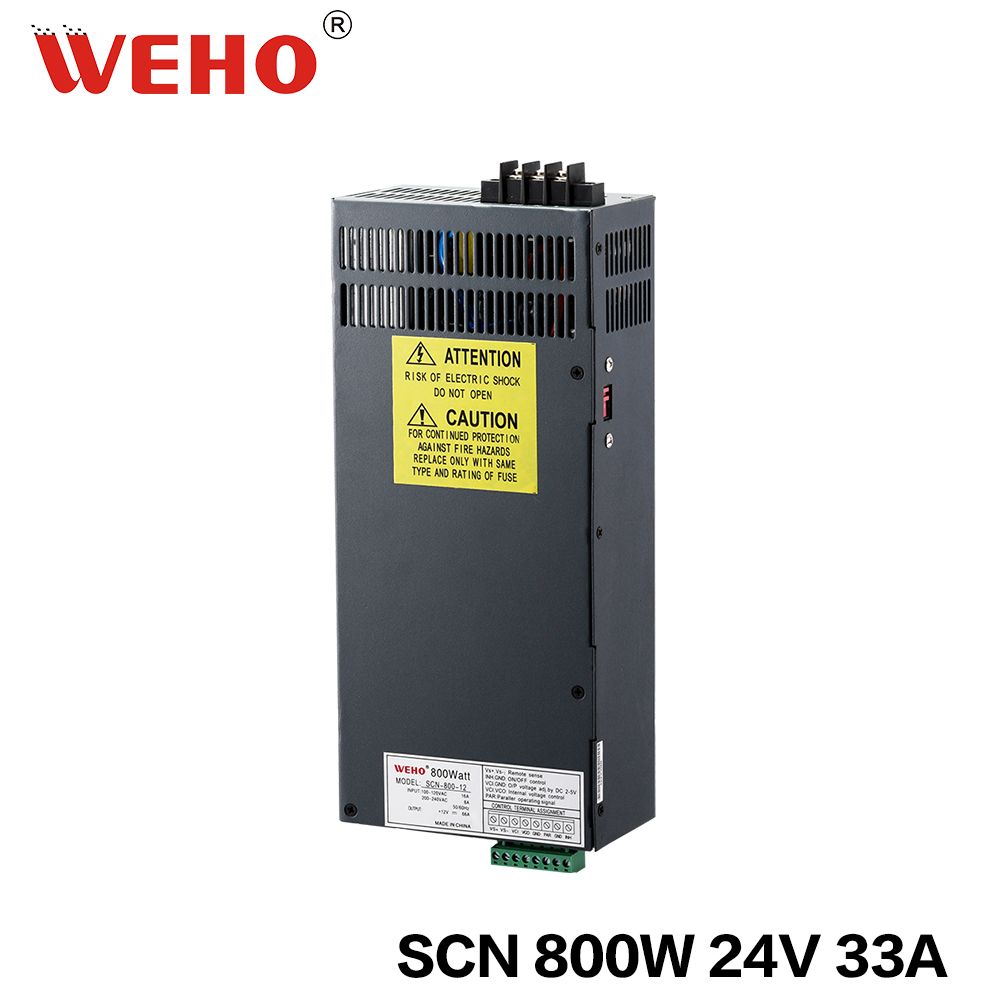

AC Input 110V /220V to 24V DC 800W Power Supply

Name: AC Input 110V /220V to 24V DC 800W Power Supply
Brand: all-electronics-online.com
SKU: 832525805
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 104-130/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCN-800-24
Output Current:	33A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	2.3kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Output Power:	800W
Input Voltage:	110V/220V
Brand:	Weho

Product Description

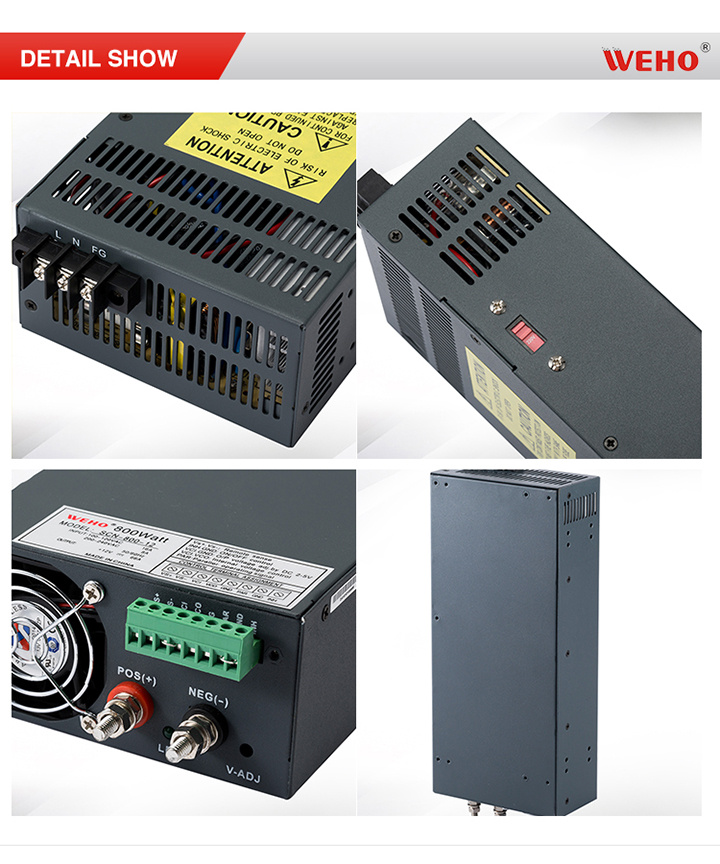

800W 24V in parallel switching power supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Specifications:

MODEL		SCN-800-12	SCN-800-15	SCN-800-24	SCN-800-48
OUTPUT	DC Voltage	12V	15V	24V	48V
	Voltage Tolerance	±1%	±1%	±1%	±1%
	Rated Current	66A	54A	33A	16.6A
	Current Range	0-66A	0-54A	0-33A	0-16.6A
	Rated Power	800W	800W	800W	800W
	Ripple & Noise	150mVp-p	150mVp-p	240mVp-p	480mVp-p
	DC Adjustment Range	±5%; Can adjust from 40%~100% output voltage by external control 2-5V
	Setup, Rise, Hold Time	800ms, 50ms, 16ms at full load
INPUT	Voltage Range	90~130VAC / 180~260 VAC47~63 Hz;selected by switch260~370VDC
	AC Current	13A/115 VAC 8.0A/ 230 VAC
	Efficiency	80%	81%	85%	87%
	Inrush Current	60A/230V
	Leakage Current	3.5 mA/240VAC
PROTECTION	Over Load	110%~135%
		Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover
	Over Voltage	110%~135%
		Protection type: Shut down o/p voltage, re-power on to recover
	Over Temp	TSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover
ENVIRONMENT	Working Temp., Humidity	-10°C~+65°C,20%~90 %RH
	Storage Temp., Humidity	-20°C~+85°C,10%~95 %RH
	Vibration	10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P, I/P-FG:1500VAC
	Isolation Resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL1950,CSA22.2,IEC60950
	EMC Standard	Design refer to FCC Part 15 Class A
OTHERS	Weight	2.3Kg;
	Packing	8pcs/24.0kg/CARTON
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
	3.Tolerance: includes set up tolerance, line regulation and load regulation.
	4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

Our Workshop:

Packaging:

Exhibition:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
