AC Input Adjustable DC 120W 12V Power Supply

Name: AC Input Adjustable DC 120W 12V Power Supply
Brand: all-electronics-online.com
SKU: 831762385
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	US $ 7.2-10.4/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-120-12
Output Current:	10A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.6kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

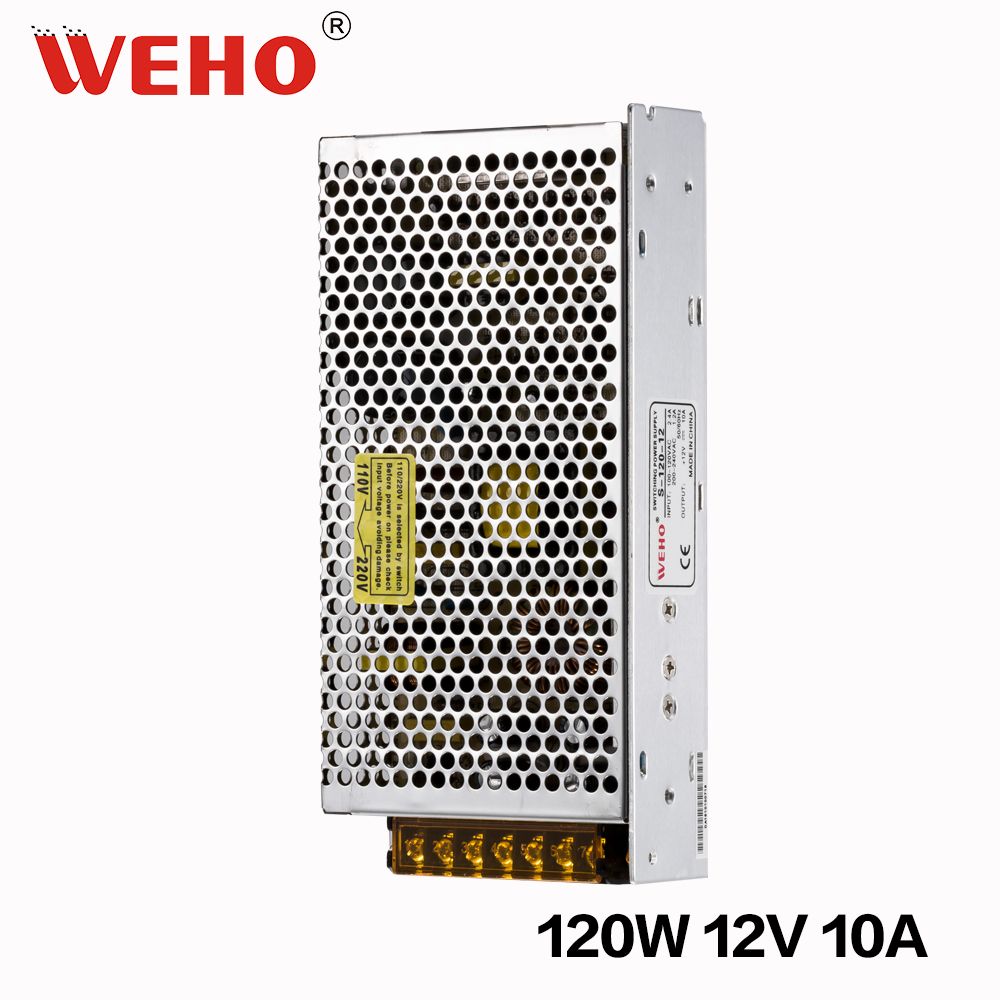

120W 12V DC Switching Power Supply

Features:

1. DC Output 12v 24v 48v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model	S-120-5	S-120-12	S-120-15	S-120-24
DC output voltage	5V	12V	15V	24V
Output voltage tolerance	±2%	±1%	±1%	±1%
Rated output current	24A	10A	8A	5A
Output current range	0-24A	0-10A	0-8A	0-5A
Ripple and noise	50mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.3%	±0.2%
Load stability	±1%	±0.5%	±0.3%	±0.2%
DC output power	120W	120W	120W	120W
Efficiency	79%	84%	85%	85%
Output voltage adjustment range	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~265VAC/47~63VAC,120~370VDC
Input current	0.6A/115V 0.35A/230V
AC impulse current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.75mA/240VAC
Overload protection	105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery
Over-voltage protection	115%~135% rated output power
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95%RH
Overall dimension	1999838mm / 30pcs per carton
Weight	0.6Kgs

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
