AC Input Full Range Sc-120W 12V PSU with Battery Charger

Name: AC Input Full Range Sc-120W 12V PSU with Battery Charger
Brand: all-electronics-online.com
SKU: 832031635
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	US $ 11-14/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC-120-12
Output Current:	8A/0.5A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.56kg
MOQ:	1-5PCS
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

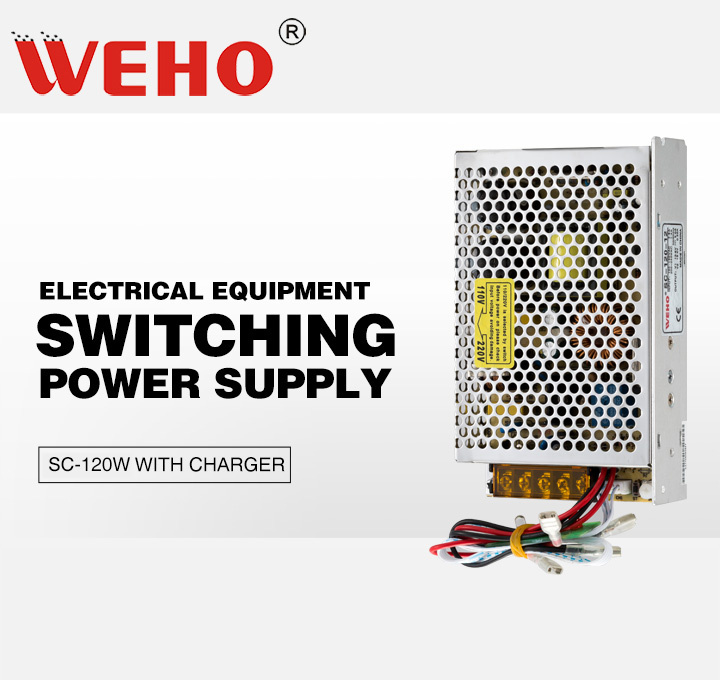

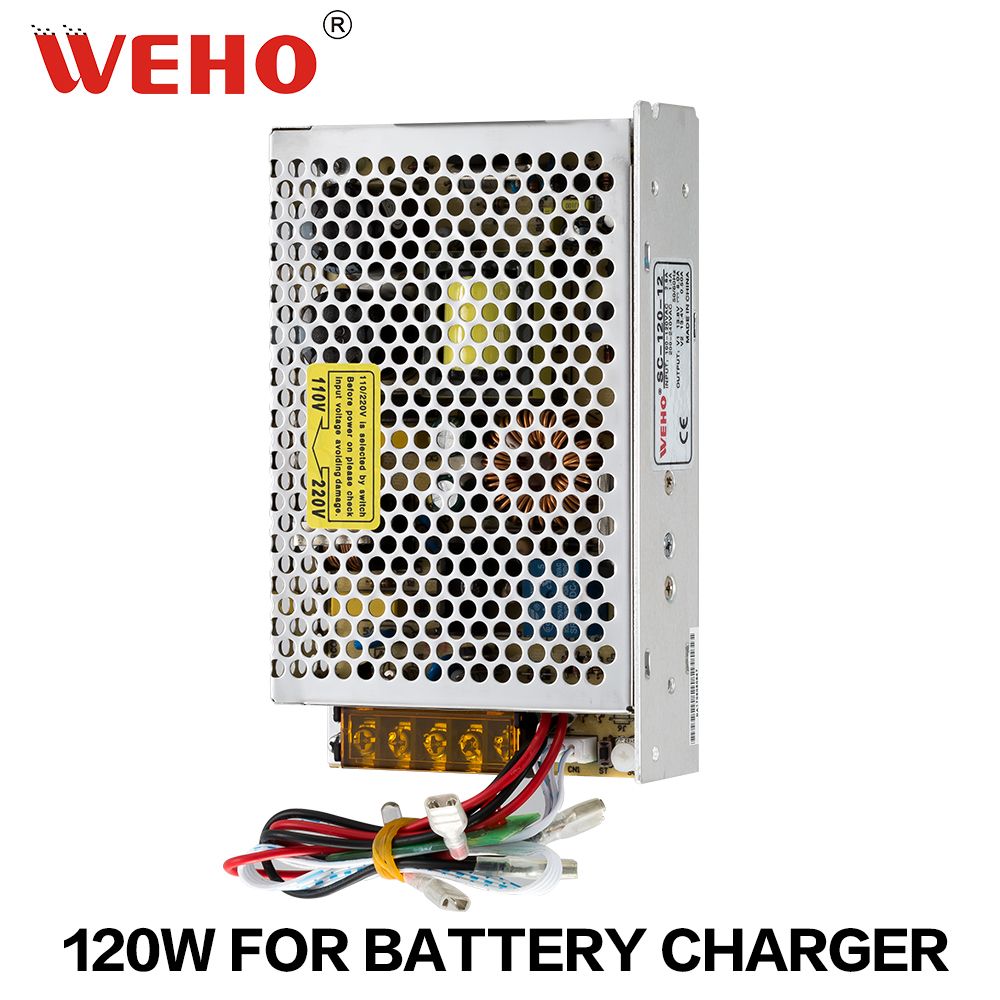

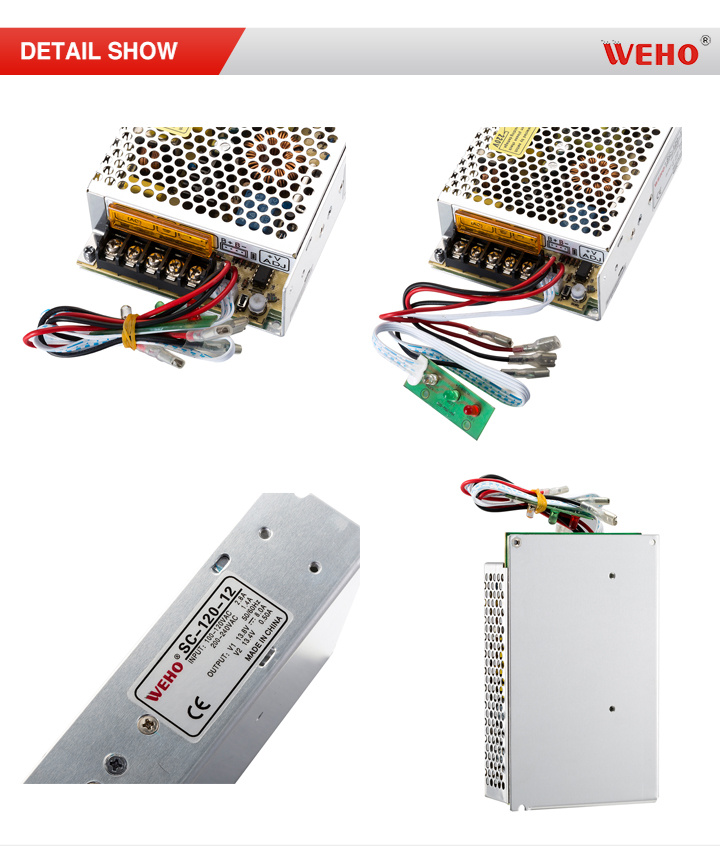

120W 12V Power Supply with Battery Charger

Features:

1. AC input Full Range 85~264V / UPS

2. Battery Protection at Low Voltage

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model	SC-120-12		SC-120-24
	CH1:13.8V	CH1:13.4V	CH1:27.6V	CH2:26.5V
	±1%	-----	±1%	-----
	8A	0.5A	4A	0.3A
output	0~8A	-----	0~4A	-----
	117.1W		118.4W
	120mvp-p	-----	180mvp-p	-----
	CH1:11.3~14.9V		CH1:21.3~29.8V
	90~264VAC,127~370VDC
	47~63HZ
input	2.8A/115VAC,1.4A/230VAC
	81%		83%
	Cold start current 30A/115VAC,50A/230VAC
	< 1mA/240VAC
	Rated output power110%~150% start over load protection
protection	protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
	9.5~11V		20~22V
	protection mode:cutoff output
Function	long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% , cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,
	cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs
environment	-10ºC~+60ºC,20%~90%RH
	-20ºC~+85ºC,10%~95%RH non-condensing
	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC
Fitstandard	Compliance to UL60950-1,EN60950-2006
	Compliance to EN55022,CLASSB
others	1599738mm(LWH)
	0.56kg/45pcs/26kg/0.041m³/1.45CUFT
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25ºC of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
