| Prod Model: |
JCM1 |
| Rated Current: |
63A,100A,160A,250A,400A,630A,800A,1000A,1250A,1600 |
| Rated Voltage: |
230V, 400V |
| Rated Insulation Voltage: |
400,500,690V |
| Pole: |
2pole, 3pole, 4pole |
| Breaking: |
Low, Medium, High |
| Standard: |
IEC60947-2 |
| Main Market: |
Africa, Europe, Asia |
| Warranty: |
2months |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCCB |
| Certification: |
SGS |
| Operation: |
Manual & Electric |
| Installation: |
Fixed, Insert |
| Poles Number: |
2p/3p4p |
| Function: |
Over-Current, Short-Circuit, and Under Voltage |
Product Description
AC JCM1 Electric Moulded Case Circuit Breaker 1A~1600A (MCCB)
Moulded case circuit breaker Application:CM1 Series Moulded case circuit breaker is a new type product developed and manufactured by adopting international advanced technology.It is rated current up to 1600A. It is with protection of Over-current, short-circuit, and under voltage, it is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standards.Moulded case circuit breaker Model optional:
| 1: Joymell Model |
| 2: Current Frame. Inm=63, Inm=100, Inm=160, Inm=225, Inm=400, Inm=630, Inm=800, Inm=1250, Inm=2000 |
| 3: Breaking capacity. L-Low. M-Medium. H-High. |
| 4: Operation type. P-Motor operation. Z-Turn by handle operation |
| 5: Poles. 2-2Pole. 3-3Pole. 4-4Pole |
| 6: Release type, and inside accessories type. 2-Only electromagnetics. 3-Thermo electromagnetic (double)) |
| 7: Application. NA-For distributing. 2-Motor protection. 3-Other |
8: For 4Pole products.
A-N Pole not install release, N always connected, not breaking with other 3poles.
B-N Pole not install release, but N pole breaking with other 3poles.
C-N pole installed with release, and always breaking with other 3poles.
D- N pole installed with release, and never breaking with other 3poles. |
| 9: Install before board. Install behind board. Plug-in install. Other type install. |
| 10: Other accessories: Interlock etc. |
Moulded case circuit breaker Working Conditions: 1. The ambient air temperature. -10 °C~+40 °C; 24h average does not exceed +35 °C
2. Altitude : Installation site altitude does not exceed 2000m
3. Relative humidity not over 95%, will impacted by humidity.
4. Pollution III grade, will impacted by salt-fog, oil mist.
5. Will impacted by Mildew
6. Max inclination ±22.5%

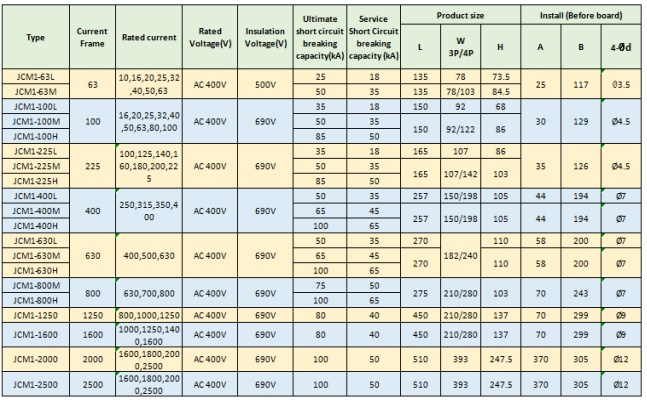

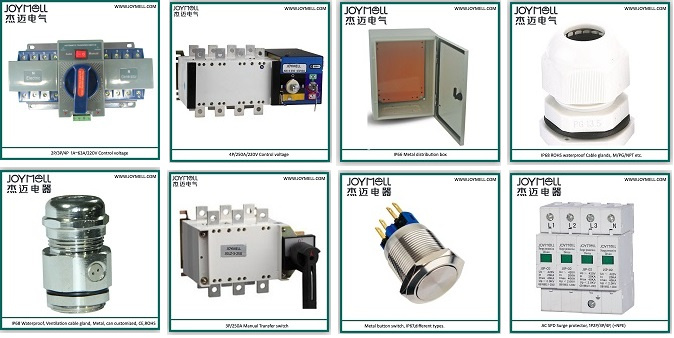

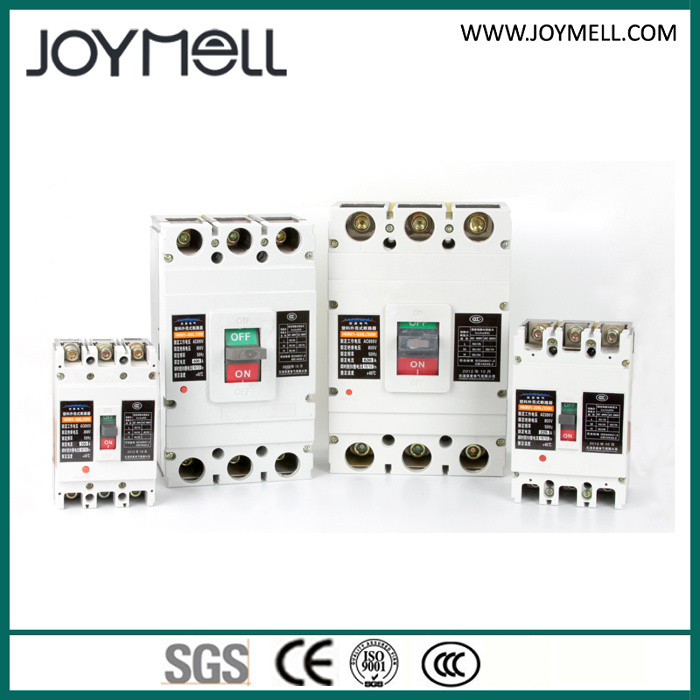

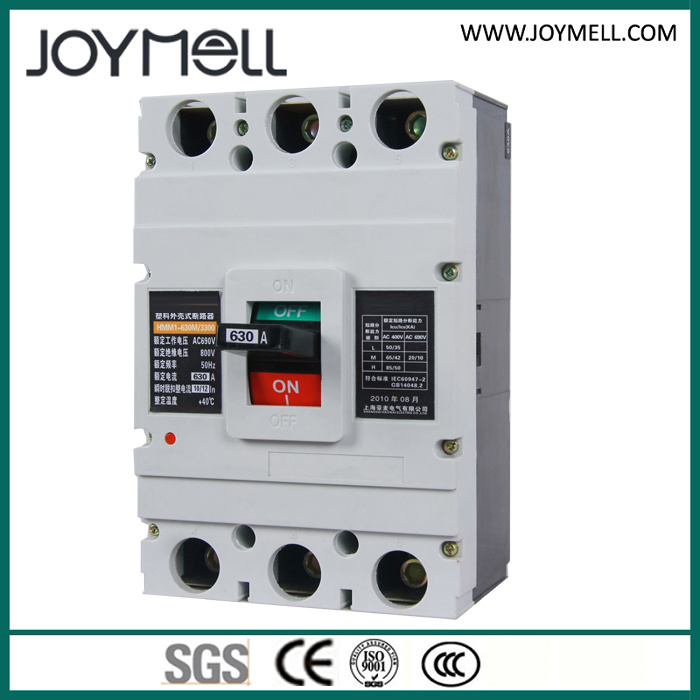

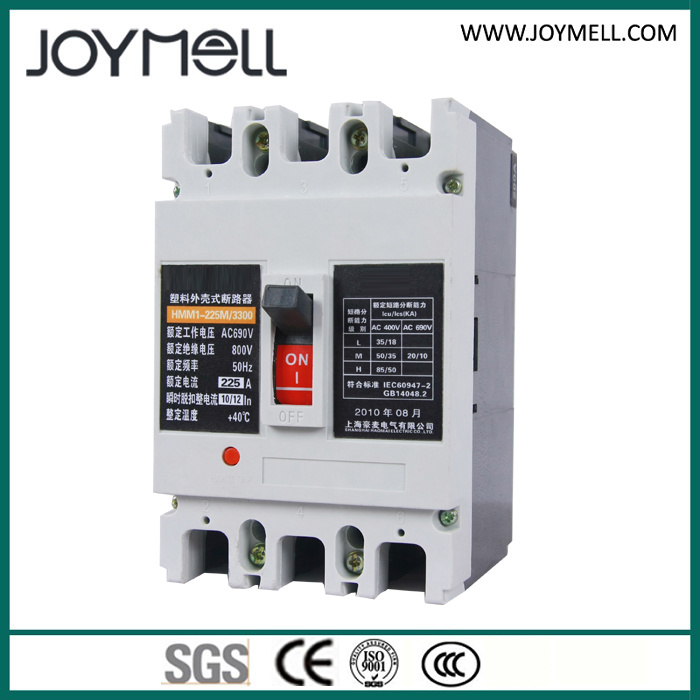

7. When normal vessel shake, earth-quake(4g) can work normallyMoulded case circuit breaker Specification: Moulded case circuit breaker Pictures:Other our product series:| Manual transfer switch | 1A~1600A, 3P/4P. |
| Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
| Metal power distribution box | Metal box, size can color can be customized. |
| Plstic box | Different ways, competitive price, welcome to contact |
| Surge protector | B,C,D Class, AC, DC type you can choose. Different types and
discharge current you choose. |
| Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
| Current transformer | Different size you can choose, quality guarantee,
hot used in Generator cabinets. |
| Push button | Metal or plastic, different types for power cabinet. |
