AC Magnetic Contactor

Name: AC Magnetic Contactor
Brand: all-electronics-online.com
SKU: 803483435
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 2.5/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-0901(LC1-D0901)

Product Description

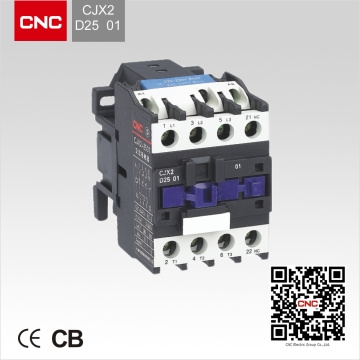

CJX2-09(LC1-D0901) AC Magnetic Contactor

Product Description

Application
CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4, GB14048-4.
Standard control voltage

Voltage	50Hz	60Hz	50/60Hz
24	B5	B6	B7
42	D5	D6	D7
48	E5	E6	E7
110	F5	F6	F7
220	M5	M6	M7
230	P5	-	P7
240	U5	U6	U7
380	Q5	Q6	Q7
400	V5	-	V7
415	N5	-	N7
440	R5	R6	R7
500	S5	-	-
660	Y5	-	-

Specification

Type			CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32	CJX2-40	CJX2-50	CJX2-65	CJX2-80	CJX2-95
Rated insulation voltage(Ui)		V	690
Rated thermal current(Ith)		A	20	20	32	40	50	60	80	80	95	95
Rated operation current(Ie)	AC-3,380V	A	9	12	18	25	32	40	50	65	80	95
	AC-3,660V	A	66	89	12	18	21	34	39	42	49	55
	AC-4,380V	A	3.5	5	7.7	8.5	12	18.5	24	28	37	41
	AC-4,660V	A	1.5	2	3.8	4.4	7.5	9	12	14	17.3	21.3
MAX.power of 3 phase motor controlled	AC-3,220V	kW	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	AC-3,380V	kW	4	5.5	7.5	11	15	18.5	22	30	37	45
	AC-3,660V	kW	5.5	7.5	10	15	18.5	30	33	37	45	55
Electrical life	AC-3	10000t	100				80	80			60
Electrical life	AC-4	10000t	20				20	15			10
Mechanical life		10000t	1000				800	800			600
Operation frequency	AC-3	t/h	1200				600	600			600
Operation frequency	AC-4	t/h	300				300	300			300
Matching fuse type			RT16-20	RT16-20	RT16-32	RT16-40	RT16-50	RT16-63	RT16-80	RT16-80	RT16-100	RT16-125
Matching thermal relay type			JR28-25	JR28-25	JR28-25	JR28-25	JR28-36	JR28-93	JR28-93	JR28-93	JR28-93	JR28-93
Wiring capacity		mm²	1.5	1.5	2.5	4	6	10	16	16	25	35
Coil
Control power voltage(Us)	AC	V	36,110,127,220,380
Allowwed control circuit voltage	Close	V	85%~110%Us
Allowwed control circuit voltage	Open	V	20%~75%Us(AC)
	Close	VA	70			110		200
	Keeping	VA	8			11		20
	Loss power	W	1..8~2.7			3~4		6~10
Auxiliary contact
Rated thermal current(Ith)		A	10
Rated operation voltage(Ue)	AC-15	V	380
Rated operation voltage(Ue)	DC-13	V	220
Rated control capacity	AC-15	VA	360
Rated control capacity	DC-13	W	33
