AC Motor Drive Smart Soft Starter

Name: AC Motor Drive Smart Soft Starter
Brand: all-electronics-online.com
SKU: 820964695
Availability: InStock
Rating: 4.7 (64 reviews)

Price:	US $ 182/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AZPR-3000
Control Power:	AC380 20% Fluctuation 50Hz/60Hz
Motor Power:	15---355kw(Rated Voltage 380V)
Protection Class:	IP20
Nominal Current:	30A—700A, a Total of 17 Ratings
Warranty:	12moths
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Ozer

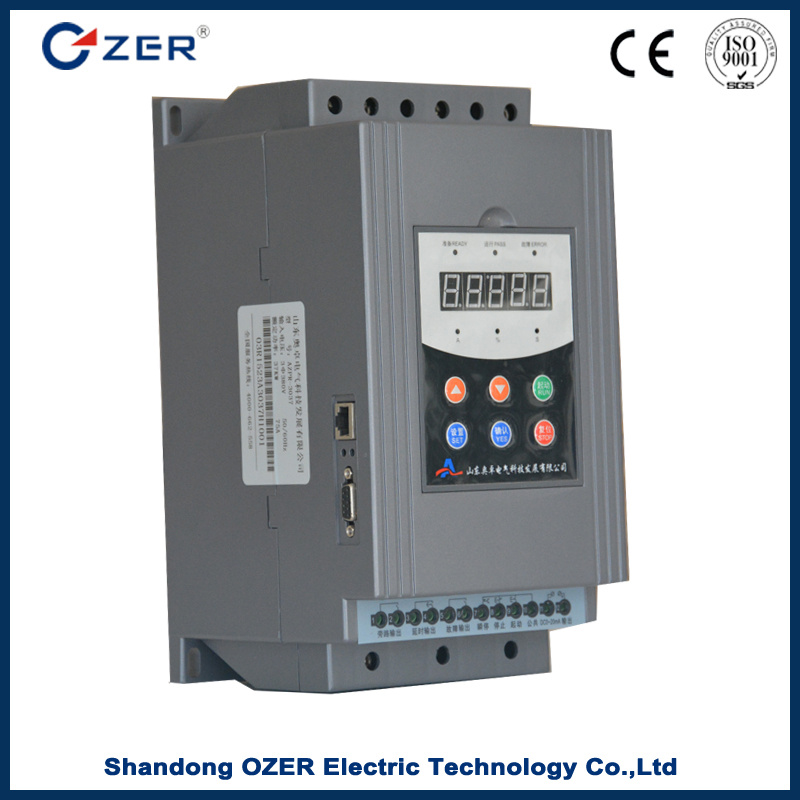

Product Description

AZPR3000 Series Soft Starter is a fusion can be the latest motor control theory and electrical protection technology and new equipment of modern computer technology, is the star / delta conversion, the ideal son even buck, buck magnetic motor starter equipment and other alternative products, effective reduce the motor starting current, reduce distribution capacity, effectively prevent power grid capacity increase investment, reduce the start-up capability of the motor and load equipment and extend the service life of the motor and related equipment.

Product parameter:

Items	Content
Control Power	AC380 20% fluctuation,50HZ/60HZ
Three-phase power supply	AC380 20% fluctuation,50HZ/60HZ
Nominal current	30A-700A,A total of 17 ratings
Motor Power	15---355KW(Rated voltage 380V)
Applicable motor	Three-phase asynchronous motor
Start mode	Suddenly soft start, current limit start, voltage ramp start
Parking Information	Free stop, soft stop (1-600 seconds adjustable)
Relay output	Delay running output; fault output; full voltage bypass output
Start frequency	Do frequent start, we recommend no more than 10 times per hour
Protective function	Input phase, output overload, overcurrent, overheating, etc.
Protection class	IP20
cooling method	Natural cooling
Mounting	Wall-mounted
Environmental conditions	Ambient temperature -10 ºC ~ + 50 ºC, relative humidity <95% 15-25 ºC, non-flammable, explosive, corrosive gas, no conductive dust, indoor installation, vibration <0.5G altitude of over 2000 meters readily applicable

Product spectification:

Specifications Model	rated power(kw)	Current Rating	Dimensions			Mounting dimensions			net weight
Specifications Model	rated power(kw)	Current Rating	W1	H2	d	W2	H2	D	net weight
AZPR-3011	11	23	146	270	162	132	249	M6	<3.5
AZPR-3015	15	30	146	270	162	132	249	M6	<3.5
AZPR-3018	18.5	37	146	270	162	132	249	M6	<3.5
AZPR-3022	22	43	146	270	162	132	249	M6	<3.5
AZPR-3030	30	60	146	270	162	132	249	M6	<3.5
AZPR-3037	37	75	146	270	162	132	249	M6	<3.5
AZPR-3045	45	90	146	270	162	132	249	M6	<3.5
AZPR-3055	55	110	146	270	162	132	249	M6	<3.5
AZPR-3075	74	150	146	270	162	132	249	M6	<3.5

Specifications Model	rated power(kw)	Current Rating	Dimensions			Mounting dimensions			net weight
Specifications Model	rated power(kw)	Current Rating	W1	H1	D	W2	H2	D	net weight
AZPR-3075	75	150	260	530	211	196	380	M8	<20
AZPR-3090	90	180	260	530	211	196	380	M8	<20
AZPR-3115	115	320	260	530	211	196	380	M8	<20
AZPR-3132	132	264	260	530	211	196	380	M8	<20
AZPR-3160	160	320	260	530	211	196	380	M8	<20
AZPR-3085	185	370	290	560	240	260	470	M8	<23
AZPR-3200	200	400	290	560	240	260	470	M8	<23
AZPR-3250	250	500	290	560	240	260	470	M8	<23
AZPR-3280	280	560	290	560	240	260	470	M8	<23
AZPR-3320	320	640	330	600	240	300	510	M8	<26
AZPR-3400	400	800	330	600	240	300	510	M8	<26
AZPR-3500	500	1000	330	600	240	300	510	M8	<26

Product Certifications:

Company information:

We have rich experience in design of various types of VFD for various applications viz. spinning,papermaking,machinery,steel plant,petroleum,fan, water pump etc.
Company Technology has powerful capacity in design, development and manufacture of industrial control equipment. While completely satisfying domestic demand, it shall actively extend overseas business. Currently, the overseas market of ozer has covered lots of countries and regions over Southeast Asia, South Asia, the Middle East, Africa and Europe etc.

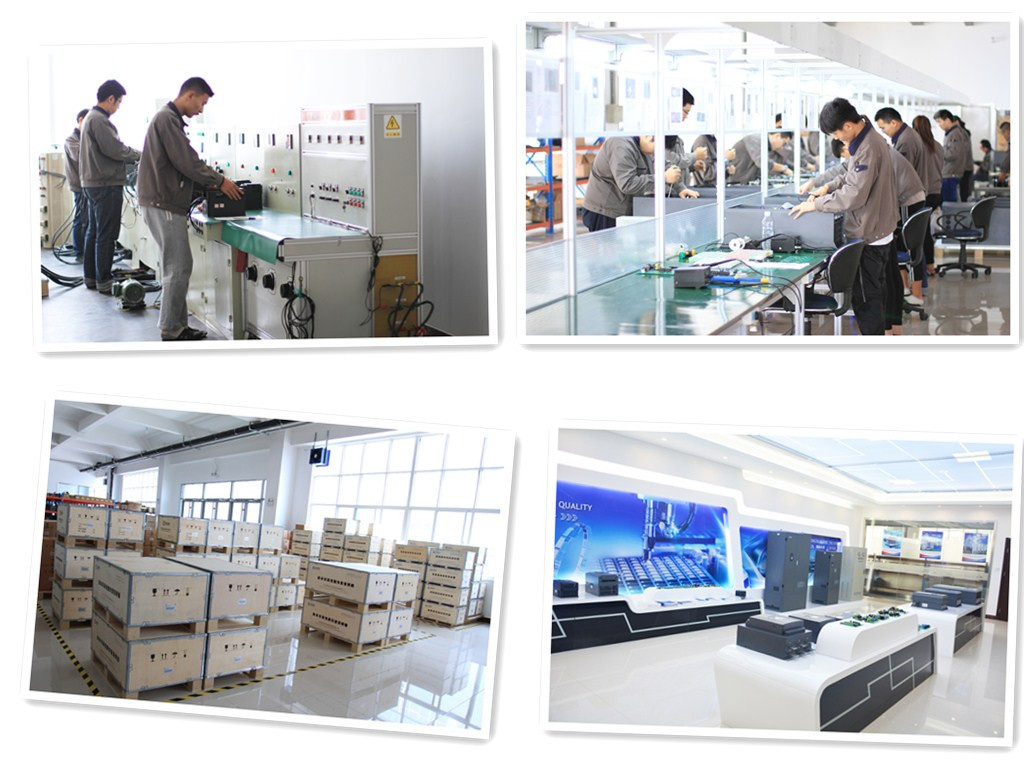

Workshops and packing :

RFQ
1.Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.   What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.   What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.   What's your warranty terms?
We offer 24 months warranty time .
5.   Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.   Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.   How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.   Can you sell spare parts ?
If you are using our products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .We have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request,and our factory can do soft starter by ourselves.
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
Our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail. and we will take all the responsibility once problem during warranty time.
