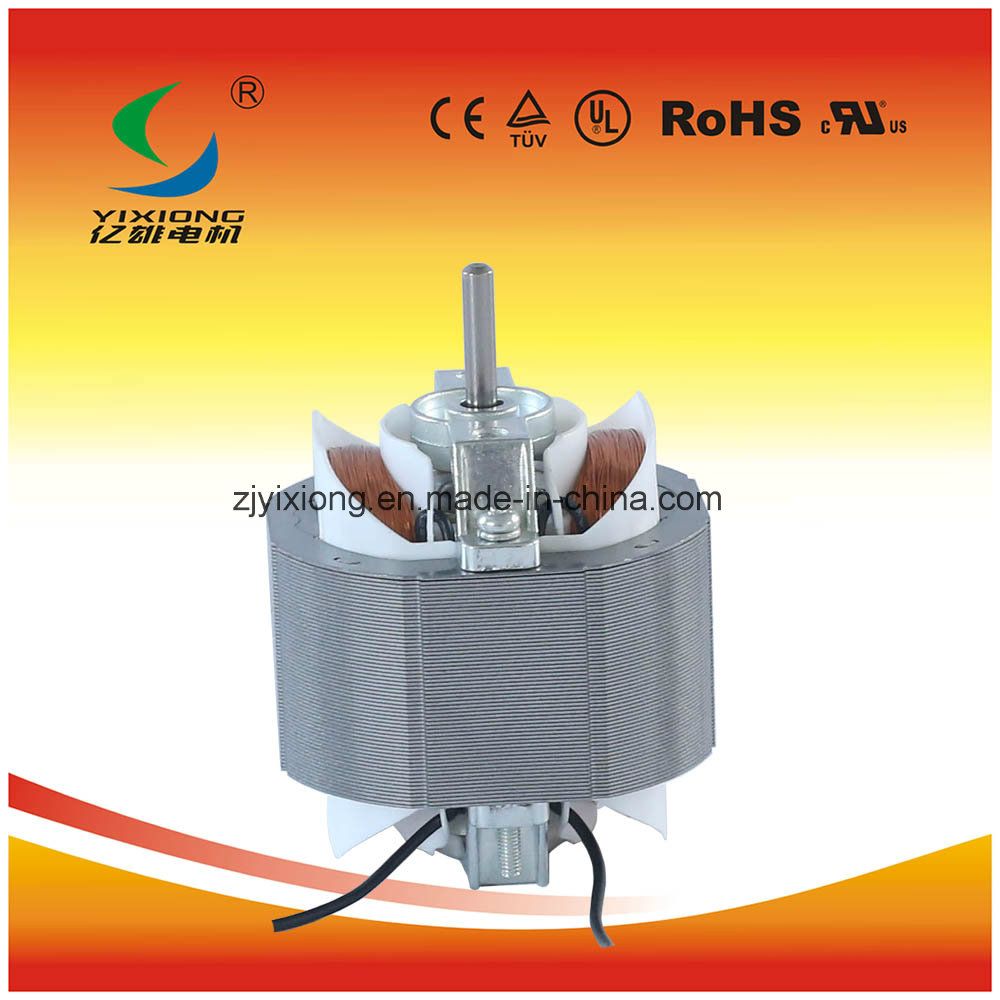

AC Motor Low Rpm with Recoverable Thermal Fuse

Name: AC Motor Low Rpm with Recoverable Thermal Fuse
Brand: all-electronics-online.com
SKU: 821568415
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	US $ 1-5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Supply Voltage:	220-240V 50Hz 100-120Hz 60Hz
Core Material:	Sillicon Sheet
Wire Material:	Copper
Protection:	Over Heater Protection
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Open Type
Species:	Shaded Pole Motor
Starting Mode:	Induction Start
Certification:	Ce UL
Brand:	Yixiong

Product Description

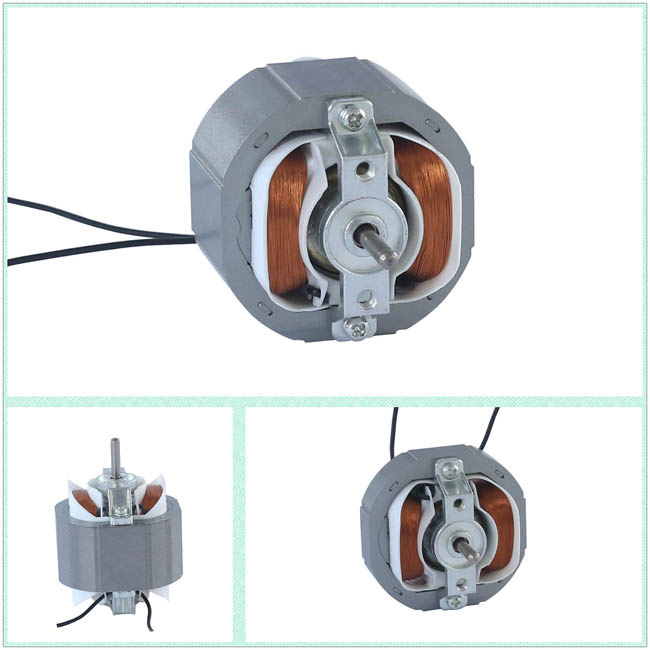

AC Motor Fan Specification:
Motor size:
1. Stator diameter: 58mm
2. Shaft diameter: 4mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 pole
6. Rotation: CW/CCW

Application
1. Can be used ventilation fan motor, box fan motor, etc
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. It can be designed and produced as your request.

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ58-10	110/220V AC	50/60 Hz	0.09 A	12.0 W	2400 RPM	E/B/F
YJ58-12	110/220V AC	50/60 Hz	0.10 A	14.0 W	2800 RPM	E/B/F
YJ58-16	110/220V AC	50/60 Hz	0.10 A	15.0 W	2300 RPM	E/B/F
YJ58-20	110/220V AC	50/60 Hz	0.16 A	20.0 W	1750 RPM	E/B/F
YJ58-25	110/220V AC	50/60 Hz	0.17 A	22.0 W	2400 RPM	E/B/F
YJ58-30	110/220V AC	50/60 Hz	0.20 A	24.5 W	2500 RPM	E/B/F
YJ58-35	110/220V AC	50/60 Hz	0.22 A	30.0W	2500 RPM	E/B/F

Delivery terms:

1, T/T in advance will be our popular payment terms.

2, We'd like to send you some samples for your close for your close inspectiong first.

3, We have detailed specifications.If you are interested in it, please write to me or talk me on TM.

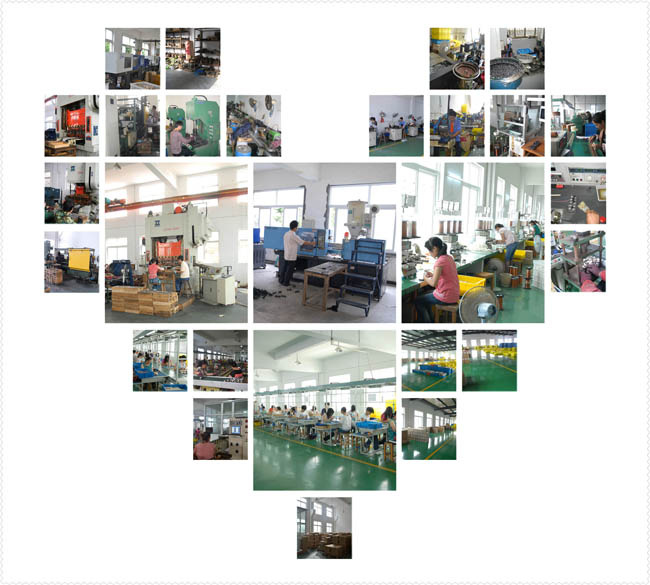

Production

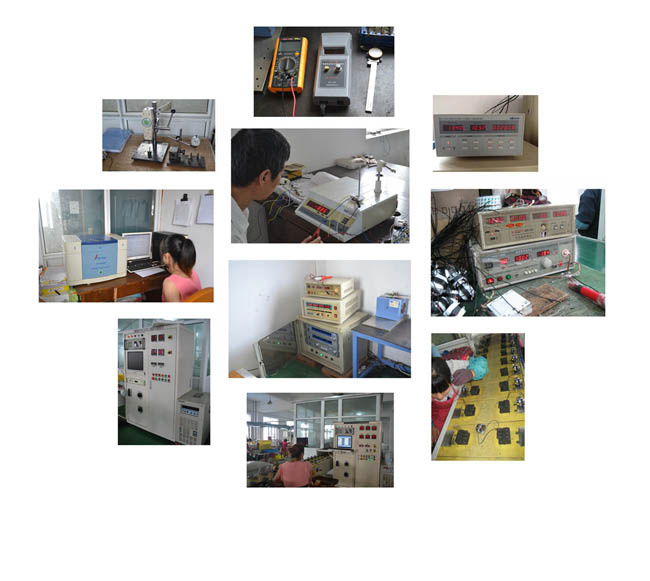

Inspection

Contact us

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
