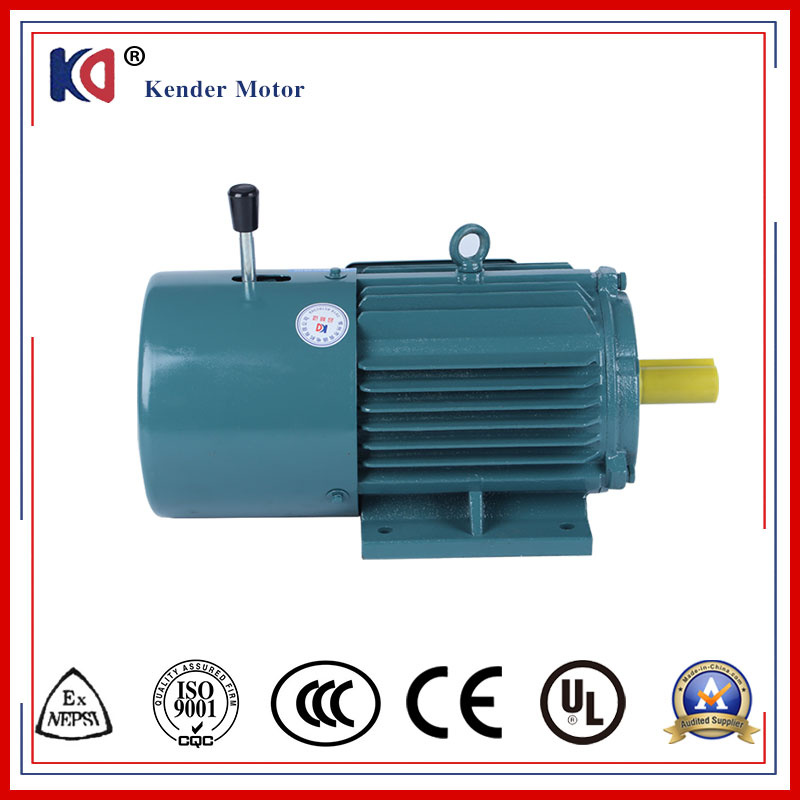

AC Phase Brake Motor for Textile Machinery

Prod Model:	YEJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Yej90L-4
Power:	1.5kw
Voltage:	380V
Efficiency:	79%
Power Factor:	0.79 Cosφ
Stall /Rated Current:	6.5A
Stall /Rated Torque:	2.3 N.M
Static Braking Torque:	15n.M
No Load Brake Time:	0.2s
Exciting Power:	60W
Number Of Stator:	Three-Phase
Function:	Control
Brand:	Kd

Product Description

I Motor intro
Aluminium / Cast Iron Housing Three Phase / Single Phase Cast Iron Brake Motor tubular squirrel cage electrical/electric single phase induction ac asynchronous motor

II Motor specifications
1.Rated voltage:380V (According to the request)
2.Rated Frequency:50HZ/60HZ
3.Power: From 0.12Kw to 45Kw
4.Frame: From 80 to 355
5.Protection class:IP54/IP55
6.Work mode:S1
7.Insulation class:B/F
8.Pole:2-6
9.Cooling method: IC0141

III Motor advantage
Quick braking
High efficiency
Energy-saving
Low noise
Low loss
Little vibration and Safe operation
Easy maintenance

IV Technique Data


Model	Power	Speed	Voltage	Effi.	Power Factor	Stall/Rated  Current (A)	Stall/Rated  Torque	Max/Rated  Torque	Static braking  torque	No Load  Brake Time	Exciting  Power
	(kW)	(r/min)	(380V)	(%)	(cos)				N.m	s	W
80M1-2	0.75	2830	1.81	75	0.84	6.5	2.2	2.3	7.5	0.2	50
80M2-2	1.1		2.52	77	0.86				7.5	0.2	50
90S-2	1.5	2840	3.44	78	0.85	7			15	0.2	60
90L-2	2.2		4.83	80.5	0.86				15	0.2	60
100L-2	3	2880	6.39	82	0.87				30	0.2	80
112M-2	4	2890	8.17	85.5	0.87				40	0.25	110
132S1-2	5.5	2900	11.1	85.5	0.88	7	2		75	0.25	130
132S2-2	7.5		15.02	86.2					75	0.25	130
160M1-2	11	2930	21.78	87.2	0.88				150	0.35	150
160M2-2	15		29.36	88.2				2.2	150	0.35	150
160L-2	18.5	2930	35.49	89	0.89				150	0.35	150
180M-2	22	2940	42.2	89					200	0.35	150
200L1-2	30	2950	56.9	90					300	0.45	200
200L2-2	37		69.79	90.5					300	0.45	200
225M-2	45	2970	83.96	91.5					450	0.45	200
801-4	0.55	1390	1.51	73	0.76	6	2.4	2.3	7.5	0.2	50
802-4	0.75		2.01	74.5	0.76		2.3		7.5	0.2	50
90S-4	1.1	1400	2.75	78	0.78	6.5			15	0.2	60
90L-4	1.5		3.65	79	0.79				15	0.2	60
100L1-4	2.2	1430	5.03	81	0.82	7	2.2		30	0.2	80
100L2-4	3		6.82	82.5	0.81				30	0.2	80
112M-4	4	1440	8.77	84.5	0.82				40	0.25	110
132S-4	5.5		11.64	85.5	0.84				75	0.25	130
132M-4	7.5		15.41	87	0.85				75	0.25	130
160M-4	11	1460	22.61	88	0.84				150	0.35	150
160L-4	15		30.3	88.5	0.85			2.2	150	0.35	150
180M-4	18.5	1470	35.9	91	0.86		2		200	0.35	150
180L-4	22		42.48	91.5					200	0.35	150
200L-4	30		56.82	92.2	0.87				300	0.45	200
225S-4	37	1480	70.39	91.8	0.87		1.9		450	0.45	200
225M-4	45		84.17	92.3	0.88				450	0.45	200
90S-6	0.75	940	2.25	72.5	0.7	5.5	2	2.2	15	0.2	60
90L-6	1.1		3.16	73.5	0.72	5.5			15	0.2	60
100L-6	1.5		3.97	77.5	0.74	6			30	0.2	80
112M-6	2.2		5.61	80.5	0.74				40	0.25	110
132S-6	3	960	7.23	83	0.76	6.5			75	0.25	130
132M1-6	4		9.4	84	0.77				75	0.25	130
132M2-6	5.5		12.56	85.3	0.78			2	75	0.25	130
160M-6	7.5	970	16.99	86					150	0.35	150
160L-6	11		24.63	87	0.78				150	0.35	150
180L-6	15		31.44	89.5	0.81		1.8		200	0.35	150
200L1-6	18.5		37.71	89.8	0.83				300	0.45	200
200L2-6	22		44.65	90.2	0.83				300	0.45	200
225M-6	30	980	59.45		0.85		1.7		450	0.45	200



V About Kender :
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)

VI Contact Kender
1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time

VII Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
