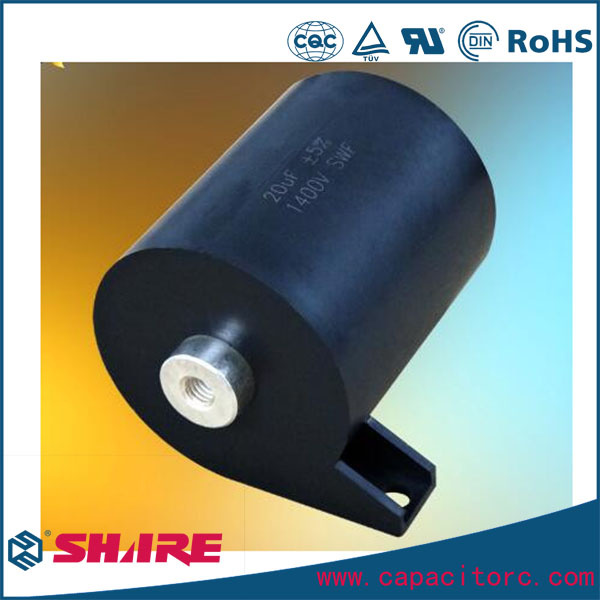

AC Resonance Capacitor for Welding Machines

Name: AC Resonance Capacitor for Welding Machines
Brand: all-electronics-online.com
SKU: 802086685
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	US $ 1-5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB15 CBB16
Type:	Polypropylene Capacitor
Application:	Refrigerators,Compressors,Air Cooler
Package Type:	Through Hole
Capacitance:	1UF~50UF
Electrolyte:	Oil
Filter:	Film Capacitor

Product Description

resonance capacitor /electric welding machine capacitor

welding machine capacitor description:
IGBT capaacitor--non inductive winding with metallized polypropylene film, special metal spray,flame retardant plastic shell encapsulation, flame retardant expoxy potting. IGBT capacitor has the advantage of high ripple current endurance, high dv/dt, high ripple current absorption ability, low temperature rise and long lifespan.

welding machine capacitor application:
1. UPS snubber
2. Converter
3. Welding machine
4. power supply system
5. IGBT module
6.Inverter welding machine/Power supply etc.//AC Resonance circuit

welding machine capacitor technical information:

product detail	welding machine capacitor
Oprating temperature	-40 ~ +85ºC max 105ºC
Voltage	200-3000VDC
Capacitance	1-50uF
Capacitance Tolerance	+/- 5%
Dissipation	Tgσ≤0.0008(10KHz,20ºC)
Flame retardation	UL94V-0

resonance capacitor DATA:

Series	R series	Capacitance	1UF~50uF
Capacitance Tolr.	±5%(J)	Rated Voltage	500VDC~1800VDC
Terminals	Tinned copper nuts	Encapsulation	Mylar tape/epoxy resin
Brand	CABO	Application	Resonance circuit

Electrical Parameter:

Capacitance	1uF~50uF
Temperature	-40ºC~+85ºC
Capacitance Tolerance	±5%(J)
Rated Voltage	500V.AC
Test Voltage between terminals	1.5Un 10s
Dissipation factor	Tgθ≤0.0010(1KHz,20ºC)
Max.Altitude	<4000m
Insulation Resistance	CxRs≥5000S(20ºC,100VDC,1min)
Flame Resistance	UL 94V-0
Max Torque of terminals	6Nm
Lifetime Expectancy	≥30,000Hours (Un,≤70ºC)

SHARE ELECTRONIC Company is a world-leading capacitor producer.

Our company was set up in 2008, NingGuo province. Since then, our company has

Been drived by an innovation system which centered on the needs of our

Customers. Such kind of system provid us a sustaining and healthy development

And help us to become one of the largest capacitor producer around the world. We

Has an annual aluminium electrolytic capacitor production capacity of 500 million

And our customers are covered more than 30 countries and regions all over the

World.

Our company has a scientific mangement and strong technical force. We estabished

A quality control system in accordance with the idea that quality is the basis of

Survival.

In the Internet era, we implement two strategic transformation. One is the business

Transformation. It means that we paid more attention on saling service instead of

Saling products. The other is the business mode transformation. We changed our

Business mode from the traditional one to a win-win situation. The orgainzational

Structure of SHARE is changed corresponding to the needs of the market.

It forms the organizational strucuture of flat network with the innovative basis of

Independent marketing units, driving the employees directly facing the market to

Acquire and satisfy the fragment and personnalized demand of the customers.

SHARE is becoming the leading global brand with the innovation through a winwin

Business form in the era of the Internet.
