AC /Series Reversible Gear Motor with Encoder

Name: AC /Series Reversible Gear Motor with Encoder
Brand: all-electronics-online.com
SKU: 743188655
Availability: InStock
Rating: 5 (69 reviews)

Price:	US $ 18.5-20.5/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4RK25GN-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Speed:	1250/1550rpm
Power:	25W
Voltage:	110V~220V/230V
Frequency:	50/60Hz
Rated Torque:	0.2n.M
Capacitor:	10UF
Function:	Driving
Number Of Stator:	Three-Phase
Brand:	GS
Certification:	CE UL

Product Description

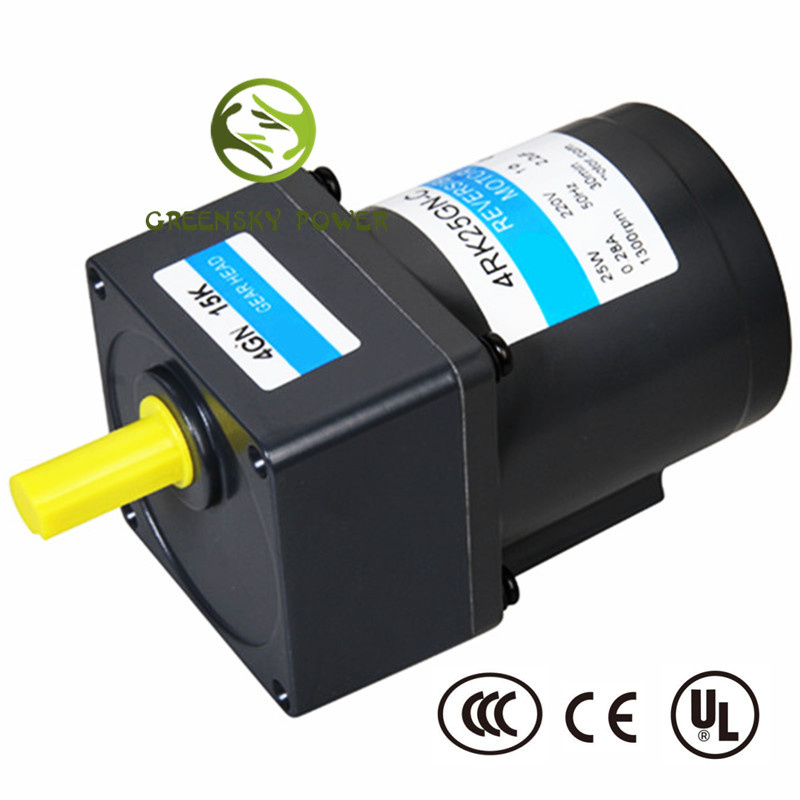

AC Reversible 25W 80mm Gear Motor

Introduction

Reversible motor has a friction brake at the back of the motor body, which is designed for application where reversal of direction is frequently required. The reversible motor is like induction motor that started by the capacitor and has a same torque characteristic with the induction motor. But the reversible motor is designed with a higher starting torque to increase the instant reversal features.

Specifications

1. Dimensions of device: 80mm
2. Rated Power: 25W
3. Voltage: 110V~220V/230V
4. CCC, CE, UL, CU
5. Can be customized

Greensky's advantage

On the site you can find a range of renewable products including ac/dc motor, ac induction motor, reversible motor, blake motor, speed motor, ac angel motor, gear motor, planetary gear box, worm gear box and their relevant components.

If you have any other questions, please feel free to contact us.

Model	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated Torque N.m	Capacitor uF
4RK25GN-A	100	25	0.59	1250	0.200	10
			0.69	1550	0.165
4RK25GN-E	110	25	0.45	1550	0.165	8.0
	120		0.50
4RK25GN-C	220	25	0.29	1250	0.200	2.2
	230		0.30
4RK25GN-H	220	25	0.35	1550	0.165	2.2
	230		0.35
