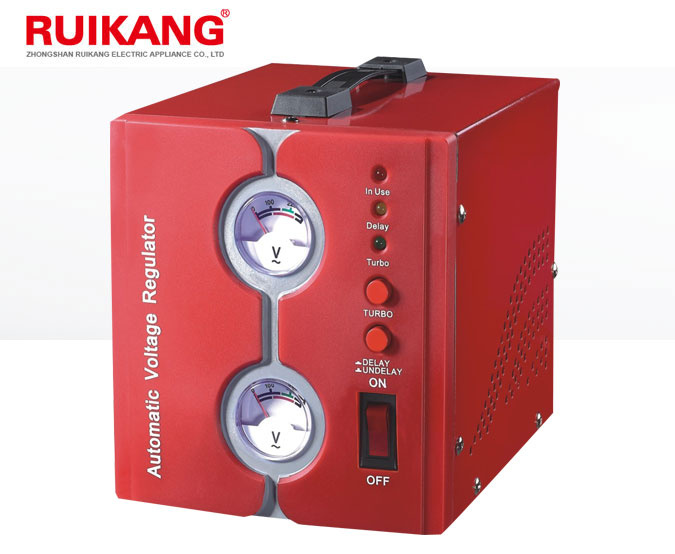

| Prod Model: |
IVR-500VA |
| Markets: |
Southeast Asia,Africa,Mid East |
| Capacity: |
80% |
| Certificate: |
ISO 9001/Ce |
| OEM: |
Allowed |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Frequency: |
Low Frequency |
| Usage: |
Household Voltage Regulator |
| Application Range: |
Home Appliance |
| Brand: |
Ruikang |
Product Description
Product description:
Relay type
Manual and automatic type
Meter display: input and output voltage
EI transformer/toroidal transformer
LED indicators: in use, unusual and delaying
High voltage/low voltage protection
High temperature (customized option)
Output precision: ±10%
Color: customized design
Input: 100-260V AC/140-260V AC/160-260V AC
Output: 220V AC/110V AC
Frequencies: 50/60Hz
Delaying time: 3-6S/180S
Power: 500VA/1000VA/1500VA/2000VA/3000VA/5000A
Specification:
| Model | 500VA | 1,000A | 1,500VA | 2,000VA | 3,000VA | 5,000VA |
| Capacity | 80%,when input voltage is 190V |
| Technology | Alumium coil,EI transformer /Toroidal transformer,relay type |
| Phase | Single phase (one transformer controlled) |
| Double display (Meter or digital) | Input voltage & Output voltage |
| Input | Voltage Range | 160-260V (3relaies) | 100-260V (5relaies) | 100-260V (5relaies) | 100-260V (5relaies) | 140-260v (5relaies) | 140-260v (5relaies) |
| Frequency | 50/60Hz |
| Output | Voltage | AC 220±10%V/AC110±15%V |
| Protection | High voltage protection | √ | √ | √ | √ | √ | √ |
| Overload protection |
| √ | √ | √ | √ | √ |
| Short Circuit protection | √
(with fuse) | √
(with fuse) | √
(with fuse) | √
(with fuse) | √
(with fuse breaker) | √
(with fuse breaker) |
| Enviromental | Operating Temperature | 0-40°C |
| Stortage Temperature | 15°C-45°C |
| Operating Relative Humitity | 10%RH-102%RH,non-condensing |
| Physical | Pcs/Carton | 8 | 4 | 4 | 4 | 1 | 1 |
| Packing Size(mm) | 500*300*340 | 692*295*205 | 692*295*205 | 692*295*205 | 425*268*320 | 425*268*320 |
| G.W(KGS) | 22 | 20 | 22 | 25 | 12 | 17 |
| N.W(KGS) | 19 | 18 | 20 | 23 | 11 | 16 |
Applications:
Voltage regulator is used to automatically adjust the output voltage of the power supply circuit or power supply equipment
It can be widely used in places require stable power supply voltage, such as industrial and mining enterprise, oil, railways, construction sites, schools, hospitals, telecommunications, hotels, research and other departments of computer, precision machine tools, computer tomography (CT), precision instruments, test equipment, elevator lighting, imported equipment and production lines and so on.
Factory history:
Established in 1995, with more than 20 years of experience,we have built up the professional teams of R&D,technology,production,supply and marketing with our target of buiding a centennial enterprise and global brand.
We are specialized in all kinds of power supply products contain automatic voltage regulator/stabilizer,UPS, inverter,step up&down transformer and battery charger with full set of auto production equipment and 300 workers.
We also insist on manufacturing electronic component like hardware,circuit board,coil,consent,plug and socket by ourselves to ensure high quality and competitive price for global valued customers.
Packing:
Double packing:color box and outer carton
5,00VA;8pcs/ctn
1,000VA-2,000VA:4pcs/ctn
3,000VA and 5,000VA:1pc/ctn
Our promise in best service:
1. All your inquiries will be replied within 24 hours!
2. We provide one year warranty for our products.
Professional production & Competitive price
Our factory was estabilished in 1995, and we pocess our full set of equipment and technology for mass production including parts like hardware, circuit board, coil, consen and plug, we could give you better service than others. Welcome to our factory.
Established from Year 1995, we strictly mange with ISO 9001: 2008 standard, we have built up the professional teams of R&D, technology, production, supply and marketing with our target of building a centennial enterprise and global brand. We are specialized in all kinds of power supply products contain Automatic Voltage Regulator/ Stabilizer, UPS, Inverter, Step up & down Transformer and Battery Charger with full sets of auto production equipments and 300 workers in 20, 000 square meters of factory. Also we insist on manufacturing electronic component like hardware, plastic parts, circuit board, coil, plug and socket by ourselves to ensure high quality and competitive price for global valued customers.
Persisting to the business concept of "Stalwartness, Innovation, Developing, Entrepreneurship" and business principle of "Customer First, Quality First and Service First", we offer OEM and ODM service for all of our customers, and we will deeply devote to our role as a responsible corporate citizen in China, and around the whole world.
