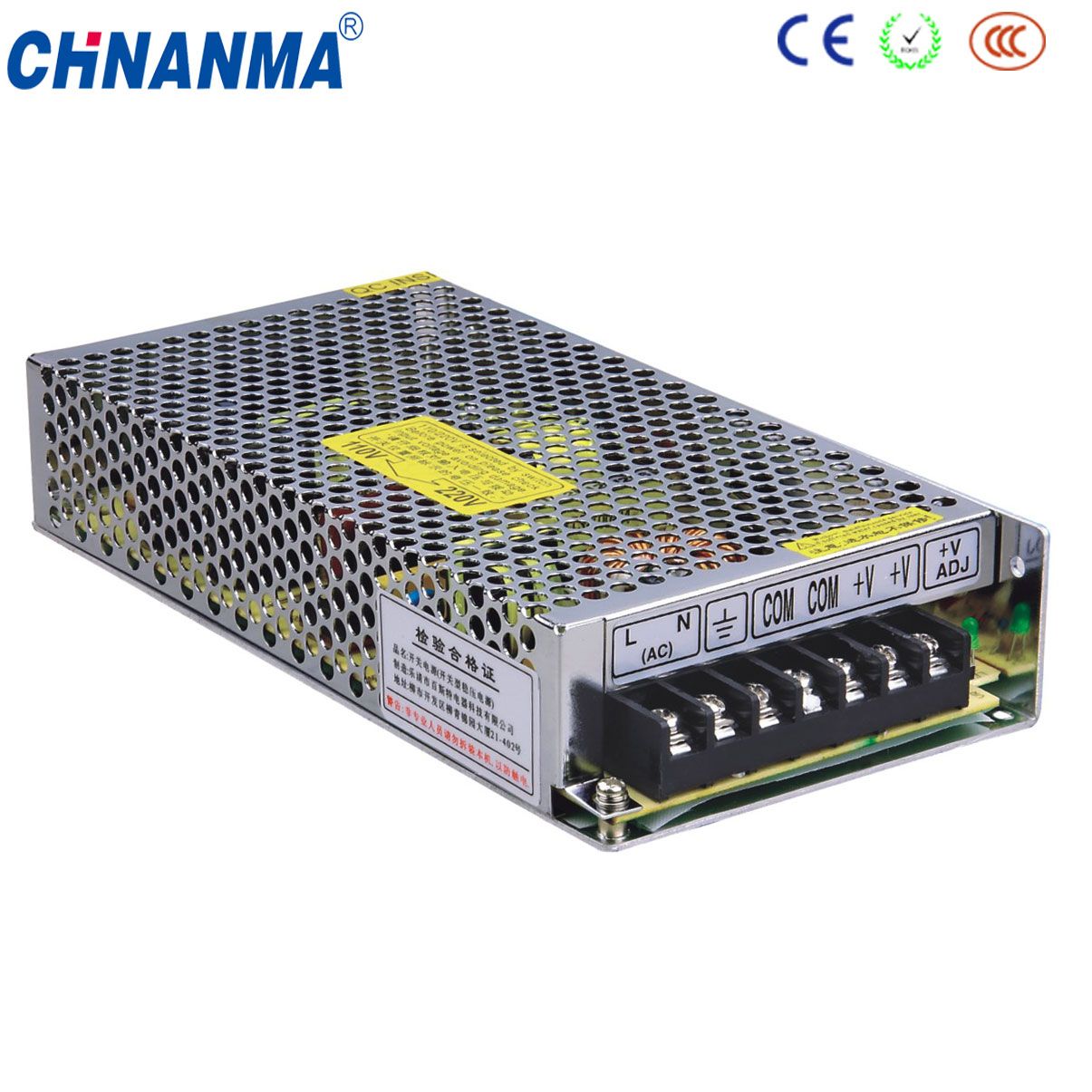

AC to DC 145W Switching Power Supply (SMPS)

Name: AC to DC 145W Switching Power Supply (SMPS)
Brand: all-electronics-online.com
SKU: 769867615
Availability: InStock
Rating: 4.5 (84 reviews)

Price:	US $ 1-1/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-145W-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Material:	Aluminum
Size:	1107836mm
Oltage Regulating Mode:	Frequency Modula
Color:	Silver
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Chnanma

Product Description

Product Description
100% full load burn-in test
Small size, High Power density
Universal AC input: 110/220± 20%, selectable by switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage

Specifications

Specification	S-145-12
DC output	12V 12A
Wave and noise	50mVp-p
Inlet stability	±0.5%
Load stability	±0.5%
Efficiency	84%
Adjustable range for DC voltage	±10%
AC input voltage range	85-132VAC/170-264VAC 47-63Hz
AC Inrush current	Cold-start current 25A/115V 50A/230V
OverLoad protection	125%-165% hiccup mode,auto-recovery
Over-Voltage protection	115%-135% rated output voltage
Setup,rise,hold up time	200ms,50ms,20ms at full load and 230VAC
Withstand voltage	I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistanc	I/P-O/P IP/FG OP-FG:500VDC/100MΩ
Working temperature	-10ºC_+50ºC
Safety Standards	Design refer to GB4943,UL60950,EN60950
EMC Standards	Design refer to GB9254,EN55022 Class B
Weight	0.7Kg
