| Prod Model: |

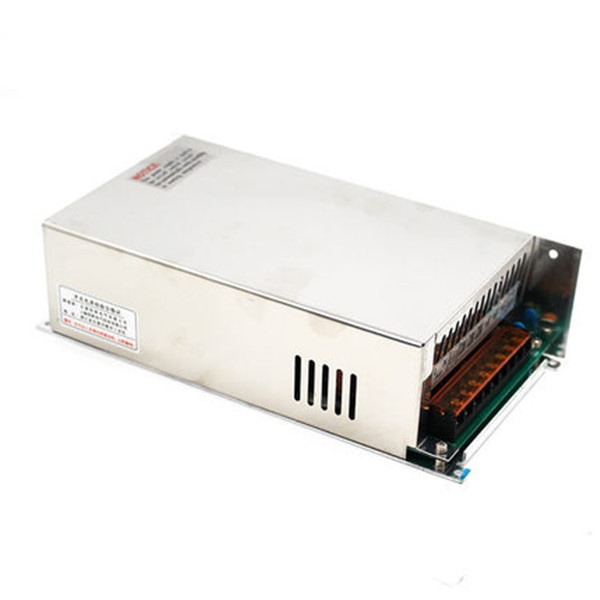

LYD-48V-10A |
| Working Temperature: |
-10-70 |
| Storage Temperature: |
-20-85 |
| Material: |
Aluminum |
| Output Type: |
Single |
| Output Power: |
401 - 500W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
RoHS |
Product Description
Basic Info| place of origin: | Shenzhen,China | brand name: | louita | model no.: | LYD-48V-10A |
| output type: | single | output frequency: | 50/60HZ | material: | Aluminium |
| size: | 240X125X67mm | output current: | 10A | | |
Product Description
Features: Universal AC input/ full range
Built-in active PFC function
Protections: Short circuit/ Over load/ Over voltage/ Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at 100KHz
2 years warranty
| SPECIFICATIONS |
| OUTPUT | |
| Model | LYD-48V-10A | LYD-48V-10A |
| DC Voltage | 24V | 48V |
| Rated Current | 20A | 10A |
| Current Range | 0-20A | 0-10A |
| Rated Power | 480W | 480W |
| Ripple & Noise | 120mVp-p | 120mVp-p |
| Voltage Adj. Range | 24-28V | 48-53V |
| Voltage Tolerance | ±1% | ±1% |
| Setup, Rise Time | 800ms,40ms/230VAC 800ms,40ms/115VAC at full load |
| Hold Up Time | 24ms/230VAC 24ms/115VAC at full load |
| | |
| INPUT | |
| Voltage Range | 180~264VAC 47~63Hz; 250~370VDC |
| AC Current | 2.8A/115V 1.4A/230V |
| Efficiency | 89% | 89% |
| Inrush Current | Cold start 27A/115V 45A/230V |
| Leakage Current | <3.5mA/240VAC |
| | |
| PROTECTION | |
| Over Load | 105%~150% |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage | 30-36V | 54-60V |
| Protection type: Shut down o/p voltage, re-power on to recover |
| Over Temp. | 100°C±5°C(TSW1) |
| Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
| | |
| ENVIRONMENT | |
| Working Temp., Humidity | -10°C~+70°C; 20%~90%RH |
| Storage Temp., Humidity | -20°C~+85°C; 10%~95%RH |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
| | |
| SAFETY | |
| Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
| | |
| STANDARD | |
| Safety Standard | Design refer to UL508,UL60950-1, TUV EN60950-1 |
| EMC Standard | EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) |
| | |
| OTHERS | |
| Dimension | 240X125X67mm |
| Weight | 2.5Kg |
| Packing | 12pcs/carton |
| | |
| NOTE | |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. Derating may be needed under low input voltages. Please check the der |
