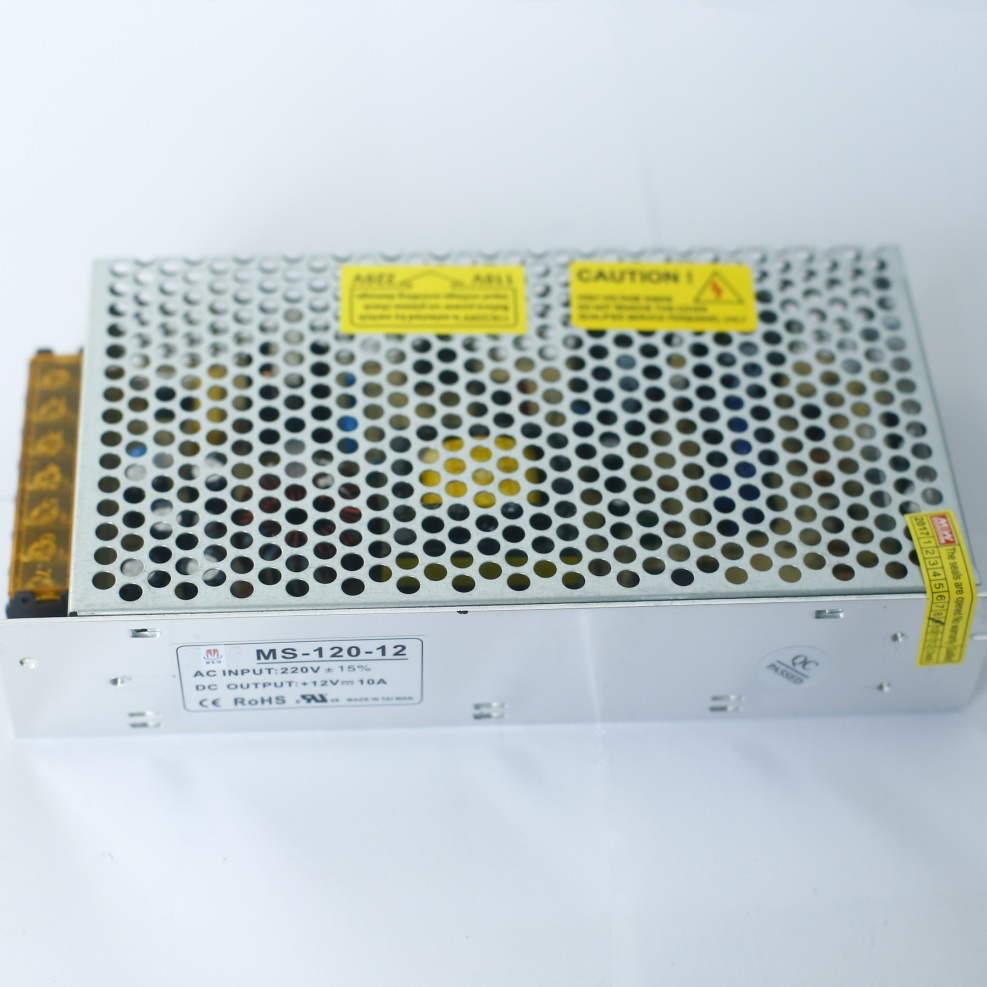

AC to DC Transformer 120W 10A Switching Power Supply for /LED SMPS 12V

Name: AC to DC Transformer 120W 10A Switching Power Supply for /LED SMPS 12V
Brand: all-electronics-online.com
SKU: 834640435
Availability: InStock
Rating: 4.7 (43 reviews)

Price:	US $ 3.9-4.3/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MEQ-100/120
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	BIS SGS
Brand:	MEQ

Product Description

1. Model NO.: MEQ-100/120 single switching power supply

· Output voltage rated: ±5%-±10%

· Working Temperature: -10~+50 Degree C

· Storage Temperature:-20~+ 85 Degree C

Features:

      · Built - in EMI filter

· 100% full load burn-in test

·Protections:short circuit/ over load/ over voltage
      over load Protection: 110-150%
   over voltage protection(OVP) : 115-150%

· Setup rise hold up time:50ms,20ms

· Safety Standard: designed refer to GB4943,UL60950,EN60950

· EMC standards: designed refer toGB9254,EN55022 class A

·Heat-dissipating method: Self-cooling

Model	input voltage		Output	Voltage tolerance	R & N	Effi.
MEQ- 100BA-5	18-36V		5V 20A	1%	100 mV	68%
MEQ- 100BA-12	18-36V	12V 8.3A		1%	120mV	68%
MEQ- 120BA-24	18-36V	24V 5A		1%	200mV	70%
MEQ- 120BA-36	18-36V	36V 3.6A		1%	280 mV	72%
MEQ- 120BA-48	18-36V	48 V 2.5A		1%	400mV	76%
MEQ- 100CA-5	37-72V	5V 20A		1%	120mV	68%
MEQ- 100CA-12	37-72V	12V 8.3A		1%	120mV	68%
MEQ- 120CA-24	37-72V	24V 5A		1%	200 mV	70%
MEQ- 120CA-36	37-72V	36V 3.6A		1%	280 mV	72%
MEQ- 120CA-48	37-72V	48V 2.5		1%	400 mV	76%
MEQ- 100GA-5	75-145V	5V 20A		1%	120 mV	68%
MEQ- 100GA-12	75-145V	12V 8.3A		1%	120 mV	70%
MEQ- 120GA-24	75-145V	24V 5A		1%	200 mV	72%
MEQ- 120GA-36	75-145V	36V 3.5A		1%	280 mV	74%
MEQ- 120GA-48	75-145V	48V 2.5A		1%	400 mV	76%

2. Factory profiles

3.Our products are widely used in many industries.
1) LED display
2) Post and telecommunications;
3) Electric power;
4) Instrumentation
5) Semiconductor cooling and heating
6) Medical equipment
7) Monitoring system automatic control and railway signal

4.

5.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Changzhoushi MEQ Electronics Co., Ltd., located in Industrial Park of Xinbei District, Changzhou, Jiangsu Province, is specialized in AC / DC, DC / DC series of switching power supply, LED display, rainproof power supply, waterproof power supply research, development and manufacturing. MEQ is one of China Power Association member units.

Our products are widely used in LED display, communications, electricity, instrumentation, semiconductor cooling and heating, medical equipment, automatic control of monitoring systems and railway signaling and other fields.

The company attaches importance to personnel training and introduction, has a group of high-quality professionals, and specially hired Shanghai Jiaotong University professor regularly come to the company's technical staff for guidance and training.

The company promotes the management of "6S" and takes the lead in passing the ISO9001 international quality certification system with the aim of "Surviving quality and seeking development with efficiency". The products have passed 3C, CE, GS, SGS, PSE, UL, KC and SAA certification.

Company's products are fully loaded with 100% high temperature aging. Product aging pass rate is more than 99% and the annual repair rate less than 3 ‰ .

The company's products are exported to the United States, Germany, Singapore, Turkey, Australia, South Africa and other countries, and in Beijing, Shanghai and other cities in the country established dozens of sales outlets, with perfect quality tracking and after-sales service system. The company can meet your needs in time.

If you can not find the right model, we can customize a special power supply for you.

Hope we can become long-term partners.
