| Prod Model: |
S2100E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Power 380V: |
5.5-220kw |
| The Application: |
Constant Pressure Water Supply, Fan and Pump etc |
| Output Frequency: |
5.5-220kw |
| Protective Structure: |
IP20 |
| Packaging Details: |
Standard Exporting Package |
| Delivery Detail: |
5 Days After Get The Payment |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
Frequency Inverter |
| Brand: |
Machtric |
| Function: |
Constant Pressure Water Supply |
| Output Type: |
1/3 Phase |
| Nature Of DC Power: |
Frequency Inverter |
| Main Circuit Type: |
Frequency Inverter |

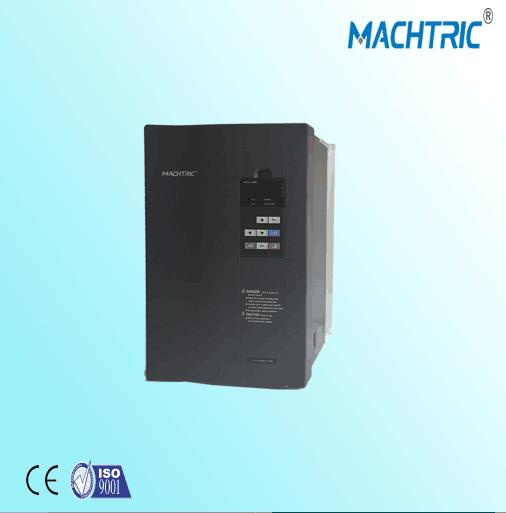

Product Description
Welcome to Machtric Automation Equipment !
Specifications
Built in PID contorl
V/F control
0.1~400Hz
Control up to 4 pumps for constant pressure water supply
|
Items |
S2100 E |
Power
Supply |
Rated voltage, Frequency |
Single phase/Three phase 220V 50/60Hz Single-phase 220V 50/60Hz |
Voltage Range |
380V:330V~440V; 220V:170V~240V |
Output |
Voltage Range |
380V:0~380V; 220V:0~220V |
Frequency Range |
0.10`400.00Hz |
Control method |
V/F control, Space vector control. |
Indication |
Operating status/Alarm definition/interactive guidance: e.g., frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
Control Specifications |
Output Frequency Range |
0.10Hz~400.00Hz |
Frequency Setting Resolution |
Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
Output Frequency Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional Input
Terminal |
Eight multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal |
3 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
Acceleration/deceleration time Setting |
0~-6000s acceleration/deceleration time can be set individually |
Other Functions |
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input:0 to 10V,,0 to 20mA can be selected;
Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
Multi-speed |
Eight multifunction input terminals, 15section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built -in 2group of counters |
Protection/
Warning Function |
Overload |
150%,60 second(Constant torque);120%.60 second (variable torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat, short circuit, over current, and parameter lock and so on |
Environment |
Ambient Temperature |
-10°C to 40°C(non-freezing) |
Ambient Humidity |
Max.95%(non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max. 0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective Structure |
IP20 |
Installation |
Mode |
Below 90KW:Wall Mounted;
110~200KW:Wall Mounted or in Cabinet;
Above 220KW:in Cabinet
|
