| Prod Model: |
SBW-150KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Efficiency: |
Better Than 95% |
| Current Type: |
AC |
| Usage: |
DBW |
| Frequency: |
High Frequency |
| Phase: |
1 Phase, 3 Phase |
Product Description
Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application

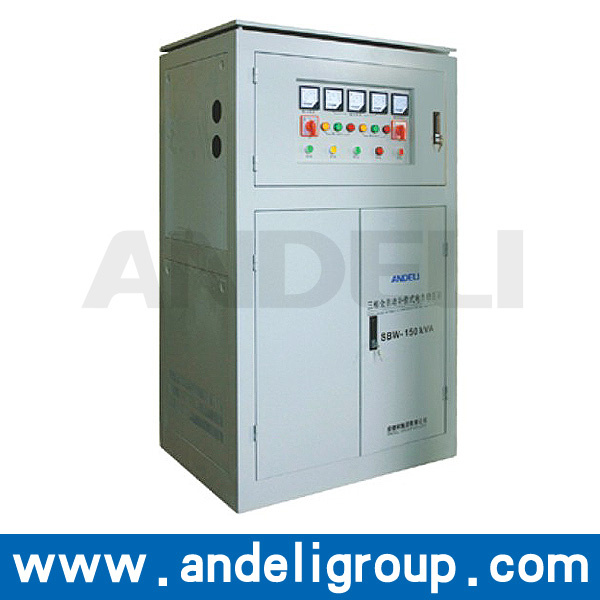

DBW SBW compensated voltage stablilizer is a contact adjustable automatic voltage compen-sation high-power regulating power device. When voltage from supply network is varied or dueto loading current effect, it automatically regulates the output voltage to ensure the normal func-tion of the varied of electric equipments.
|
Input voltage |
Single phase: 220V; Three phases: 380V |
|
Output voltage |
Single phases: 220V± 20% or 220V± 30%
Three phases four-line: 380V± 20% or 380V± 30% |
|
Phase |
Single phase; Three phases four-line |
|
Frequency |
50Hz/60Hz |
|
Response |
within 1 sec. (against 10% input voltage deviation) |
|
Efficiency |
Better than 95% |
|
Ambient temperature |
-10 o C~+40 o C |
|
Waveform |
Non-lack fidelity waveform |
|
Insulation restortion |
Better than 5MΩ |
|
Overload |
Double rated current, one min |
|
Protection |
Overvoltage, overcurrent, feed phases |
|
Type |
Outpower(kVA) |
Outline(cm) |
Weight(Kg) |
Qty/CTN |
|
DBW-20K |
20 |
70 x 50 x 135 |
283 |
1 |
|
DBW-30K |
30 |
70 x 50 x 135 |
310 |
1 |
|
DBW-40K |
40 |
70 x 50 x 135 |
330 |
1 |
|
DBW-50K |
50 |
80 x 60 x 150 |
360 |
1 |
|
DBW-60K |
60 |
80 x 60 x 150 |
380 |
1 |
|
DBW-70K |
70 |
80 x 60 x 150 |
100 |
1 |
|
DBW-80K |
80 |
90 x 70 x 170 |
430 |
1 |
|
DBW-100K |
100 |
90 x 70 x 170 |
480 |
1 |
|
SBW-50K |
50 |
80 x 62 x 135 |
350 |
1 |
|
SBW-60K |
60 |
80 x 62 x 135 |
370 |
1 |
|
SBW-100K |
110 |
85 x 52 x 150 |
420 |
1 |
|
SBW-150K |
150 |
100 x 72 x 170 |
550 |
1 |
|
SBW-180K |
180 |
100 x 72 x 170 |
570 |
1 |
|
SBW-200K |
200 |
100 x 72 x 170 |
630 |
1 |
|
SBW-225K |
225 |
110 x 80 x 180 |
660 |
1 |
|
SBW-250K |
250 |
110 x 80 x 200 |
700 |
1 |
|
SBW-300K |
300 |
110 x 80 x 210 |
740 |
1 |
|
SBW-320K |
320 |
110 x 80 x 210 |
760 |
1 |
|
SBW-400K |
400 |
110 x 80 x 210/2 |
1100 |
2 |
|
SBW-500K |
500 |
110 x 80 x 210/2 |
1500 |
2 |
|
SBW-600K |
600 |
110 x 80 x 210/2 |
2200 |
2 |
|
SBW-800K |
800 |
85 x 100 x 220/3 |
2800 |
3 |
|
SBW-1000K |
1000 |
85 x 100 x 220/3 |
3500 |
3 |
|
SBW-1200K |
1200 |
85 x 100 x 220/3 |
4100 |
3 |
|
SBW-1600K |
1600 |
110 x 110 x 220/4 |
5560 |
4 |
|
SBW-2000K |
2000 |
110 x 110 x 220/4 |
7100 |
4 |
