AC Voltage Stabilizer (Wide Input Range 10kVA - 2000 kVA)

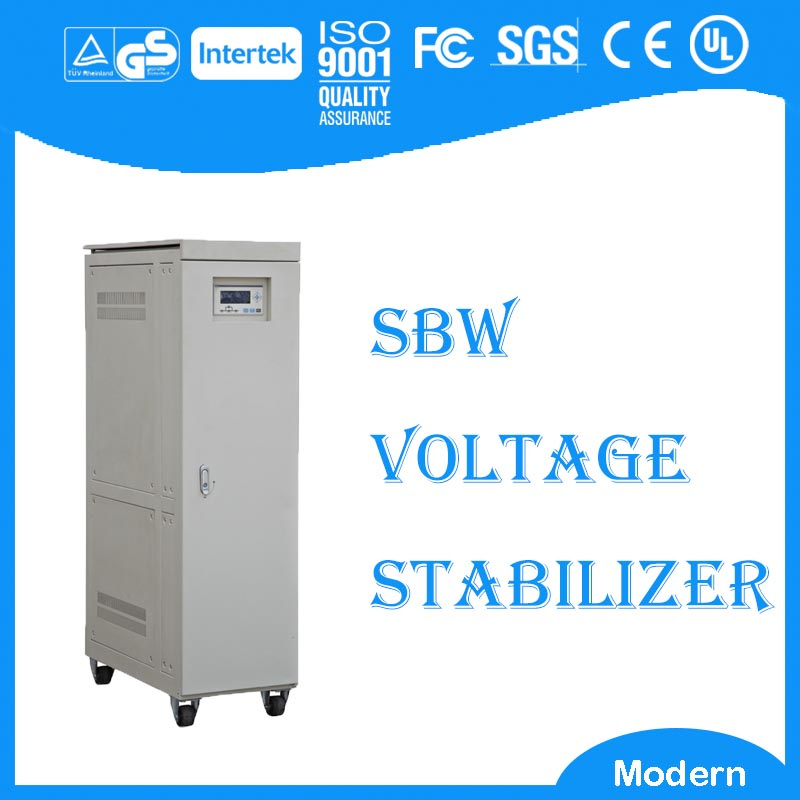

Name: AC Voltage Stabilizer (Wide Input Range 10kVA - 2000 kVA)
Brand: all-electronics-online.com
SKU: 716711385
Availability: InStock
Rating: 4.8 (101 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-CK Series
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Current Type:	AC
Phase:	Three Phase
Frequency:	Industrial Frequency
Brand:	Modern
Usage:	SBW

Product Description

Voltage regulation problems account for more than 90% of the power quality problems seen at most sites. Our Voltage Stabilizers provide protection against mains power sags, surges and brownouts. It is ideal for geographical regions that are subject to inconsistencies in the mains supply, such as Africa, Asia and certain parts of Europe.

In today's world, the cost of electrical power and its quality have become major operating concerns. The continuing increase in the cost of electrical power has heightened interest in energy savings, and poor power quality has been identified as a cause of expensive malfunctions and shutdowns in new high technology equipment.

Our special designed SBWCK series extreme wide voltage stabilizer adopting patent voltage regulator used to cope with input voltage down to 88V, and output voltage regulated to rated 220V without derated input power. Its high cost effective ,reliability, high performance and long lifetime are all backed by a world class organization with decades of mains power experience. It is applied for any load like telecom, medical, industrial, and household applications.

Features
1. Extremely wide voltage regulation range
2. 10-2000 KVA, three phase, rated voltage can be customized
3. Individual regulation of each phase for unbalance load
4. Uniques small dimension

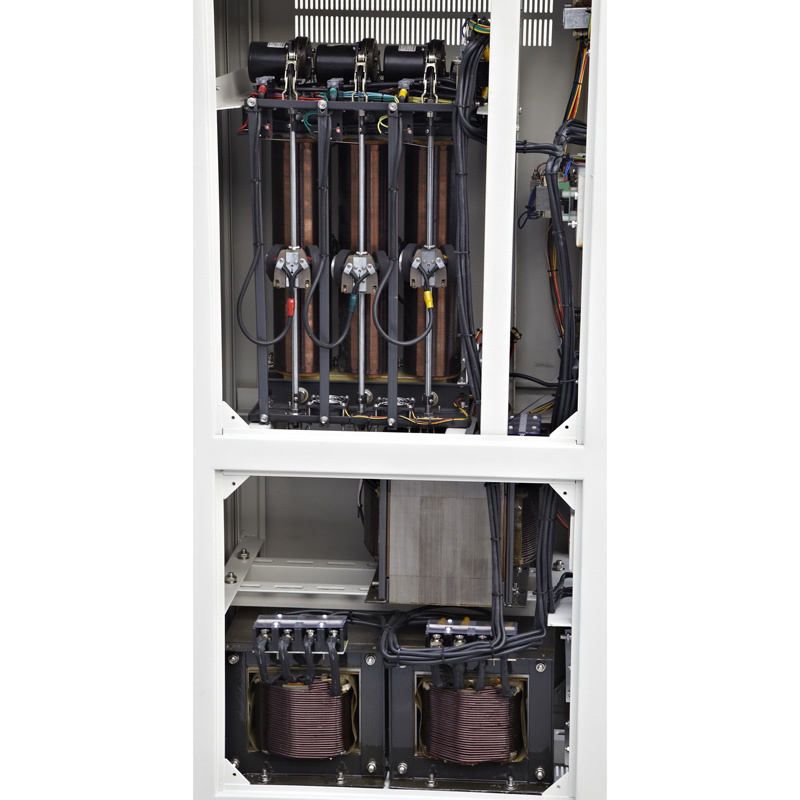

5. Reliable and quiet servo motors
6. Wheels mounted for easy installation
7. Overvoltage and under voltage cut off delay
8. Sine wave output(regardless of input waveform)
9. High mean time between failure(MTBF)
10. By-pass switch available for easy maintenance
11. Auto power-on function on request

Technical Specifications
Nominal system voltage   380V/220V, or other rated voltage
Frequency   50/60 Hz
Input voltage range    88~290V, other input range on quest
Regulation accuracy 2.5% (adjustable,1-5%)
Over voltage cut off 242V (adjustable)
Under voltage cut off   172V (adjustable)
Over voltage cut off delay 4-7 s
Under voltage cut off delay 4-7 s
Ingress protection    IP 20 (outdoor version on request)
Standards fulfilled    CE

Options
Isolation transformer
Surge protector
Outdoor enclosure
Voltage frequency 50 or 60 Hz

Input Voltage	System Voltage
Input Voltage	380/220V	400/230V	415/240V
-60%	88V	92V	96V
-50%	110V	116V	120V
-40%	132V	139V	144V
-30%	154V	162V	168V
-20%	176V	185V	192V
+10%	242V	254V	264V
+15%	253V	266V	276V
+20%	264V	277V	288V
+30%	286V	300V	312V

Wenzhou Modern Completed Electric_Power Equipment Co., Ltd. is one of the longest lasting innovators of Power Quality and Energy Saving Products in China. In an industry where companies come and go, MODERN continues to provide the reliability and continuity you need.

Experienced and Fully Customizable Solutions

As a global exporter with over 30 years expertise in power solution, MODERN design, prototype and manufacture custom power requirements for a wide variety of customer and market. We offer a broad range of electrical products from various transformers and voltage stabilizers to sophisticated energy saving power conditioners, power factor correction and harmonic mitigation products. Our experienced staff of engineers is available to assist you in configuring exactly the right product to meet your specifications. They stand ready to work with complex special applications or simple modifications to our standard product line.

ISO 9001: 2008 Certified Processes

ISO Certification ensures that the best of international manufacturing processes are used for every MODERN product. Our conservative design philosophy, tightly controlled product configuration and consistent manufacturing processes ensure that every our customer gets the highest quality product possible. Because we are strongly committed to quality and customer satisfaction, we test 100% of our product before it ships, and then stand behind our workmanship with industry leading warranties.

Outstanding Service

As your power solution provider, we offer a full service customer support program. Beginning with your initial contact, our thorough application assistance ensures that you select the right product and options for your needs. Technical documentation is always available to help with your planning requirements. Prompt shipment is possible through our efficient manufacturing processes. After shipment, we support our products with a comprehensive warranty and extensive field service program.
