AC Worm Gear Speed Reducer Motor and Stair Climbing Motor with 0.37kw 140rpm 22n. M 10: 1
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
| Power: |
0.37kw |
| Output Speed: |
56rpm |
| Output Torque: |
48n.M |
| Output Shaft Diameter: |
25mm |
| Reduction Ratio: |
25:1 |
| Net Weight: |
9.7kg |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Brand: |
Lectstyle |
Product Description
(1)NMRV AC worm gear motor
Voltage: 220V AC, 380V AC, 115V AC
Phase: three-phase
Power: 0.09KW, 0.12KW, 0.18KW, 0.25KW, 0.37KW, 0.55KW, 0.75KW, 1.1KW, 2.2KW, 3.0KW... ...
Frequency: 50Hz, 60Hz
Efficiency: IE2
Frame size: 80... ... 315
(2)Y motors, three-phase asynchronous induction motors are totally enclosed fan cooled, three- phase squirrel cage induction motors,National universal design Compliant with the relevant standards of IEC34-1 and JB/T9616-1999, Enjoys international interchangeable features.
Y series motors are totally enclosed fan cooled(TEFC),three-phase squirrel cage induction motors.They are newly desinged in conformity with the relevant requirements of IEC standfards.
Y series motor is three-phase squirrel cage induction motor,in national unified design. Its center high, power grade and installation size are in line with the international electric technical commission IEC standard. The product can used in all kinds of mechanical equipment both at home and abroad.
Y series motors are widely used in many places,where combustible,explosive and corrosive gas does not exist,and without any special requirements, such as drilling machine, pumps,fans, mixers, transport machines, food machines, agriculture machines and equipments ect.
Y series three-phase asynchronous motor in conformity with relevant standards of IEC operation performance is good, is widely used in many of the quality and reliability requirement high field, such as: industrial, commercial, construction, water supply and agricultural irrigation and so on.
Y series motors have outstanding performance , such as efficiency , energy saving , high starting torque , low noise , little vibration, reliable operation and easy maintenance etc. widely used in many places,where do not exist combustible ,explosive or corrosive gas,and without any special requirements ,such as machine tools, pumps ,fans ,transport machinery,mixer ,agriculture machinery and food machines etc.| Motor | Model | i Ratio | Output speed | Output torque | Motor | Model | i Ratio | Output speed | Output torque |
| 1400 r/min | n2 rpm | N.M | 1400 r/min | n2 rpm | N.M |
| 4P-0.18Kw | NMRV030 | 7.5 | 187 | 8 | 4P-0.55Kw | NMRV050 | 7.5 | 187 | 25 |
| NMRV040 | 7.5 | 187 | 8 | NMRV063 | 7.5 | 187 | 25 |
| NMRV030 | 10 | 140 | 10 | NMRV050 | 10 | 140 | 32 |
| NMRV040 | 10 | 140 | 10 | NMRV063 | 10 | 140 | 32 |
| NMRV030 | 15 | 93 | 14 | NMRV050 | 15 | 93 | 46 |
| NMRV040 | 15 | 93 | 15 | NMRV063 | 15 | 93 | 46 |
| NMRV030 | 20 | 70 | 18 | NMRV050 | 20 | 70 | 59 |
| NMRV040 | 20 | 70 | 19 | NMRV063 | 20 | 70 | 60 |
| NMRV030 | 25 | 56 | 20 | NMRV050 | 25 | 56 | 71 |
| NMRV040 | 25 | 56 | 23 | NMRV063 | 25 | 56 | 72 |
| NMRV040 | 30 | 47 | 26 | NMRV063 | 30 | 47 | 80 |
| NMRV040 | 40 | 35 | 32 | NMRV075 | 30 | 47 | 85 |
| NMRV050 | 40 | 35 | 32 | NMRV063 | 40 | 35 | 104 |
| NMRV040 | 50 | 28 | 38 | NMRV075 | 40 | 35 | 108 |
| NMRV050 | 50 | 28 | 38 | NMRV063 | 50 | 28 | 123 |
| NMRV040 | 60 | 23 | 34 | NMRV075 | 50 | 28 | 129 |
| NMRV050 | 60 | 23 | 34 | NMRV075 | 60 | 23 | 146 |
| NMRV050 | 80 | 18 | 53 | NMRV075 | 80 | 18 | 180 |
| 4P-0.25Kw | NMRV040 | 7.5 | 187 | 11 | 4P-0.75Kw | NMRV050 | 7.5 | 187 | 33 |
| NMRV050 | 7.5 | 187 | 11 | NMRV063 | 7.5 | 187 | 33 |
| NMRV040 | 10 | 140 | 14 | NMRV050 | 10 | 140 | 44 |
| NMRV050 | 10 | 140 | 14 | NMRV063 | 10 | 140 | 44 |
| NMRV040 | 15 | 93 | 20 | NMRV050 | 15 | 93 | 63 |
| NMRV050 | 15 | 93 | 21 | NMRV063 | 15 | 93 | 63 |
| NMRV040 | 20 | 70 | 26 | NMRV063 | 20 | 70 | 80 |
| NMRV050 | 20 | 70 | 26 | NMRV050 | 20 | 70 | 81 |
| NMRV040 | 25 | 56 | 31 | NMRV063 | 25 | 56 | 99 |
| NMRV050 | 25 | 56 | 32 | NMRV063 | 30 | 47 | 109 |
| NMRV040 | 30 | 47 | 36 | NMRV075 | 30 | 47 | 116 |
| NMRV050 | 30 | 47 | 36 | NMRV063 | 40 | 35 | 143 |
| NMRV040 | 40 | 35 | 44 | NMRV075 | 40 | 35 | 147 |
| NMRV050 | 40 | 35 | 45 | NMRV075 | 50 | 28 | 176 |
| NMRV050 | 50 | 28 | 53 | 4P-0.75Kw | NMRV090 | 50 | 28 | 184 |
| NMRV050 | 60 | 23 | 60 | NMRV075 | 60 | 23 | 200 |
| NMRV050 | 80 | 18 | 65 | NMRV090 | 60 | 23 | 212 |
| NMRV063 | 80 | 18 | 77 | NMRV090 | 80 | 18 | 257 |
| 4P-0.37Kw | NMRV040 | 7.5 | 187 | 16 | 4P-1.1Kw | NMRV063 | 7.5 | 187 | 49 |
| NMRV050 | 7.5 | 187 | 16 | NMRV075 | 7.5 | 187 | 49 |
| NMRV040 | 10 | 140 | 21 | NMRV063 | 10 | 140 | 65 |
| NMRV050 | 10 | 140 | 21 | NMRV075 | 10 | 140 | 66 |
| NMRV040 | 15 | 93 | 30 | NMRV063 | 15 | 93 | 93 |
| NMRV050 | 15 | 93 | 31 | NMRV075 | 15 | 93 | 95 |
| NMRV040 | 20 | 70 | 39 | NMRV063 | 20 | 70 | 121 |
| NMRV050 | 20 | 70 | 39 | NMRV075 | 20 | 70 | 122 |
| NMRV050 | 25 | 56 | 47 | NMRV063 | 25 | 56 | 149 |
| NMRV050 | 30 | 47 | 54 | NMRV075 | 25 | 56 | 149 |
| NMRV050 | 40 | 35 | 66 | NMRV063 | 30 | 47 | 168 |
| NMRV063 | 40 | 35 | 69 | NMRV075 | 30 | 47 | 170 |
| NMRV050 | 50 | 28 | 73 | NMRV075 | 40 | 35 | 216 |
| NMRV063 | 50 | 28 | 81 | NMRV090 | 40 | 35 | 225 |
| NMRV050 | 60 | 23 | 87 | NMRV090 | 50 | 28 | 271 |
| NMRV063 | 60 | 23 | 95 | NMRV090 | 60 | 23 | 311 |
| NMRV063 | 80 | 18 | 114 | NMRV090 | 80 | 18 | 365 |
(3)NMRV series worm-gear speed reducer is a new-generation of products developed by our company on the basis of perfecting WJ series products with a compromise of advanced technology both at home and abroad, its main features are as follows:
1.Made of high-quality aluminium alloy, light in weight and non-rusting.
2. Large in output torque.
3.Smooth in running and low in noise.
4.High in radiating efficiency.
5.Good-looking in appearance, durable in service life and small in volume.

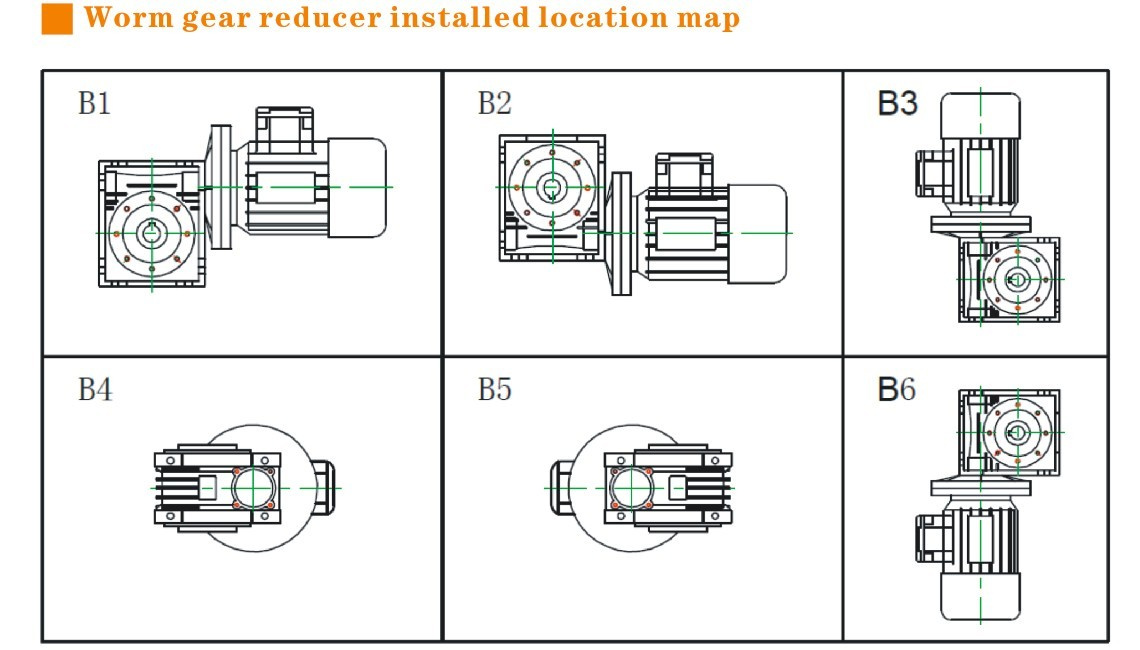

6.Suitable for omnibearing installation.
This reducer is widely used in food processing machinery, printing and packaging machinery, envirnment protection machinery, transportation equipment, electrical equipment and other industries
NMRV series worm-gear reducer, speed reducer worm is widely used in chemical,food packing,textiles pharmaceutical ,printing and other industries. It includs worm- gear box and electrical parts. Motors can be made in accordance with cistomers'requirement with electromagnetic brake or without electromagnetic brake.
Our boss has opened two factories and one export trade company, they are motor factory, chain drive co. Ltd and trade company, they belong to the same boss, but there are several partners, so our business is as below:
1. Planetary reducer, Motor, and transmission parts etc, these are fabricated from our motor factory.
2. Roller chain, conveyor chain, flat top chain, silent chain, drag chain etc, these are supplied from our chain drive factory.

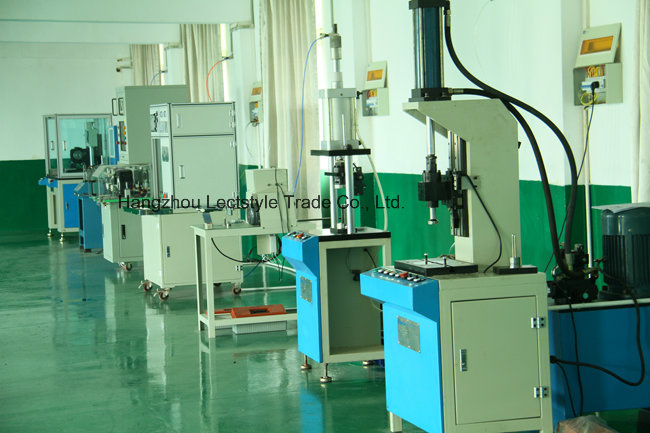

Our processing workshop:

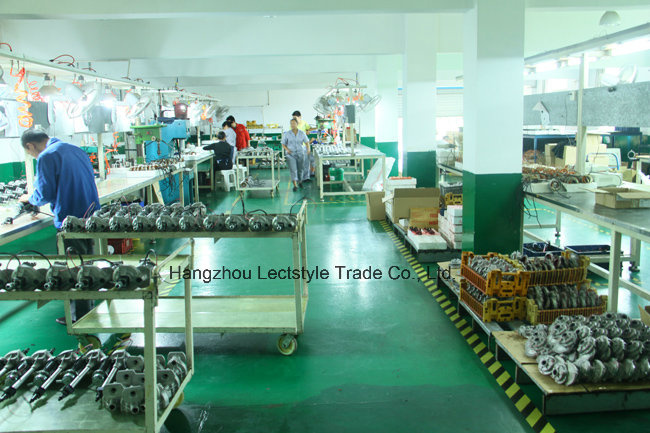

Our assembled workshop:
Our inspection workshop:
HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.
Our company has got the right of import and export from the Government department.
Therefore, hope to get your feedback soon.
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
