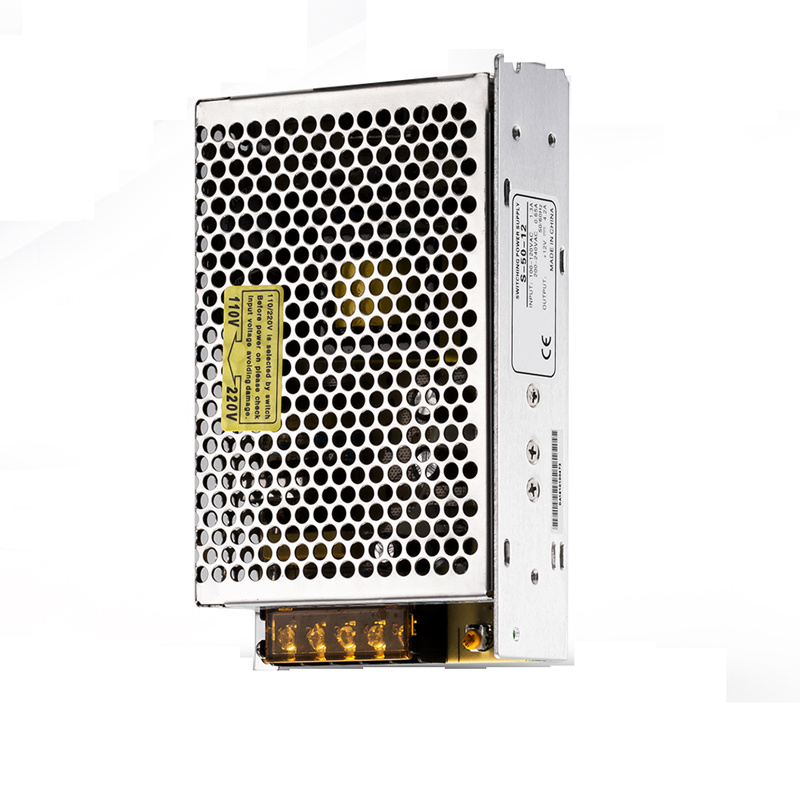

AC110V/220V to DC Universal Regulated 50W 12V Switch Power Supply

Name: AC110V/220V to DC Universal Regulated 50W 12V Switch Power Supply
Brand: all-electronics-online.com
SKU: 820959035
Availability: InStock
Rating: 4.9 (126 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

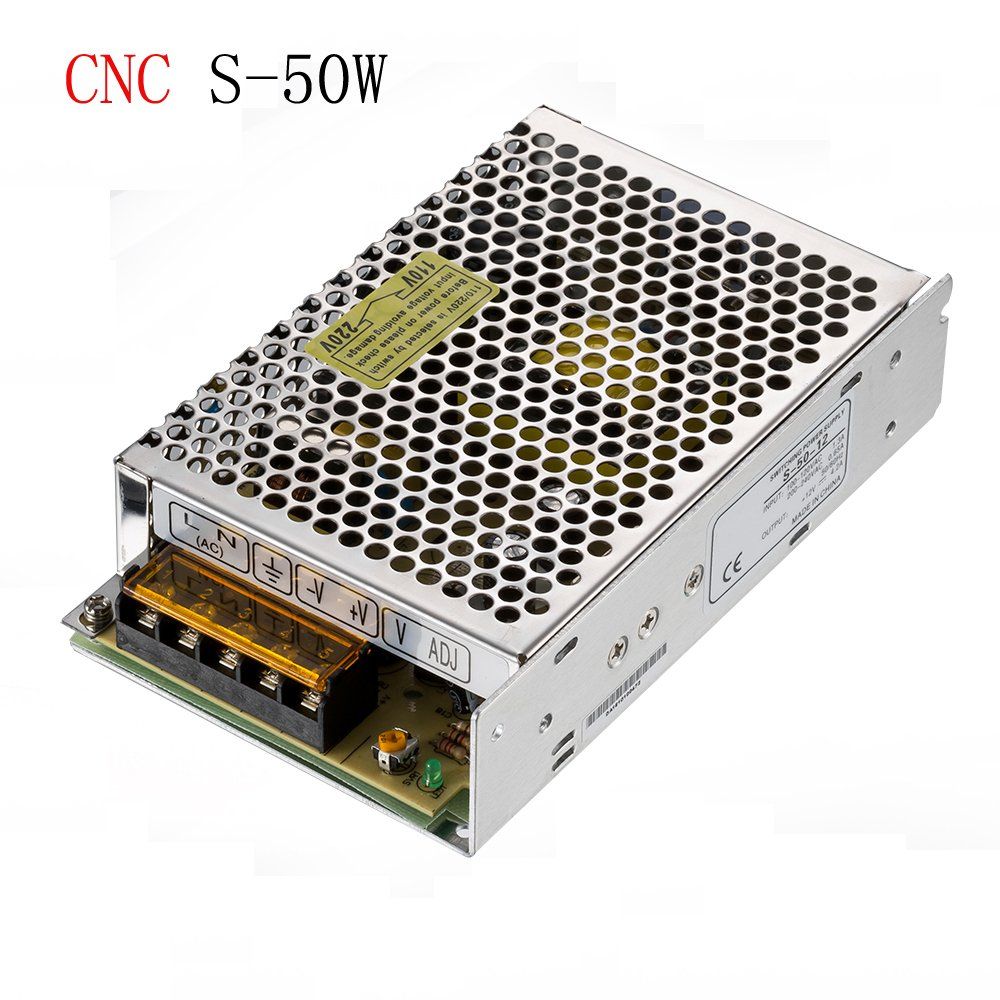

Prod Model:	S-50W
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CCC
Power Supplying System:	Power
Brand:	CNC

Product Description

AC110V/220V to DC Universal regulated 50w 12v switch power supply

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Model	S-50-5	S-50-12	S-50-15	S-50-24

Specification
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	10A	4.2A	3.4A	2.1A
Output current range	0~10A	0~4.2A	0~3.4A	0~2.1A
Wave and noise(Note:3)	75mVp-p	60mVp-p	60mVp-p	50mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	50W	50.4W	51W	50.4W
Efficiency	71%	78%	78%	80%
Adjustable range for DC voltage	+10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC
Input current	1.3A/115V 0.65A/230V
AC Inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C(Refer to output load derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	159X97X38mm (LWH)
Weight	0.5kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
