AC220 V Time Relay Trigger Delay Time Cycle Switch Module Time Delay Relay

SPECIFICATION
.Product name:YYC-4S
Input voltage:AC55V-270V(AC22-V,110V)
Output power:10A
Timing range:0.01~999minutes

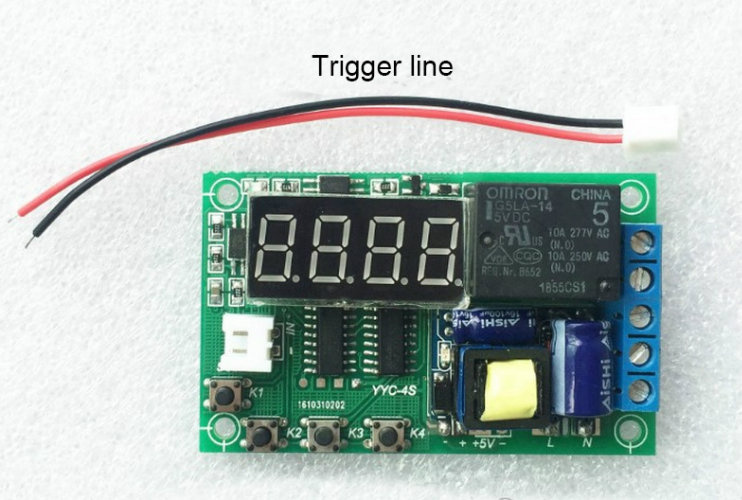

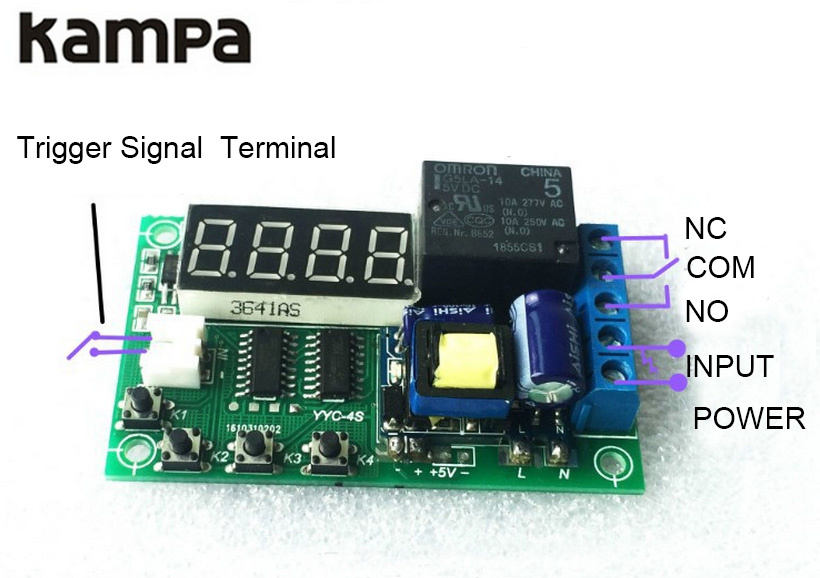

Terminal port introduction:(trigger line)
1.AC :Input power
2.IN:Signal input terminal port(nagetive trigger)
3.NO:Relay normally open port) Relay suspension before actuaton.Connect to COM after actuation
4.COM:Commen connect port
5.NC:relay normally  close,Relay connect to COM before actuaton.relay suspension after actuation
