AC24V 12V Industrial Radio Remote Controller for Crane F24-10d
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
F24-10D |
| Product Name: |
Industrial Wireless Radio Remote Control |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature Range: |
-35ºC-----------+80ºC |
| Certificates: |
Ce,FCC,ISO9001:2008 |
| Application: |
Lifting Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
3V |
| Battery Type: |
AA Battery |
| Material: |
Glass Fiber |
Product Description
Product Description

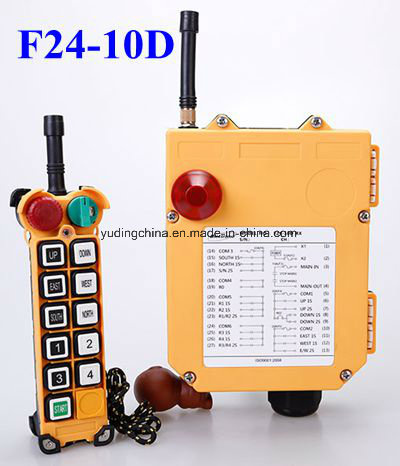

Industrial Wireless Remote Control Switch F24-10D
Company Advantage:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.
Products Features:
* 10 Single/Dual speed push button+1start button+1 Emergency stop button.
* Control points are up to 10/16.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Power button can be set start, speed up, jump strokes, ordinary etc.
* Spare 1-2, 3-4 key can be set ordinary, interlock, jump strokes, switch etc.
Basic Infor:| Application | Overhead cranes, hoist ,chain hoist and other industrial machine. |
| Frequency | 310.0325~331.165Mhz |
| Frequency generation: | Crystal (plug in) |
| Channel | 80 |
| Channel Spacing | 0.2675MHz |
| Control motions | 16 |
| Control distance | Up to 100m |
| Certificates | CE, FCC, ISO9001:2008 |
| Number of push button | 10 Single/Double speed push button+1 start+1 Emergency stop button. |
| Unique code | Over 4.3billon unique ID codes . |
| Working temperature | -35°C ~ +80°C |
| Enclosure protection class | IP65 |
| Transmitter power | AA-size batteries |
| Receiver power | AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V |
| Output capacity | Full sealed relay output with 5 amperes |
| Warranty | 1 year |
| Material | glass fiber |
Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
About us:
HeNan Dirk Electronics Corp., Ltd is an industrial radio remote controls manufacturer in china .established in August, 2010,With more than 10 years experience on this industrial remote control system business area. headquartered in Zhengzhou, Henan province.
Dirk has so many experts in the industrial radio remote controller area to assure workers safety and productivity , Yuding are becoming one of the leading companies in this industry in china.
Our main products is :F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control .all these remote controls are easy to operate to keep workers safety and productivity.All These products are CE & FCC Certificate . Quality is company's life. From the raw material testing, manufacturing, aging test and assembly , Each process are operate according to ISO9001:2008 & international quality control system to guarantee the products quality.competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 provinces.we also have built long-term business relationship with the foreign customers.
Notes:
If not using, you need to remove the battery compartment battery.
1.Can I add my logo on the this product label?
Yes.
2.Are you the factory or one trading company?
We are a factory. We often collaborate with many foreign client.
3. How about the package?
Normally we packed 1 set in a box, 6 sets or 12 sets in a carton
4. If one of the transmitter or receiver is damaged, can I buy it?
Yes.
Certificate:
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
