AC400V 690V 160A-630A Disconnector Fuse Type Isolator Switch

Name: AC400V 690V 160A-630A Disconnector Fuse Type Isolator Switch
Brand: all-electronics-online.com
SKU: 734305522
Availability: InStock
Rating: 4.4 (30 reviews)

Price:	US $ 5-15/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FHB
Name:	Fuse Type Isolator Switch
Pole:	3p
Rated Current:	160A 250A 400A 630A
Rated Voltage:	AC400V, 690V
Certificate:	Ce
Color:	White
Frequency:	50Hz
Material:	Plastic Copper
Rated Insulation Voltage:	800V
Rated Limit Short-Circuit Current:	50ka
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage
Standard:	Ce ISO9001

Product Description

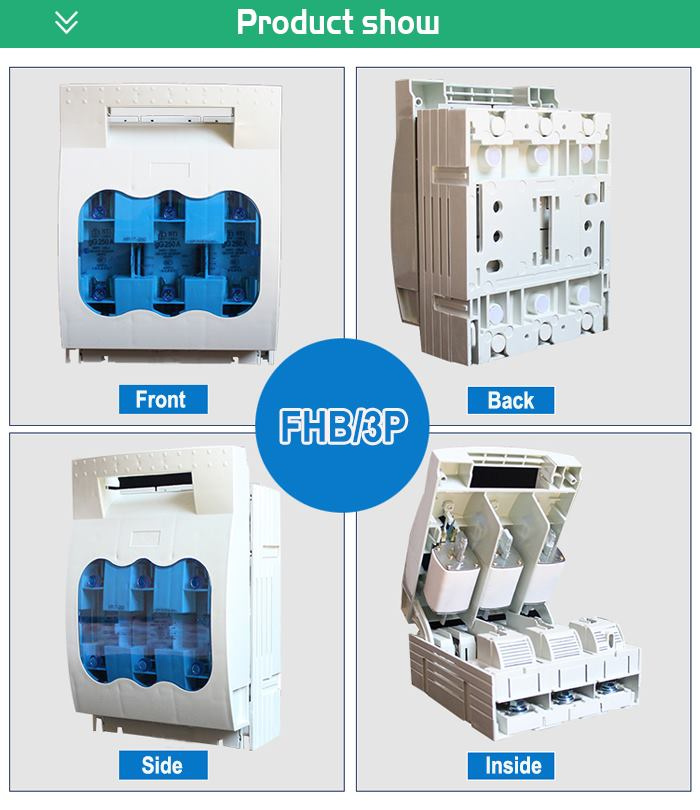

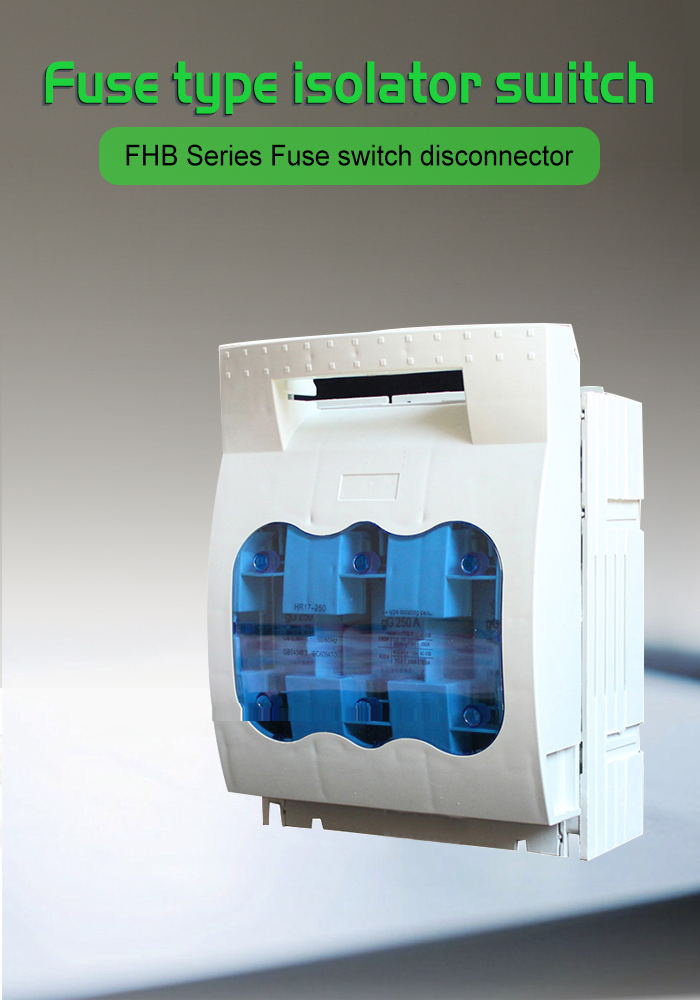

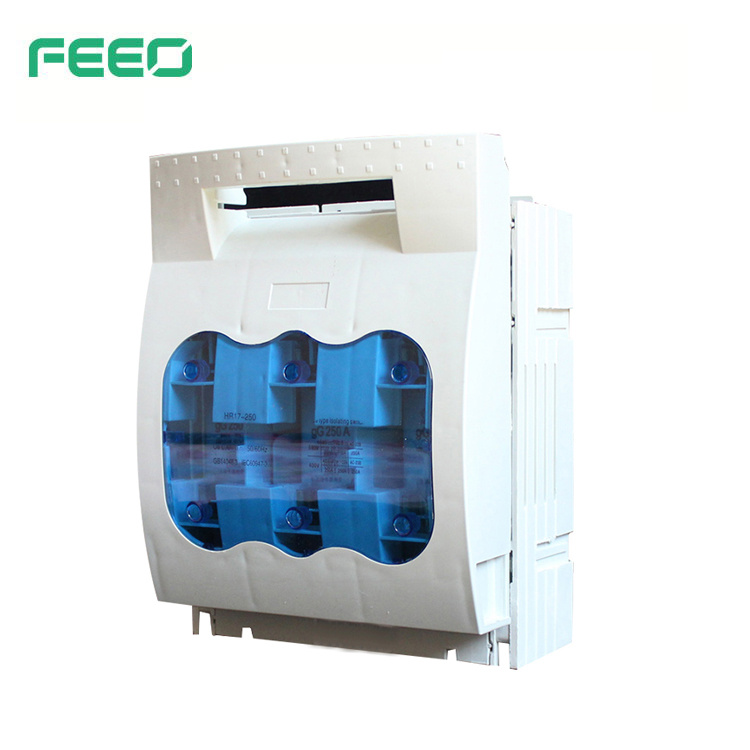

AC400V 690V 160A-630A disconnector Fuse type isolator switch

Product Description
Fuse type isolator switch Application:

FHB series fuse type isolator is a product with advanced international level in the middle of the 90s. The rated voltage is 800V, rated voltage to 660V, rated current up to 630A, rated frequency 50Hz, power distribution and electric circuit high short-circuit current, used as power switch, isolation switch and emergency switch and circuit protection purposes, but generally not directly as a single motor for opening and closing.

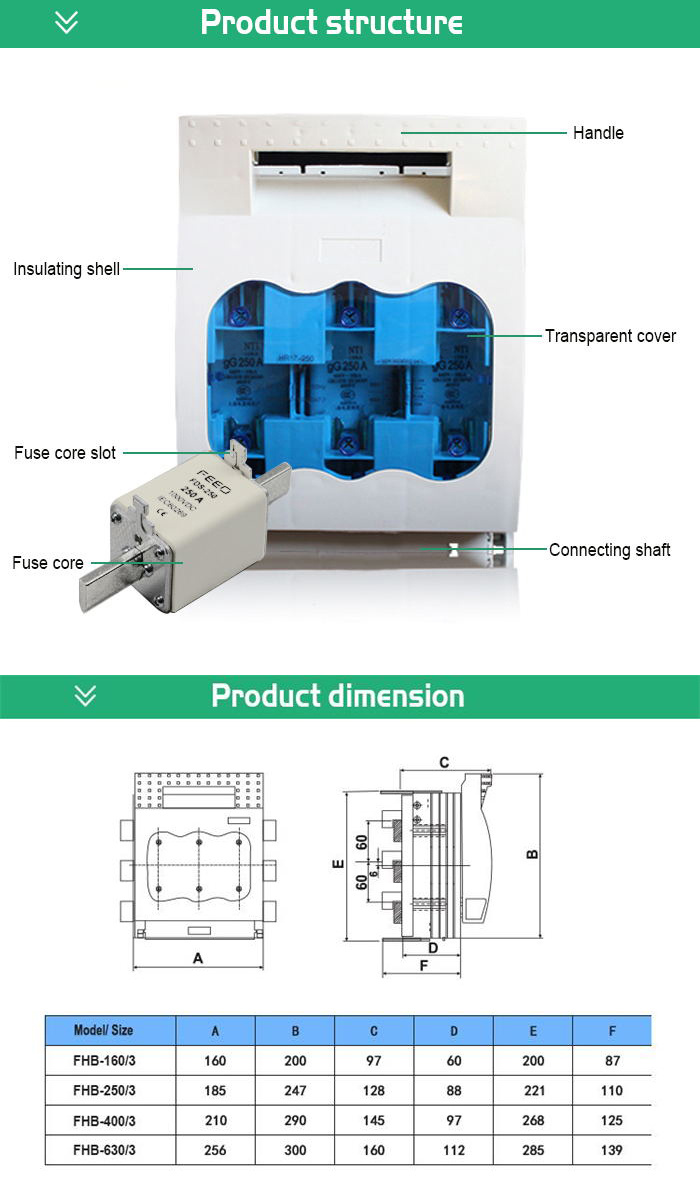

Fuse type isolator switch Parameters:

Convention heating current Ith		160A	250A	400A	630A
Rated insulation voltage Ui		800V
Rated operating voltage Ue		AC400V, 690V
Rated frequency		50HZ
Rated connection capacity (A r.m.s)		10Ie
Rated breaking capacity (A r.m.s)		8Ie
Rated limit short-circuit current (r.m.s)		50KA
Rated operating current	400V/AC-23B	160A	250A	400A	630A
	690V/AC-22B	100A	200A	315A	425A
Mechanical life (times)		5000	3000	2000	1500
Electric life (times)		1000	600	400	300
Weight (3P) kg		1.2	3.6	4.8	6.5
Auxiliary micro switch main parameters		50HZ,AC-15,230V,3A

Packaging & Shipping
Fuse type isolator switch Package:
Standard export carton packing

Fuse type isolator switch Delivery Time:

3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Fuse type isolator switch Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

Company Information

YUEQING FEEO ELECTRIC CO.,LTD.

is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.

FAQ

Q: If I'm interested in your Fuse type isolator switch when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 24hours.

Q:Can I get a sample before the order because I really don't how is your Fuse type isolator switch quality?

A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!

Q:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your Fuse type isolator switch?

A:We offer one year warranty for our customer.
