AC450V/550V, Lighting Capacitor, Fishing Lamp Capacitors with UL

Name: AC450V/550V, Lighting Capacitor, Fishing Lamp Capacitors with UL
Brand: all-electronics-online.com
SKU: 810995115
Availability: InStock
Rating: 4.9 (37 reviews)

Price:	US $ 0.55-3.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB65
Item:	Oil Filled Motor Run Capacitor
Used:	on Airconditioner ,Motor Compressor
Certificate:	UL ,Ce ,RoHS ,ISO9001 ,IEC60252
Life Time:	30000 and 10000 Hours
Service:	OEM and ODM Service
Delivery Time:	2 Weeks
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-100UF

Product Description

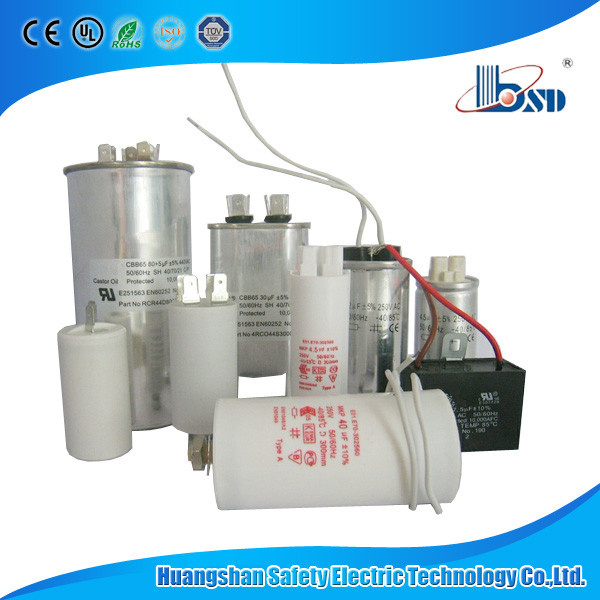

CBB65 series motor run capacitor (oil filled capacitors ) with UL ,CE ,ROHS ,IEC60252 certificate .

Applications:

Run starting in household electric appliances air conditioner,

refrigerator which demand 50/60Hz AC power supply Have

safe protection constrution.

Specifications

Climatic

category

Rate voltage

Testing voltage

T-T

Testing voltage

T-C

Capacitance

tolerance

Dissipation

factor

-25/+70/21

-40/+85/21

370/440VAC

1.75Un/5S

(2Un/5S)

2000V.AC/5s

±5%

(±10%)

≤0.002

(100Hz)

Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD

Dimension(mm):D: Φ40-Φ60,H:60-150

Reference standard:UL810,IEC252,EN60252,GB3667

Certificate,UL 10,000AFC,CE ,ROHS ,ISO9001-2008

Safety grade:P1,P2.

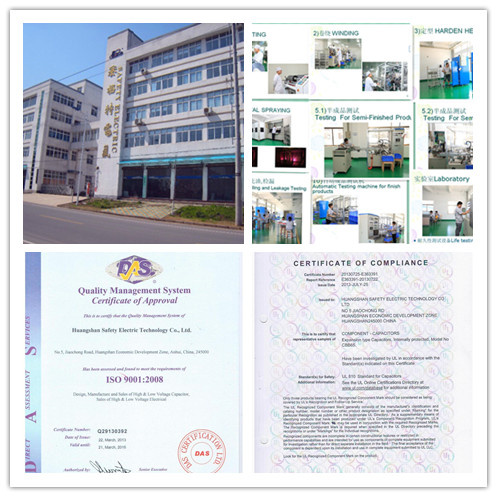

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

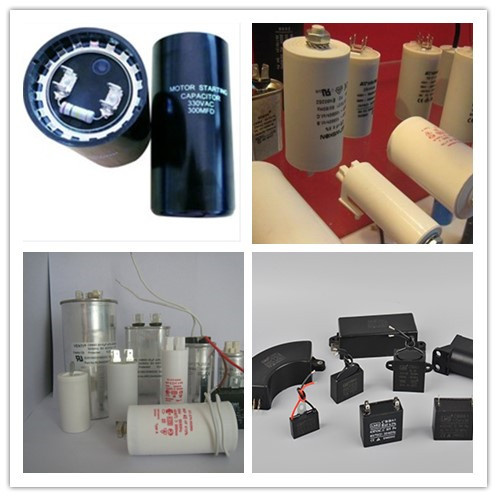

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
