Acb Air Circuit Breaker

Name: Acb Air Circuit Breaker
Brand: all-electronics-online.com
SKU: 824946225
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	US $ 3500/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST45(DW45)
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CE

Product Description

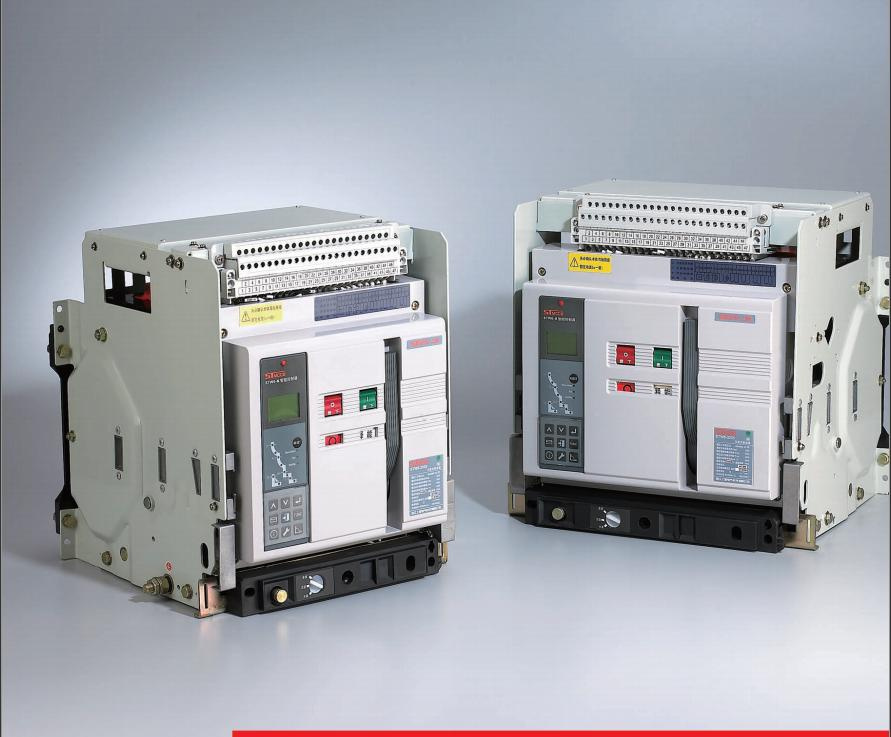

DT45(DW45) series intelligent breaker(ACB) is applicable in the distribution network of AC 50Hz, rated voltage

of 400V and 690V and rated current from 630A~6300A, to distribute electric energy protection

circuit and prevent power equipments from harm of overload, under-voltage,short circuit and

single-phase earthing etc.

Provided with intelligent protecting function and precise selective protection, breaker can enhance

the dependability of power supply and avoid the unexpected power cut.

This product accords with the standard of IEC60947-2.

Keyword:3P,4Pole, small volume, FH:Fixed type, DH:drawable type, Electric and manual operation,
Intelligent controller:L,M,H, under voltage instantaneous(delay) release, and shunt release

Main Datasheet

Frame size rated Current inm(A)	Rated Current InA	Rated Insulation Votlage (V)	Rated limit short-circuit breaking Capacity Icu(kA)		Rated operating short-circuit breaking Capacity Icu(kA)		Rated short-time withstand Current IcwkA(1s)
			400V	690V	400V	690V
2000	630	690	80	50	50	40	50
	800
	1000
	1250
	1600
	2000
3200	2000		100	65	65	50	65
	2500
	3200
4000	3200		100	65	65	50	65/80
	3600
	4000
6300	4000		120	80	80	70	85/100

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
