Acc Working&Fuel&Door Open Alarm GPS Tracking System Tk103 for Vehicle Fleet Management
| Price: |
US $ 17.5-19.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
TK103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ce FCC |
| Warranty Time: |
1 Year |
| Size: |
83*54*26mm |
| Weight: |
120g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Voltage: |
12 V -24V |
| Backup Battery: |
Chargeable 3.7V500mAh Polymer Li-Battery |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Chip: |
SiRF |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
None |
| Model: |
103A |
| Screen Size: |
No Screen GPS Tracker |
| Carrier Frequency: |
None |
| Brand: |
Coban |
| Certification: |
Ce, FCC |
Product Description
ACC working&fuel&door open alarm GPS tracking system TK103 for vehicle fleet management

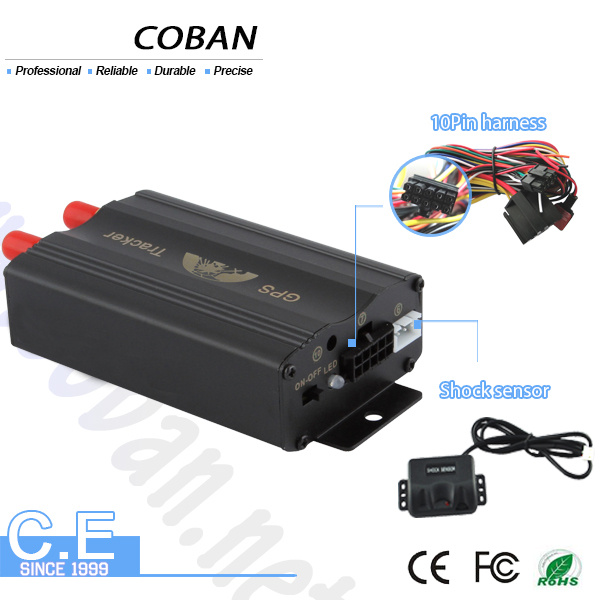

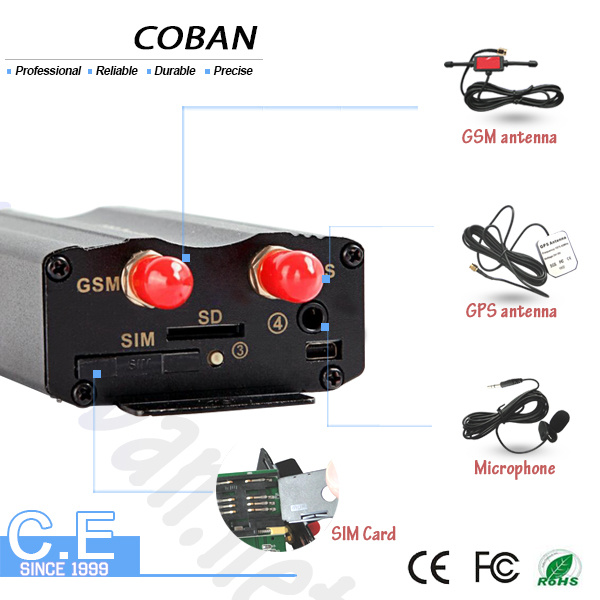

Model: TK 103A GPS Tracker
TK 103A tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals. The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit. This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.
Function Description:

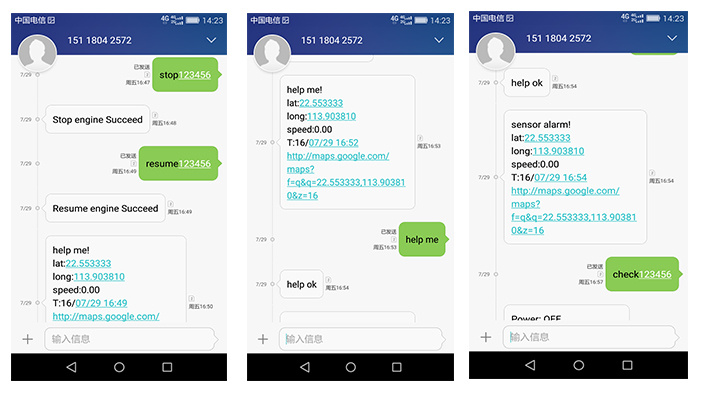

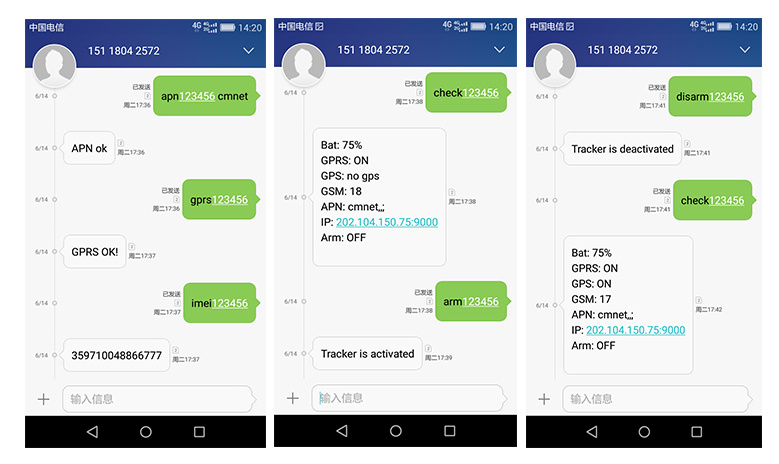

1.Positioning and Tracking: Through the on-line Positioning Platform or calling the gps tracker via your mobile phone,it will reply a SMS including longitude and latitude and a google map link,open this link,you can see the vehicle location on the google map.
2.Get location in real street/address name, send "address+password" to the tracker,it will reply you the
SMS including phsical street/ address. For example: No.8, Guankou 2nd Rd., Nantou, Nanshan district, Shenzhen, Guangdong, china. You must set up the APN of your local GSM network for the SIM card in tracker first before using this function.
3. Location Based Service. when the vehicle is drove into a place that can't receive GPS signal such as underground parking lot, the tracker will automatically switch to LBS mode and send GPS blind alert to the authorized phone number.
4. Remote Engine-stop and Resume in case of vehicle theft: you can control the oil and circuit via the unit by SMS in anywhere and anytime. so you can retrieve stolen vehicle,cars.
5. Tracking function by timing and frequency.
6. Authorized number added and deleted function.(Maximum 5 numbers supported)
7. Support hidden alarm and monitor function.
8. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.
9. Door / ACC Alarm: When someone stole your car and start the ignition,you will get a SMS alert.
10. Movement alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
11. Alarms:
Over speed alarm;
Power supply disconnection alarm;
Low batttery alarm function;
GPS blind area alarm
ACC working alarm
Shock alarm
Alarm without GSM network service etc
12. Check the vehicle status
13.Set up DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
14. Less GPRS traffic(save money mode)
15. Automatic update positions of vehicle turns
Technology parameters:| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APPIt is ok to track 10, 000PCS units in platform at one time!*Track by SMS with latitude and longitude
Application
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business
1)Live Fleet Tracking Systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost Employee & Vehicle Efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto Theft Security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
Waranty:
- All products have been strictly quality checked in house before packing
- All products have been well packed before shipping
- One year warranty is provided
- We will bear maintenance cost during warranty
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
