Access Floor Outlet Boxes

Name: Access Floor Outlet Boxes
Brand: all-electronics-online.com
SKU: 698161055
Availability: InStock
Rating: 4.8 (24 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	with Multi-Switch
Style:	Multiple Socket-Outlet
Hole-Digit:	6 Digits
Application:	Residential/General-Purpose
Certification:	CE
Color:	Black
Customized:	Customized
Installation:	Floor Socket
Housing Material:	ABS

Product Description

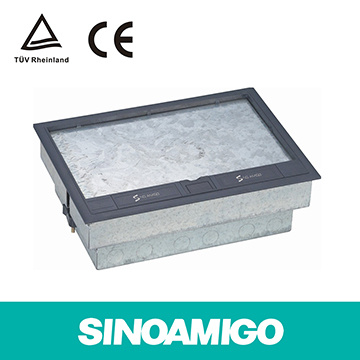

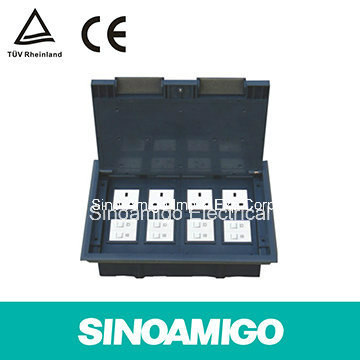

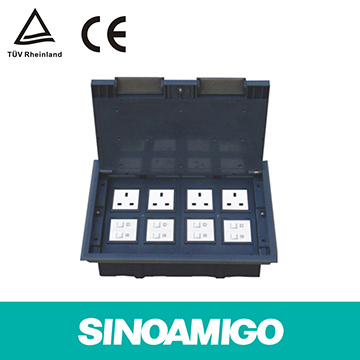

Access Floor Service Outlet Boxes

Model No: SCF-245

Advantages and Features:
1. Whether used in wood, concrete, or raised floors, the Evolution Series Floor Box installs with ease.
They can be installed before or after the floor covering has been put down and they are fully adjustable pre- and post-concrete pour.
2. Sockets uprage easily. Flexibility of inside plate for sockets and swtich installation
3. Lid moulded from high impact polycarbonate
4. Easy grip for lifting handle design
5. Clamp fixing for easy and fast installation

Specifications:
Panel size: 245mm x225mm
Base case size: 189.5mm x 189.5mm x 70mm (L. W. H)
Panel Material: PVC & Ga-Steel
Available accessories: Type 45 or Switchpanel
Module capacity: Can fit 12 modules

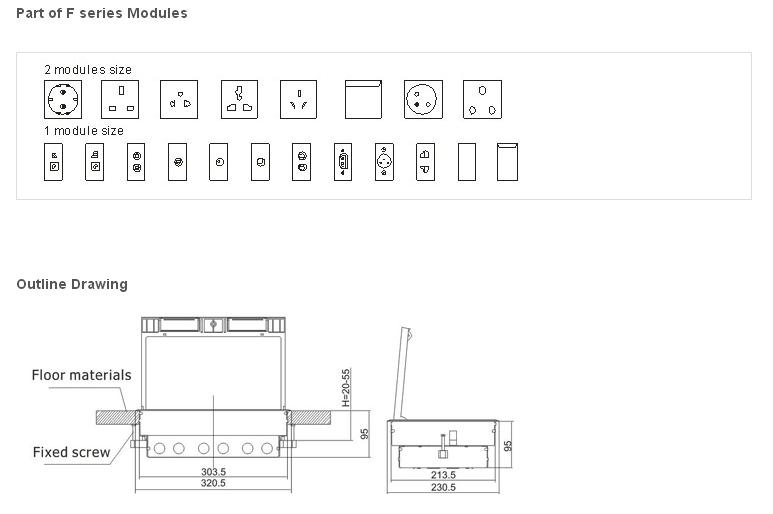

Model	SCF-320P
Model	SCF-320PP
Panel material	ABS ( SCF-320P& SCF-320PP)
Base material	Galvanized Steel(SCF-320P) ABS (SCF-320PP)
Module capacity	16 Modules (Max.24 modules)
Panel Size	320.5mm x230.5mm
Base case size:	303.5mm x 213.5mm x 95mm (L.W.H)
Cutout size	310*220mm
Panel concavity depth	8mm
Special note: base box height is adjustable 76-110mm
