Shenzhen Eelink Communication Technology Co., Ltd. >> Accessories for GPS Tracker Including Sos Cable/Relay/Microphone (Optional)

Accessories for GPS Tracker Including Sos Cable/Relay/Microphone (Optional)

Accessories for GPS Tracker Including Sos Cable/Relay/Microphone (Optional)
Price: US $ 1.99-2piece
Trade Terms: FOB,CFR,EXW
Min Order: 100piece
Pay Type: L/C,T/T
Prod Model: Sos cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number: Relay, Mic, Sos
Color: Black
Weight: 10g
GSM Frequency: 850/900/1800/1900MHz
Working Voltage: 12VDC/24VDC/36VDC

Product Description

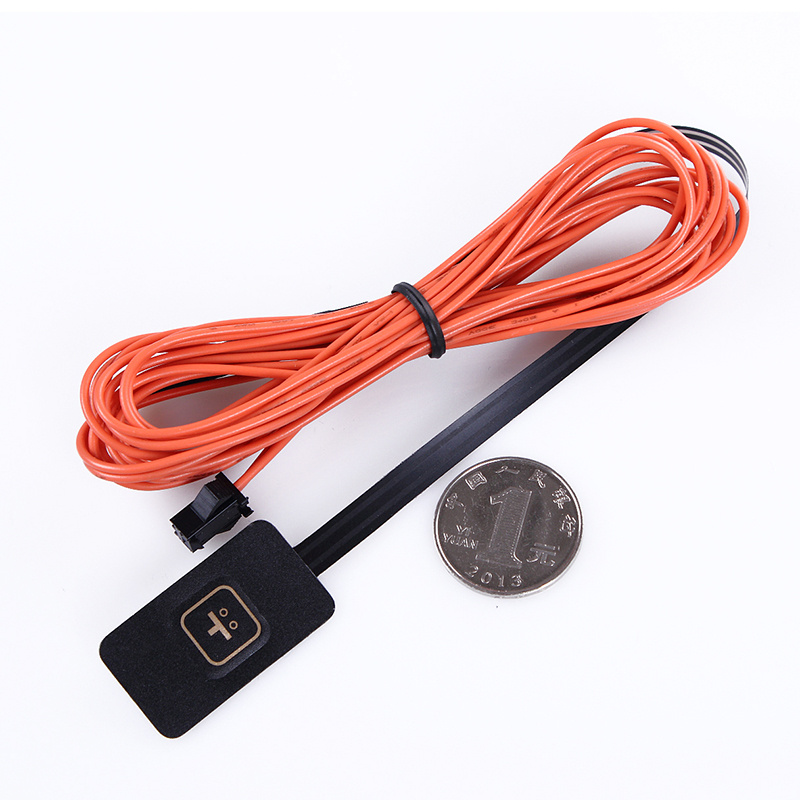

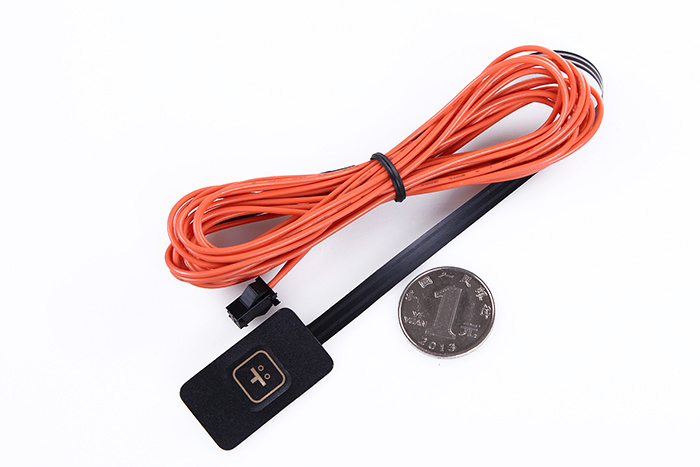

Accessories (Optional)


Relay/ Microphone/SOS

Relay: To control and cut oil &engine
Microphone: To listen in
SOS: SOS alarm


Product Features

*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage: 6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone APP platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle...
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install

Alarm Type

Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)


Function Extension

Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Main Function
BrandEelink
ModelTK116
Quantity1 piece(s)
ColorBlack
MaterialABS
NetworkGSM
Band850\900\1800\1900 MHz
SIM Card Qty.one SIM
Tracking Information MethodMonitoring and controlling platform
Power SupplyDC 6~36V
GPS ChipSIRF
GPS Sensitivity-163 dB
GPS Channel20
Position Accuracy10 m
Altitude Limit18000 m
Hot Start3 seconds
Warm Start15 seconds
Cold Start60 seconds
SOSYes
Geo-fenceYes
Vibrating AlertsYes
Remote MonitoringYes
Engine Cut OffYes
Realtime MonitoringYes
Track PlaybackYes
ACC Anti-TheftYes
Overspeed AlertsYes
Low Battery AlertsYes
GPS Blind Area AlarmYes
Voice CallNo
Waterproof FunctionYes
Waterproof RateDaily user water resistant
Working Temperature- 20 ~7 0 'C
Working Humidity20 %~ 80 %
Manufacturer's Warranty12 Months excluding physical damages (see specifications for terms and details)
CertificationCE
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.

Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.

We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
