Accurate Distance Measuring Position Electronic Sensor for Woodworking Mechanical

Name: Accurate Distance Measuring Position Electronic Sensor for Woodworking Mechanical
Brand: all-electronics-online.com
SKU: 827320445
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTF-1700mm
Repeatability:	0.01mm
Working Stroke:	75-2500mm
Max Current:	10 a
Max Voltage:	42 V
Product Name:	Woodworking Mechanical Sensor
Material:	Aluminum Alloy

Product Description

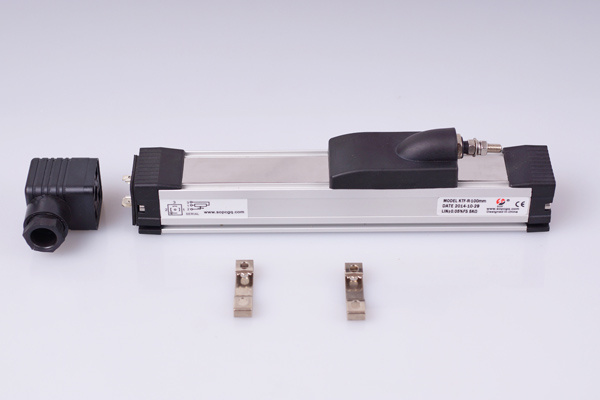

Accurate Distance Measuring Position Electronic Sensor for Woodworking Mechanical

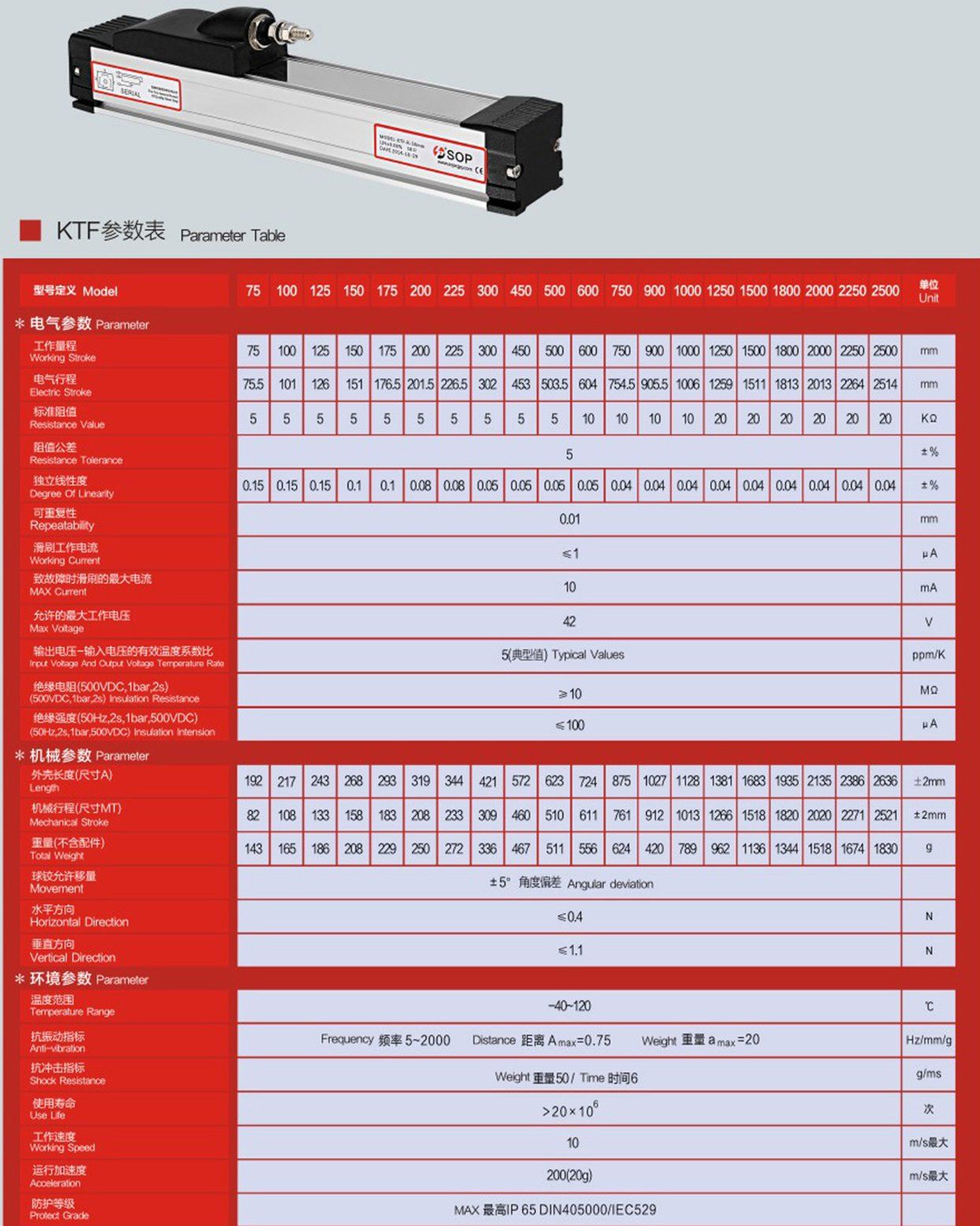

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-2500	-40~120	≤0.4	≤1.1

KTF is a versatile slider linear displacement-free design, particularly adapted to reduce mechanical installation dimensions of length, suitable for application of larger stroke

Product feature:
No pole design
Spherical
Usage life is longer, Times could reach fifty million
Non-linearity smaller
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65(install down is ip57)
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

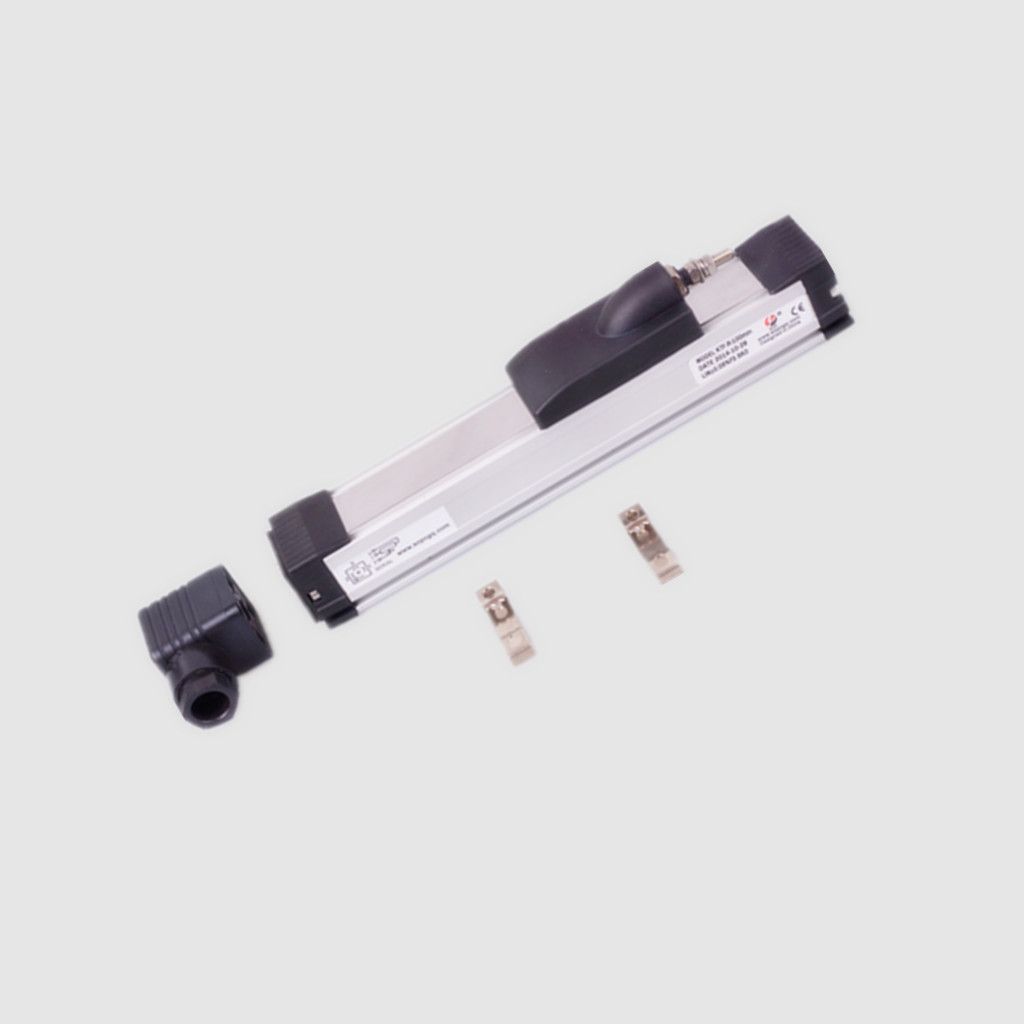

KTF slider series linear position sensors are common KTF slider electric conduction plastic film series, the effective stroke 75mm ~ 2500mm, both ends 4mm buffer stroke, precision 0.15% ~ 0.04% FS. Shell surface, anodizing, corrosion resistant; built-in conductive plastic measuring unit, no temperature drift, long life; with automatic electrical grounding function. Sealing rating of IP65 (when installed down to IP57), DIN43650 standard plugs and sockets, can be applied in the most common occasions, especially in the longitudinal direction is restricted, the more difficult for the occasion; rod with ball head has a 10mm automatic correction function, It allows the limit velocity 10m / s.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
