| Prod Model: |
GPS car tracker |
| Dim: |
8.9*5.0*1.6cm |
| Battery: |
500 mAh |
| Weight: |
70g |
| Band: |
850/900/1800/1900MHz |
| Features: |
Mini Size with Sos, Support OEM |
| Apllication: |
All Modern Cars |
| Certificate: |
Ce FCC ISO |
| GPS Accuracy: |
5m |
| Power: |
12-24V DC |
| Tracking Platform: |
Web Tracking, Andriod and iPhone APP |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
GPS 306 GPS Tracker |
| Screen Size: |
No Screen GPS Tracker |
| Brand: |
Coban |
| Certification: |
ISO9001 Ce FCC ISO |
Product Description

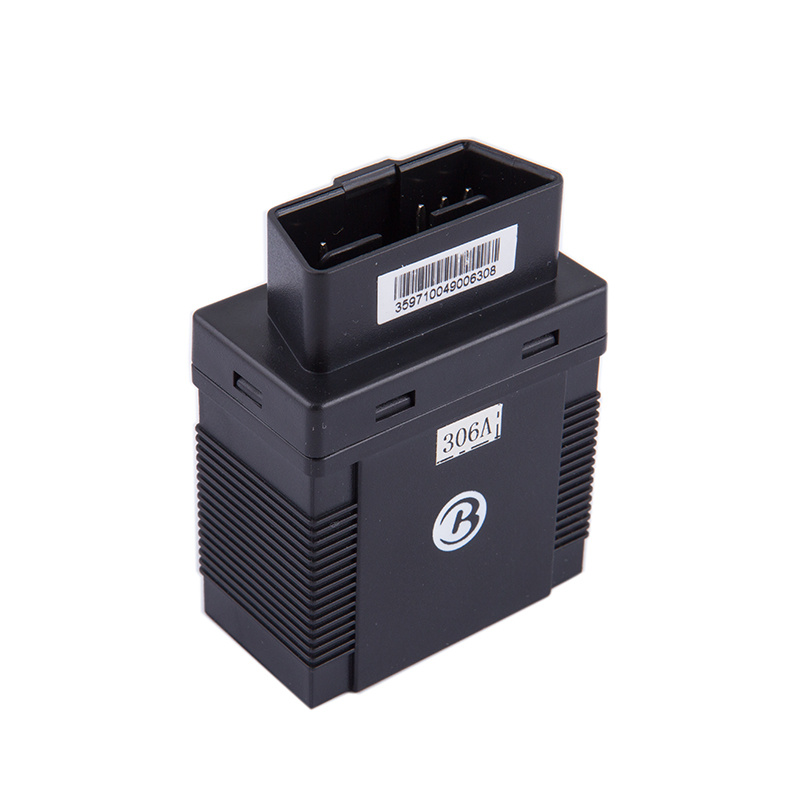

Accurate plug and play backup battery OBD II GPS Tracker
Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
How does GPS tracker work:
Our newly designed plug-and-play OBD tracker
Can read OBD parameters from car ECU and GPS tracking for car location
All data will be transmitted to the back end server for remote diagnostic and tracking purpose
Features
* Built-in GSM, GPS antenna, Waterproof ,compact, elegant appearance.
* Support GPS and LBS (Location based service) double tracking solutions.
* Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
* Support configure the settings remotely
* Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety
OBD compatibility
1.Protocol compatibility
The product supports existing OBD protocol:
SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO 14230-4 (KWP2000_5BPS)
ISO 14230-4 (KWP2000_FAST)
ISO 15765-4 (CAN500_11BIT)
ISO 15765-4 (CAN500_29BIT)
ISO 15765-4 (CAN250_11BIT)
ISO 15765-4 (CAN250_29BIT)
2.Vehicle Compatibility
Applies to all vehicles which are compatible with OBDII (Including, but not limited to the following models)
US-produced gasoline vehicles are sold after 1996; all Chinese domestic car are sold after 2003;
European gasoline vehicles are sold after 2001 or are produced after 2000; Diesel vehicles are sold after 2004 or are produced after 2003.
Support vehicle models:
| No. | Model | No. | Model | No. | Model | No. | No. |
| 1 | Mercedes-Benz | 2 | BMW | 3 | Audi | 4 | Land Rover |
| 5 | Buick | 6 | Chevrolet | 7 | Ford | 8 | Honda |
| 9 | TOYOTA | 10 | Volkswagen | 11 | Hyundai | 12 | SSANG YONG |
| 13 | Citroen | 14 | Mazda | 15 | subaru | 16 | Roewe |
| 17 | Peugeot | 18 | Chery | 19 | Cadillac | 20 | JINBEI |
| 21 | Haima | 22 | Kia | 23 | BYD | 24 | SKODA |
| 25 | FAW | 26 | Nissan | 27 | Geely | 28 | JMC |
| 29 | Dongfeng | 30 | MITSUBISHI | 31 | | 32 | Suzuki |
| 33 | Soueast | 34 | Isuzu | 35 | Acura | 36 | Volvo |
Basic functions:
1. GPS + LBS double solution,exact street address
2. Auto track continuously
Track with limited times upon time interval
Track with unlimited times upon time interval
smart track upon time and distance interval
3.Turning points update automatically
4.GPS drift suppression
5.Data logging or load
6.Alarms
Low battery alarm
GPS blind Spot alert
SOS
Geo-fence
Overspeed alert
Movement alert
Multi-area management
Built in Acceleration Sensor Alarm
7.Sleep Mode
8. Real time tracking via SMS or GPRS (TCP/UDP)
9.Track on demand by calling or sms comamnd
10. Live http google map link in message
11.Five authorized phone numbers
12. Voice Surveillance
13.Easy switch for track or Monitor
New Functions:
14.ACC work and alarm
15.OBD compatibility
16.Set mileage
17.2.4G Attendance Management
18.Arm/disarm/silent mode/
19.Set Fuel tank volume
20.Vehicle maintenance notification
Multiple Tracking Ways:
*Calling the gps tracker via your mobile phone,it will reply a SMS including longitude and latitude and a google map link,open this link,you can see the location on the google map.
*Real track by our own developing ios app and andriod app.
*Web based online tracking system our server www.gpstrackerxy.com.
Item Includes:
GPS unit
12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
GPS Tracker Specification:
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accurancy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car power supply | 12 V -24V |
| Back up battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
