ACSR Cable with IEC, GB, BS, ASTM, DIN Standard
| Price: |
US $ 0.07-1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ACSR |
| Type: |
ACSR |
| Rated Voltage: |
Low Voltage or High Voltage |
| Conductor Material: |
ACSR |
| Cerificate: |
ISO9001,ISO14001,Oashs18001 |
| Standard: |
BS215 |
| Code Name: |
Rabbit |
| Size: |
50mm2 |
| Sample: |
Free |
| Application: |
Power Transmission |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
None |
| Sheath Material: |
None |
| Wire Core Material: |
Aluminum Conductor Steel Reinforced |
| Certification: |
IEC DIN |
| Model: |
ACSR |
| Brand: |
Rne Da |
Product Description
ACSR Cable with IEC, GB, BS, ASTM, DIN Standard
1. Specification:
(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)
(7)aluminimum conductor aluminimum alloy reinforced(ACAR)
2. Elative manufacturing standards: IEC83, IEC1089, 31, B232, BS215, DIN48204 (1). Standard: IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182

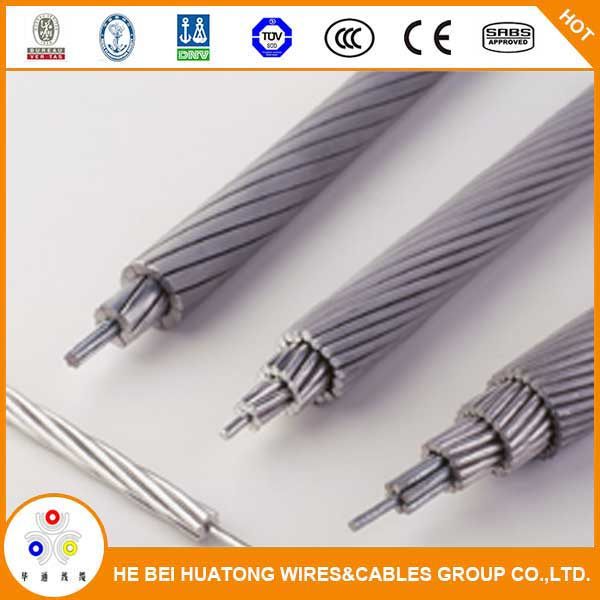

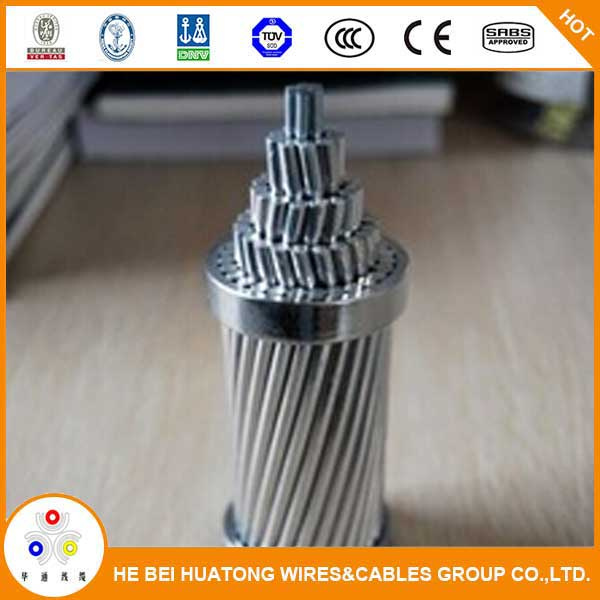

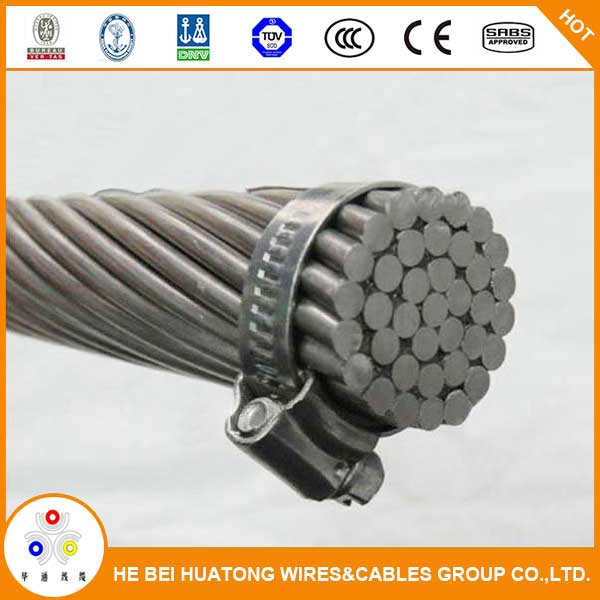

(2). Specification: ACSR is composed by bare concentric-lay-stranded galvanized steel wire(s) with aluminum wires surrounded by one or more layers of helically. Greased ACSR can also be supplied.
(3). Application: ACSR is widely used in overhead electric power transmission and distribution lines with various voltage levels
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied. 3 Specification of ACSR conductor with BS215 Part2 | Aluminum Conductors Steel Reinforced BS 215 Part 2 |
| Code name | Area | Stranding and wire diameter | Approx. overall diameter | Weight | Nominal breaking load | Nominal DC resistance at 20 deg. |
| Nominal | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Total |
| | mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kN | Ohm/km |
| MOLE | 10 | 10.62 | 1.77 | 12.39 | 6/1.50 | 1/1.50 | 4.50 | 29 | 14 | 43 | 4.14 | 2.076 |
| SQUIRREL | 20 | 20.94 | 3.49 | 24.43 | 6/2.11 | 1/2.11 | 6.33 | 58 | 27 | 85 | 7.88 | 1.368 |
| GOPHER | 25 | 26.25 | 4.37 | 30.62 | 6/2.36 | 1/2.36 | 7.08 | 72 | 34 | 106 | 9.61 | 1.093 |
| WEASEL | 30 | 31.61 | 5.27 | 36.88 | 6/2.59 | 1/2.59 | 7.77 | 87 | 41 | 128 | 11.45 | 0.9077 |
| FOX | 35 | 36.66 | 6.11 | 42.77 | 6/2.79 | 1/2.79 | 8.37 | 101 | 48 | 149 | 13.2 | 0.7822 |
| FERRET | 40 | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 9 | 117 | 55 | 172 | 15.2 | 0.6766 |
| RABBIT | 50 | 52.88 | 8.82 | 61.7 | 6/3.35 | 1/3.35 | 10.05 | 145 | 69 | 214 | 18.35 | 0.5426 |
| HORSE | 70 | 73.37 | 42.8 | 116.17 | 12/2.79 | 7/2.79 | 13.95 | 203 | 335 | 538 | 61.2 | 0.3936 |
| RACOON | 75 | 79.2 | 13.2 | 92.4 | 6/4.10 | 1/4.10 | 12.3 | 217 | 103 | 320 | 27.2 | 0.3622 |
| OTTER | 80 | 83.88 | 13.98 | 97.86 | 6/4.22 | 1/4.22 | 12.66 | 230 | 109 | 339 | 28.80 | 0.3419 |
| CAT | 90 | 95.40 | 15.90 | 111.30 | 6/4.50 | 1/4.50 | 13.50 | 262 | 124 | 386 | 32.70 | 0.3007 |
| HARE | 100 | 105.00 | 17.50 | 122.50 | 6/4.72 | 1/4.72 | 14.16 | 288 | 137 | 425 | 36.00 | 0.2733 |
| DOG | 100 | 105 | 13.5 | 118.5 | 6/4.72 | 7/1.57 | 14.15 | 288 | 106 | 394 | 32.7 | 0.2733 |
| TIGER | 125 | 131.1 | 30.6 | 161.7 | 30/2.36 | 7/2.36 | 16.52 | 362 | 240 | 602 | 58 | 0.2202 |
| WOLF | 150 | 158 | 36.9 | 194.9 | 30/2.59 | 7/2.59 | 18.13 | 437 | 289 | 726 | 69.2 | 0.1828 |
| LYNX | 175 | 183.4 | 42.8 | 226.2 | 30/2.79 | 7/2.79 | 19.53 | 507 | 335 | 842 | 79.8 | 0.1576 |
| CARACAL | 175 | 184.2 | 10.3 | 194.5 | 18/3.61 | 1/3.61 | 18.05 | 507 | 80 | 587 | 41.1 | 0.1563 |
| PANTHER | 200 | 212 | 49.5 | 261.5 | 30/3.00 | 7/3.00 | 21 | 586 | 388 | 974 | 92.25 | 0.1363 |
| BEAR | 250 | 264 | 61.6 | 325.6 | 30/3.35 | 7/3.35 | 23.45 | 730 | 483 | 1213 | 111.1 | 0.1093 |
| BISON | 350 | 381.8 | 49.5 | 431.3 | 54/3.00 | 7/3.00 | 27 | 1056 | 388 | 1444 | 120.9 | 0.07573 |
| DEER | 400 | 429.3 | 100.2 | 529.5 | 30/4.27 | 7/4.27 | 29.89 | 1186 | 785 | 1971 | 178.5 | 0.06726 |
| ZEBRA | 400 | 428.9 | 55.6 | 484.5 | 54/3.18 | 7/3.18 | 28.62 | 1186 | 435 | 1621 | 131.9 | 0.0674 |
| MOOSE | 500 | 528.7 | 68.5 | 597.2 | 54/3.53 | 7/3.53 | 31.77 | 1462 | 537 | 1999 | 161.1 | 0.0547 |
| Aluminum Conductors Steel Reinforced ASTM B 232 |
| Code name | Area | Stranding and wire diameter | Approx. overall diameter | | Nominal breaking load | Nominal DC resistance at 20 deg. |
| Nominal | Total | Alum. | Steel | Total |
| | AWG or MCM | mm2 | mm | mm | mm | kg/km | kN | Ohm/km |
|
| TURKEY | 6 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 54 | 5.24 | 2.1586 |
| SWAN | 4 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 85 | 8.32 | 1.3557 |
| SWANATE | 4 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 100 | 10.53 | 1.3557 |
| SPARROW | 2 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 136 | 12.7 | 0.8535 |
| SPARATE | 2 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 159 | 16.11 | 0.8535 |
| RAVEN | 1/0 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 216 | 19.32 | 0.5364 |
| QUAIL | 2/0 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 273 | 23.62 | 0.4255 |
| PIGEON | 3/0 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 343 | 29.41 | 0.3373 |
| PENGUIN | 4/0 | 125.1 | 6/4.77 | 1/4.77 | 14.31 | 433 | 37.06 | 0.2675 |
| PARTRIDGE | 266.8 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 546 | 50.29 | 0.2143 |
| MERLIN | 336.4 | 179.93 | 18/3.47 | 1/3.47 | 17.35 | 544 | 38.23 | 0.1691 |
| LINNET | 336.4 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 689 | 62.71 | 0.1699 |
| ORIOLE | 336.4 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 784 | 77.27 | 0.1704 |
| IBIS | 397.5 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 814 | 72.11 | 0.1438 |
| LARK | 397.5 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 927 | 88.69 | 0.1442 |
| PELICAN | 477 | 255.1 | 18/4.14 | 1/4.14 | 20.7 | 771 | 52.16 | 0.1193 |
| FLICKER | 477 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 915 | 76.66 | 0.1199 |
| HAWK | 477 | 281.1 | 26/3.44 | 7/2.67 | 21.79 | 978 | 86.65 | 0.1199 |
| HEN | 477 | 298.07 | 30/3.20 | 7/3.20 | 22.4 | 1112 | 105.34 | 0.1201 |
| OSPREY | 556.5 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 899 | 60.88 | 0.1022 |
| PARAKEET | 556.5 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 1067 | 88.22 | 0.1027 |
| DOVE | 556.5 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 1140 | 101.03 | 0.1027 |
| EAGLE | 556.5 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 1298 | 122.92 | 0.103 |
| PEACOCK | 605 | 346.32 | 24/4.03 | 7/2.69 | 24.2 | 1160 | 95.88 | 0.0945 |
| SQUAB | 605 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 1240 | 108.14 | 0.0945 |
| TEAL | 605 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 1399 | 133.59 | 0.0947 |
| GROSBEAK | 636 | 374.71 | 26/3.97 | 7/3.09 | 25.15 | 1302 | 111.8 | 0.08989 |
| STARLING | 715.5 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 1466 | 125.91 | 0.07989 |
| TERN | 795 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1333 | 97.37 | 0.07191 |
| CONDOR | 795 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1524 | 124.45 | 0.07191 |
| CUCKOO | 795 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1524 | 123.94 | 0.07191 |
| DRAKE | 795 | 468.35 | 26/4.44 | 7/3.45 | 28.11 | 1628 | 139.92 | 0.07191 |
| MALLARD | 795 | 494.71 | 30/4.14 | 19/2.48 | 28.96 | 1838 | 171.18 | 0.07208 |
| RAIL | 954 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1601 | 115.63 | 0.05992 |
| CURLEW | 1033.5 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1981 | 161.8 | 0.05531 |
| BLUEJAY | 1113 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1868 | 132.63 | 0.05136 |
| FINCH | 1113 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 2150 | 174.41 | 0.05161 |
| GRACKLE | 1192.5 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 2282 | 186.38 | 0.04817 |
| BITTERN | 1272 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 2134 | 151.48 | 0.04494 |
| DIPPER | 1351.5 | 731.94 | 45/4.40 | 7/2.92 | 35.16 | 2266 | 160.7 | 0.0423 |
| MARTIN | 1351.5 | 771.55 | 54/4.02 | 19/2.41 | 36.17 | 2585 | 206.05 | 0.0425 |
| LAPWING | 1590 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2667 | 187.02 | 0.03595 |
| FALCON | 1590 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 3042 | 242.55 | 0.03613 |
| DOTTEREL | 176.9 | 141.67 | 12/3.08 | 7/3.08 | 15.42 | 657 | 78.5 | 0.3237 |
| DORKING | 190.8 | 153.1 | 12/3.20 | 7/3.20 | 16.03 | 709 | 84.8 | 0.2995 |
| COCHIN | 211.8 | 169.55 | 12/3.37 | 7/3.37 | 16.84 | 785 | 93.9 | 0.2705 |

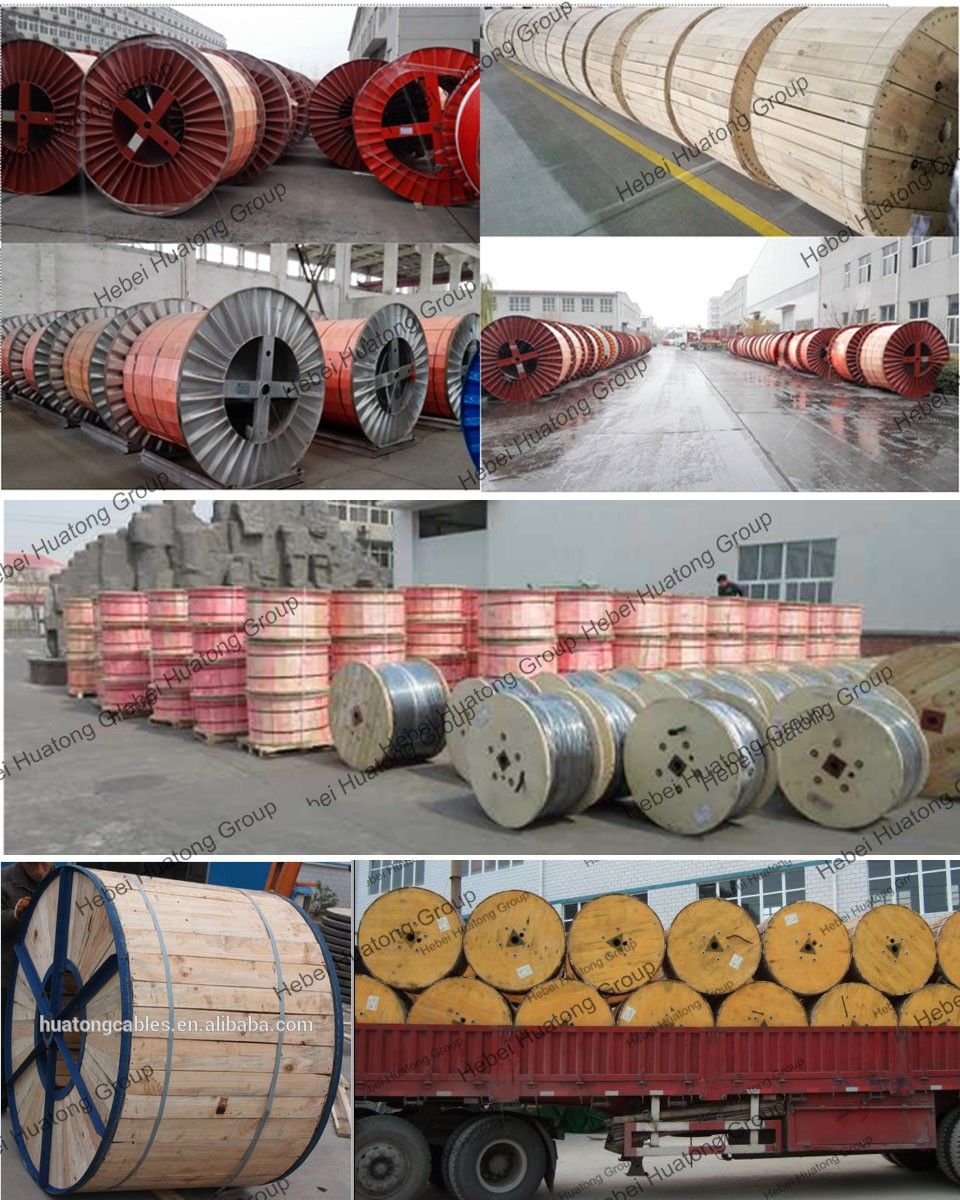

4 Packing: standard export drum
5 Certificate:We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate

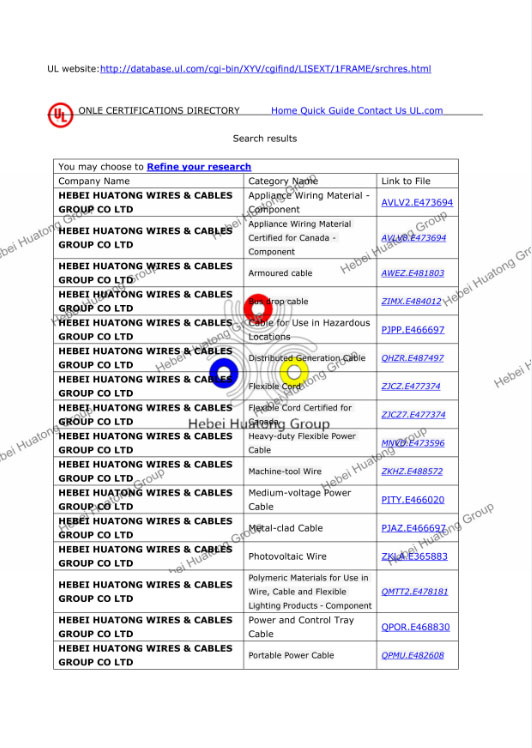

USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.

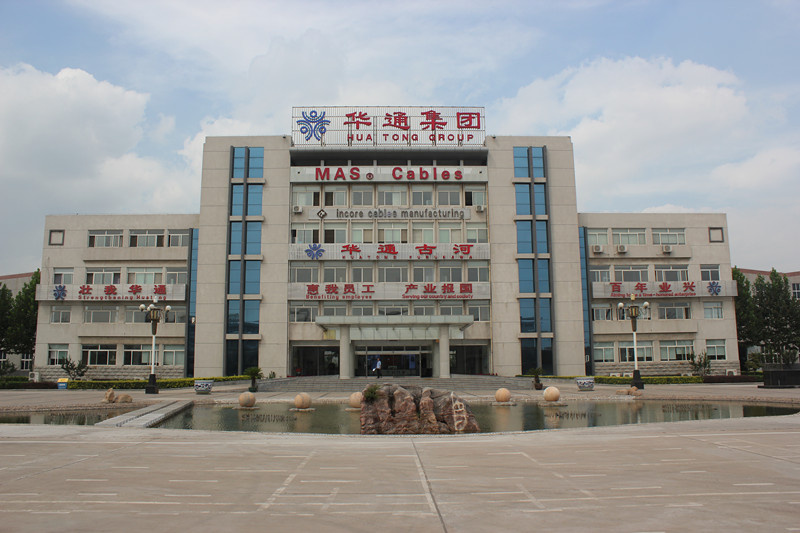

6 Company profile:Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
7 Our Service:1.How many year have our factory producing power cable?Our factory produce power cable for 22 years.2 Hong Long time the customer can get the new price after get your inquiry? Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.3.Which port our factory is near to? Tianjin port4.Which payment term do we accept? T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.5.What about the package for our power cable? It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.6.How long meter power cable for one wooden drum? This is according to power cable's diameter and customer's requirments.7.How about our delivery time? According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.8.Do we provide sample for free? Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
