ACSR Conductor/Overhead Power Cable
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
conductor |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
Bare |
| Current: |
AC Cable |
| Application: |
Power Station |
| Certification: |
CE |
Product Description
Brief Instruction for Bare conductor
1.Applications
Conductor(AAC,AAAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
2.Service Performance
(1).The permissible long-time operating temperature for aerial conductor is 70oC.
(2).Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3).When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4).Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.
3.Material Standard
(1).The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
(2).The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
(3).Production can be arranged according to customers requirements for material standard,etc.

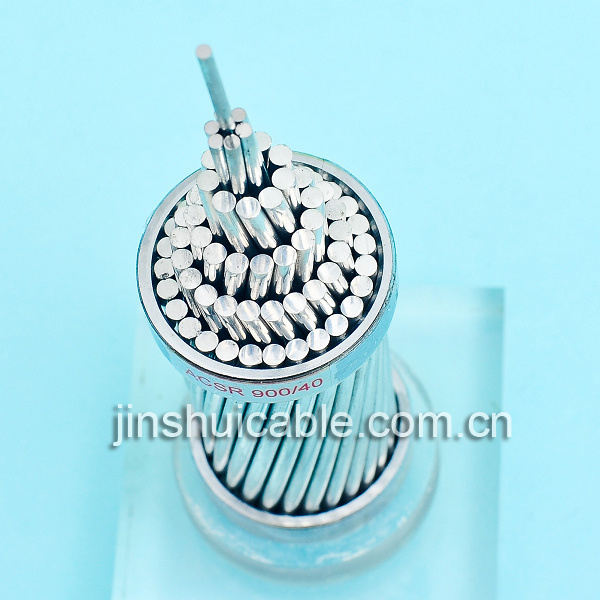

Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced.

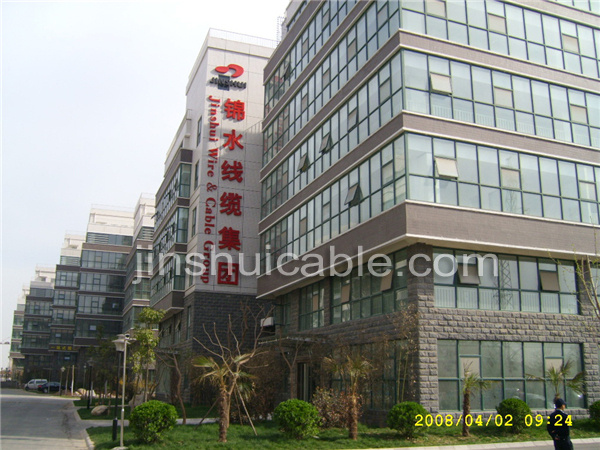

The Headoffice
Clear and peaceful working office represent the our hunmanized management.

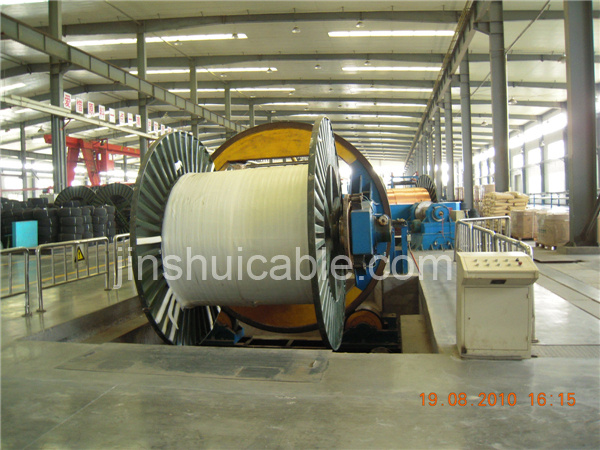

The Factory
Perfect equipments and mature process technology can guarantee the fine products.
The International Fair
We have a united team to attend international fair to sell our products.
We sincerely welcome your kind enquiry!!!
Jinshui Wire & Cable Group is located in the national class Zhengzhou high and new technology industries development zone in Zhengzhou, which is full of famous enterprises with a graceful and elegant environment. With abundant human resources, expedite transportation network, widespread scientific research institutions, sophisticated technical support and superior geographic location which is richly endowed by nature. Jinshui Wire & Cable group have subsidiary companies: Jinshui Industry and commerce Co., Ltd., Huibang wire and cable Co., Ltd and a horizontally combined manufacture plant, namely Zhengzhou Cable Factory. The group mainly engage in the export of wire and cable including cable accessories. Through eight years' unremitting effort and endeavors, we have achieved sound cooperation and widely compliments from the clients all over the world by superior quality, reasonable price and sincere services.
Jinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.
Outfitted with the latest generation of technologies. Facilities and equipments. Jinshui Wire & Cable Group can produce more than 1400 types of cables and wires in scores of categories. We mainly have the following quality products with strong international competitiveness: Aluminum rod for electrical purpose, hard drawn copper conductor, all aluminum conductors (AAC), aluminum conductors steel reinforcement (ACSR), all aluminum alloy conductors (AAAC), aerial bundled cables up to 1kV (ABC), PVC insulated wire and flexible wire, welding cable, control cable, rubber insulated cable, rubber insulated flexible wire, PVC insulated power cable, XLPE insulated power cable up to 220kV and cable accessories. Our products can conform to dozens of standards such as GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and so on. Also we can produce based on customers' requirements and specifications. Our products have already been verified to conform to the certification of China Compulsory Product Certification (CCC), PCCC, CQC Mark Certification, MA and others from China and abroad.
With the strong and comprehensive sales and marketing network, Jinshui Wire & Cable Group has been making every effort to develop and expand the domestic and international market. Especially, our international market share is growing rapidly. Zhengzhou Jinshui Industry & Commerce Co., Ltd. Specializing in the international market in Jinshui Wire & Cable Group, has established sound business relationship with clients all over the world, exported products to the clients from Europe, Australia, Middle East, Africa, South Asia, North America, and South America, and obtained the clients' trust and compliment.
With the internationalization of Jinshui Wire & Cable Group, we have established long term strategic relationship with hundreds of large scale companies from America, Australia, Philippines, Malaysia, Korea and etc, and lay solid foundation for our further development.
