| Prod Model: |
acsr |
| Voltage: |
High Voltage |
| Structure: |
1*3 1*7 1*19 1*37 |
| Product Name: |
Aluminum Conductor Material and Bare Jacket ACSR C |
| Usage: |
Power Transimision |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Insulation Material: |
Bare |
| Certification: |
BV |
| Conductor Material: |
Aluminium Alloy |
| Sheath Material: |
Bare |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description

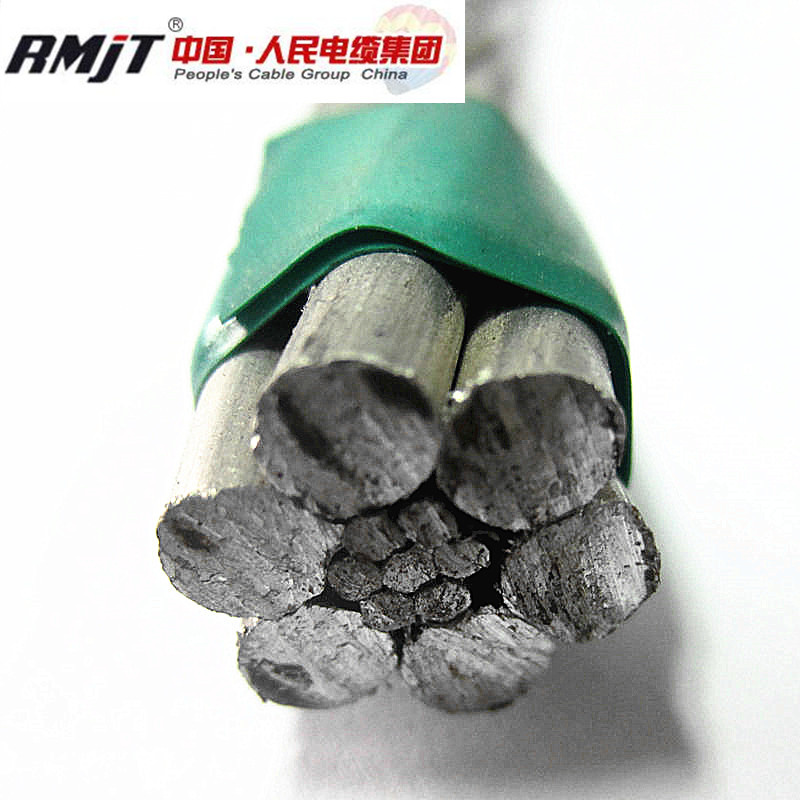

acsr conductor pvc insulated cable Copper or CCA core cables and wires
1.Application
The aluminum conductor steel reinforced is made through stranding aluminum wires and steel wires, and is used as main power transmission line. Its inner part is the steel core, with the aluminum wires stranded around the steel core in a spiral manner and according to a certain rule. The steel core is used to enhance the strength of ACSR.
The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.
2.Standard:
ASTM B 232, BS 215 Part 2, IEC 61089, DIN 48204, etc..
3.Specification
ACSR of ASTM B 232
| Code Name | Area | Stranding | Approx. Overall Diameter | Weight |
| Nominal | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Total |
| | AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km |
| Turkey | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 37 | 17 | 54 |
| Swan | 4 | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 58 | 27 | 85 |
| Swanate | 4 | 21.16 | 5.35 | 26.51 | 7/1.96 | 1/2.61 | 6.53 | 58 | 42 | 100 |
| Sparrow | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 92 | 44 | 136 |
| Sparate | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 92 | 67 | 159 |
| Robin | 1 | 42.39 | 7.10 | 49.49 | 6/3.00 | 1/3.00 | 9.00 | 116 | 55 | 171 |
| Raven | 1/0 | 53.48 | 8.90 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 147 | 69 | 216 |
| Quail | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 185 | 88 | 273 |
| Pigeon | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 233 | 110 | 343 |
| Penguin | 4/0 | 107.23 | 17.87 | 125.10 | 6/4.77 | 1/4.77 | 14.31 | 294 | 139 | 433 |
| Waxwing | 266.8 | 135.16 | 7.48 | 142.64 | 18/3.09 | 1/3.09 | 15.45 | 373 | 58 | 431 |
| Partridge | 266.8 | 135.16 | 22.00 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 374 | 172 | 546 |
| Ostrich | 300 | 152.00 | 24.71 | 176.71 | 26/2.73 | 7/2.12 | 17.28 | 421 | 193 | 614 |
4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.
5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
6.Production process:
AAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
