| Prod Model: |
AD-203E -A |
| Power Supply: |
AC/DC 12-36V |
| Unlock And Door Open Time: |
0.8s |
| Current Of Electric Lock: |
3A(12V) |
| Static Power: |
35mA |
| Action Current: |
85mA(Non-Current Electric Lock) |
| Working Temperature: |
-42ºC~45ºC |
| Working Humidity: |
10~90%Rh |
| Weight: |
170g |
| Application: |
Automatic Doors |
| Signal Transmission: |
Radio Waves |
| Certification: |
CE |
| Universal: |
Universal |
| Voltage: |
12V |
Product Description

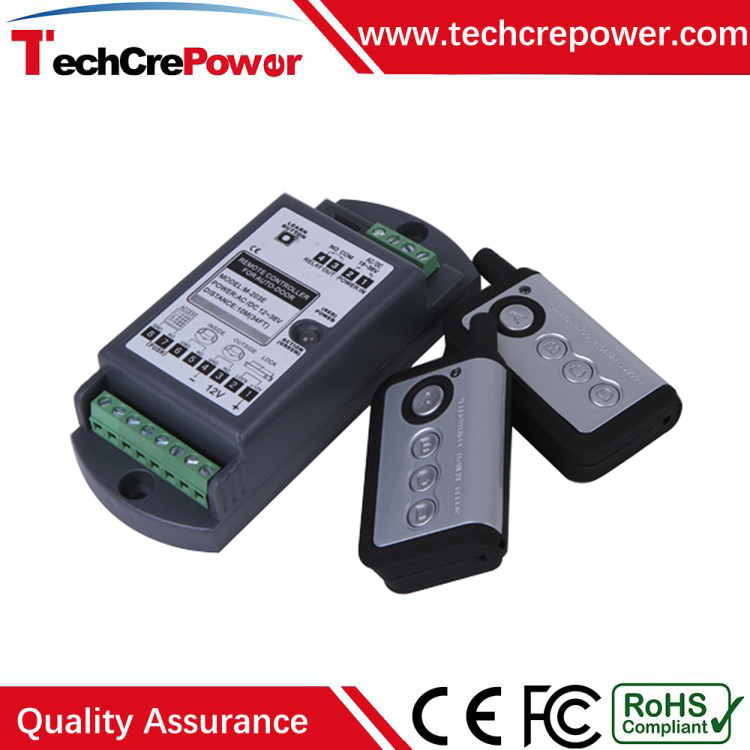

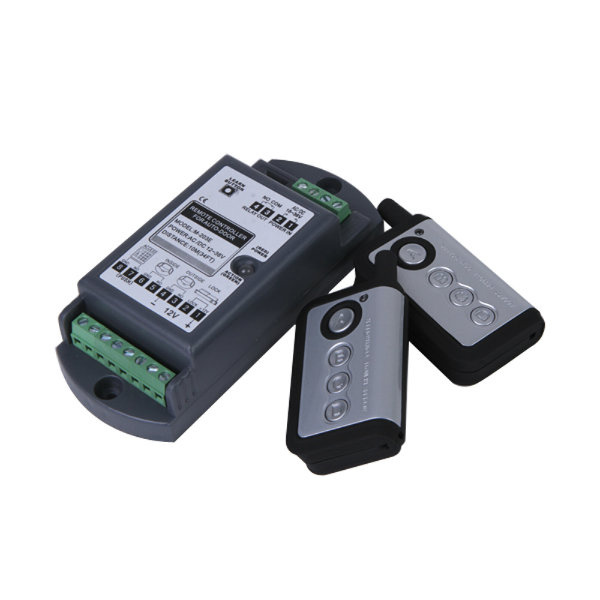

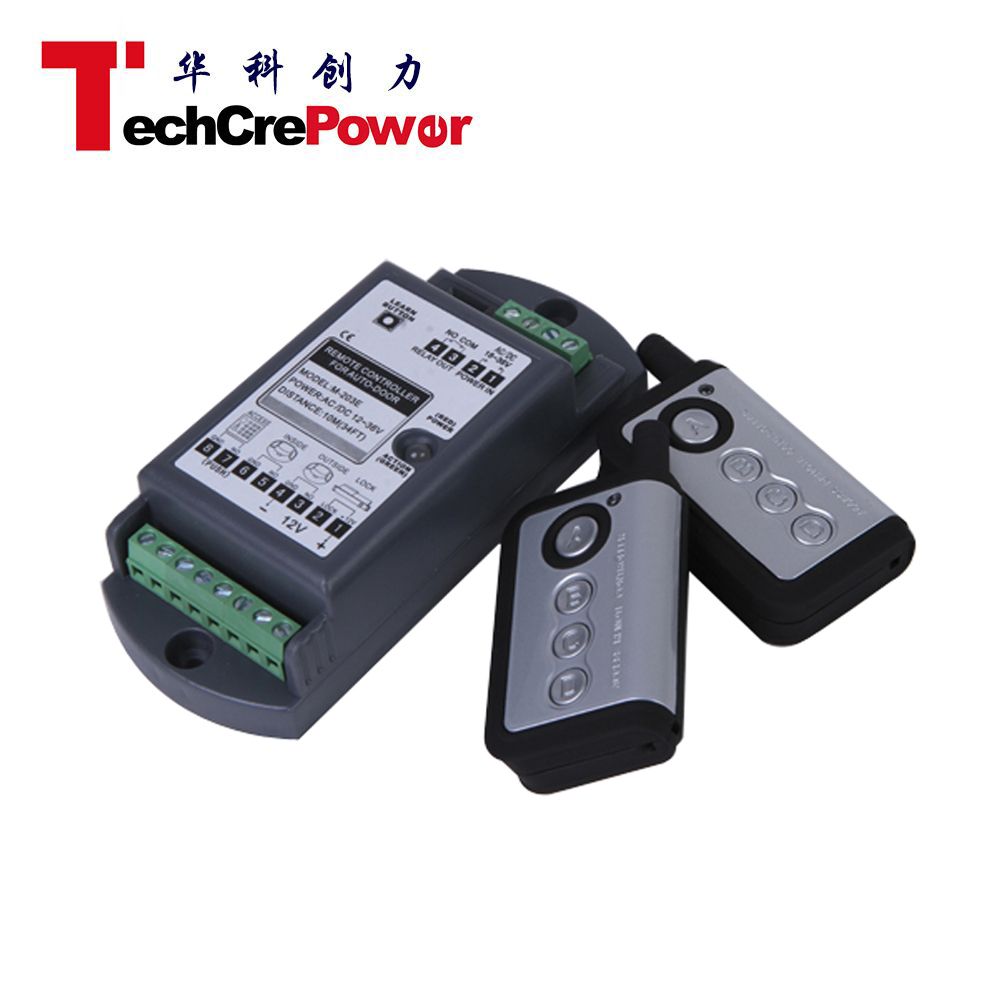

AD-203E Access Control Accessories Autodoor Remote ControllerFeatures:
1.With high-current of electric lock signal output.
2.DC/AC 12V-36V DC power input, it is convenient to take power from sliding door units.
3.Featured with exquisite cover,compact size and easy to be fixed.
4.Built-in surge absorber to prevent the return spark.
5.Remote transmitter with 4 keys to carry out the 4 functions of autodoor, including: unidirectional/ full open/ full lock/ automatic function.
6.All induction gated signal unified into the extender which output the signal to auto-door and electric locks.
7.Using remote controller to switch function, validity action confirms by voice indicator
Technical parameter
Power supply: AC/DC 12-36V
Current of electric lock: 3A(12V)
Static Power: 35mA
Action current: 85mA
The interval time to open lock and door: 0.5s
Professional appliance: Built-in surge absorber
Transmitting and receiving method: Microwave level with a roller code
Remote control battery action: 1≥ 8000 times
Working environment temperature: -42 °C-45°C
Working environment humidity: 10-90%RH
Appearance dimension: 123(L)x50(W)x32(H)mm
The total weight: 280g
Product Photo

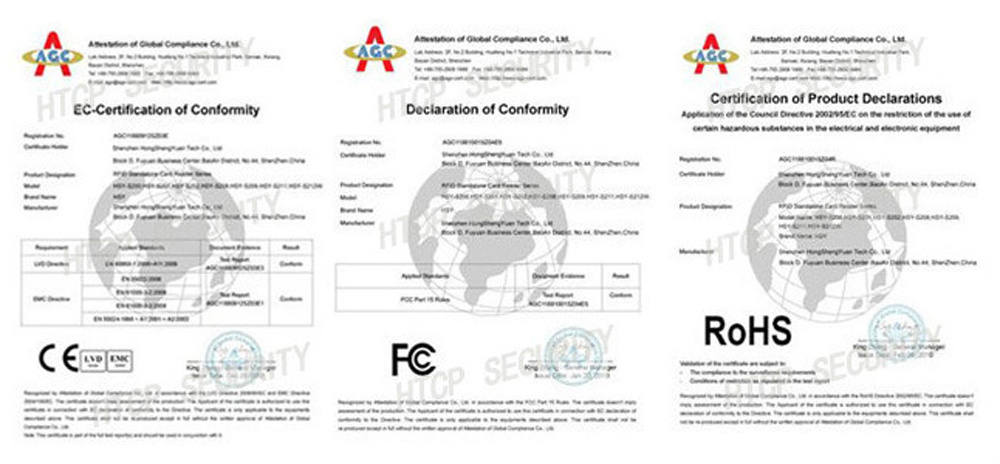

Product Certification

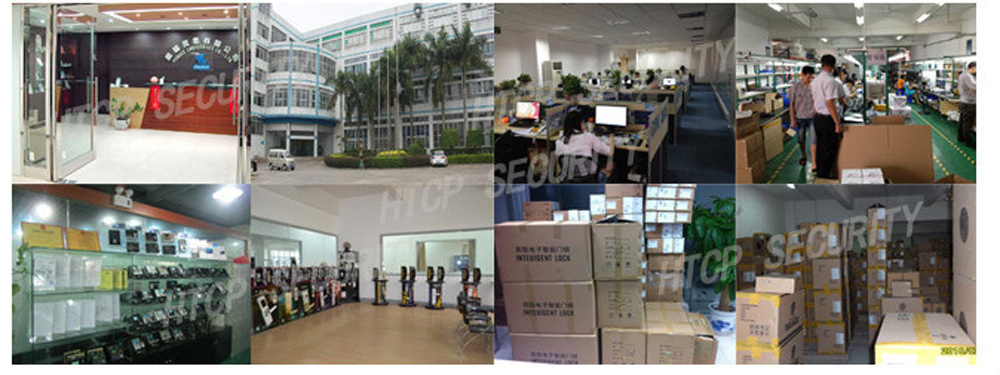

Our Factory
