Ad-204h Electronic Automatic Door Motion Sensor for Automatic Gate

Name: Ad-204h Electronic Automatic Door Motion Sensor for Automatic Gate
Brand: all-electronics-online.com
SKU: 832140135
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 22.9-49/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AD-204H -B
Technology:	Microwave&Microwave Disposer
Installation Angle:	0-90 Degree(Lengthways), -30 to +30(Lateral)
Usage:	Consumption Sensor, Automatic Door Motion Sensor
Frequency:	24.125GHz
Launch Frequency Density:	<5MW/Cm2
Detection Mode:	Moving
Power Voltage:	12V-30V(AC) 12V-36V(DC)
Output:	Analog Sensor
Installation Height:	4m(Max)
Detection Range:	8m*4m

Product Description

AD-204H Electronic Automatic Door Motion Sensor for Automatic Gate

Description:

This is a universal microwave motion sensor. it's widely used in Automatic doors,elevators in Public places like Supermarket, ATM, Airport etc. It's made with Sophisticated Motion Tracking Feature; 24.125GHz Microwave sensor Technology.

Specifications:

Product Parameter	Parameter Description
Technology	Microwave and microwave disposer
Frequency	24.125GHZ
Transmitting power	<20dBm EIRP
Installation Height	4M(Maximum)
Installation Angle	0-90 degree / -30 to +30
Detection Mode	Moving
Min detection range	8m*4m (installtion height 2.2m)
Maximum voltage	42AC-60VDC
Maximum Current	1A
Power voltage	12V to 30V AC+/-10%(50HZ to 60HZ);12V to 36V DC
Material	ABS
Size	120mm(W)80mm(H)50mm(D)

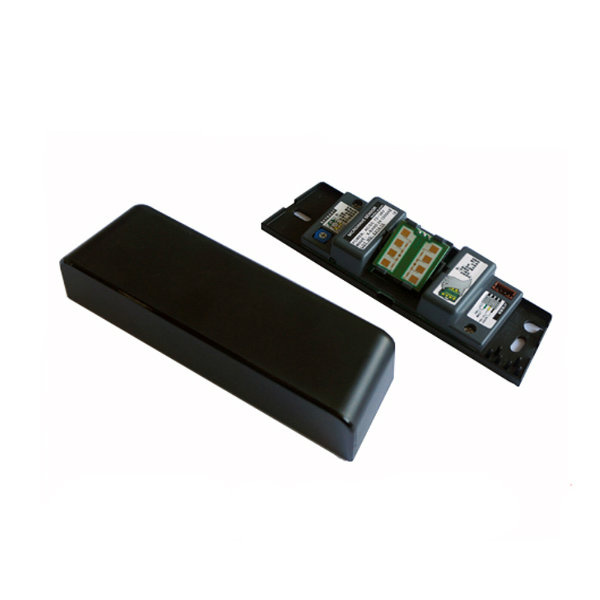

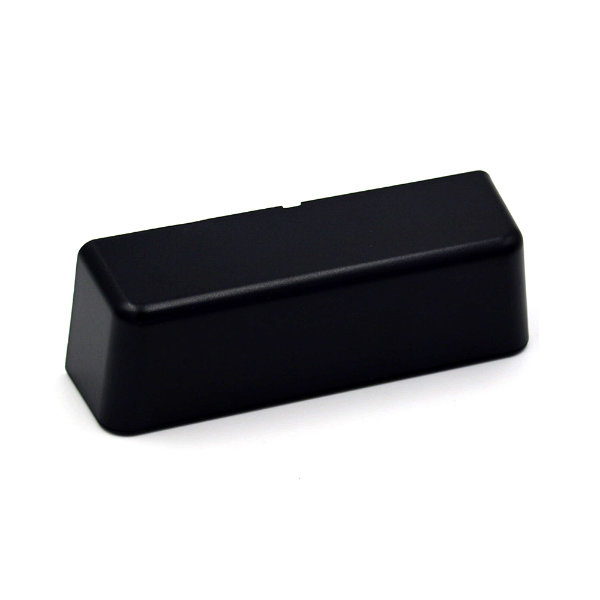

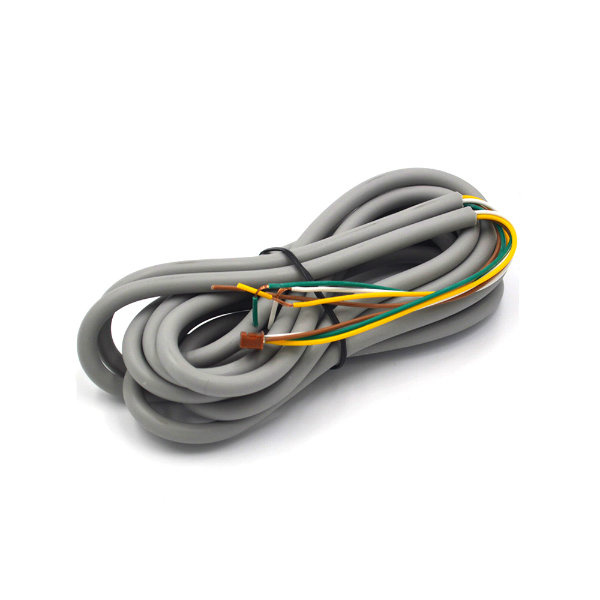

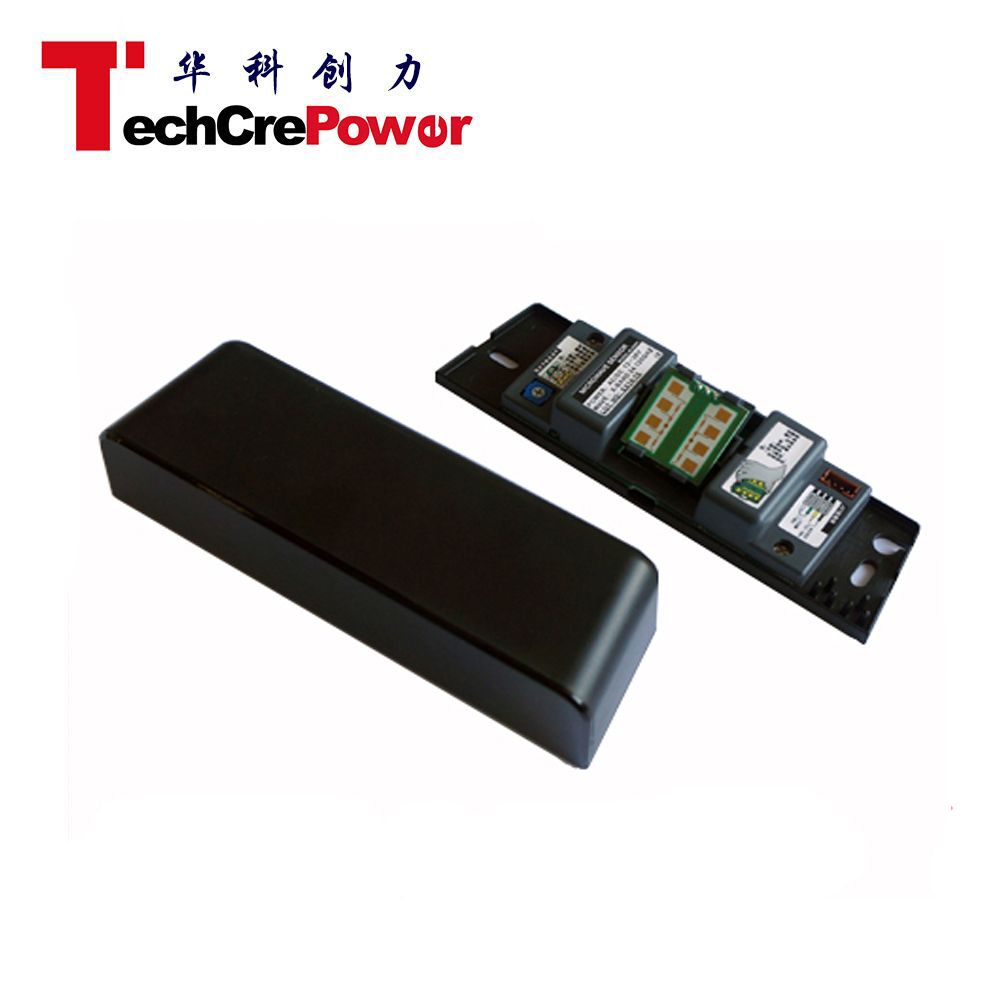

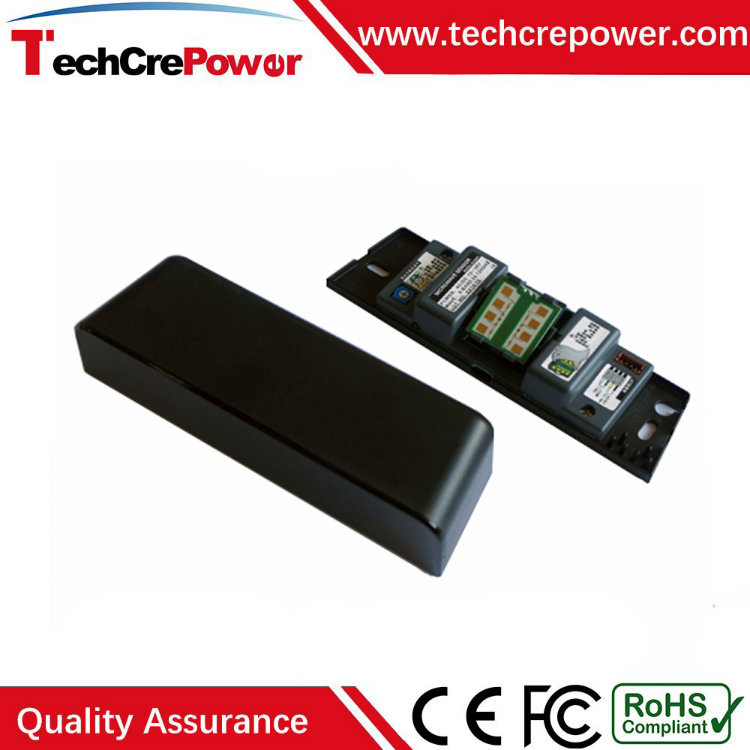

Product picture:

Product Certification:

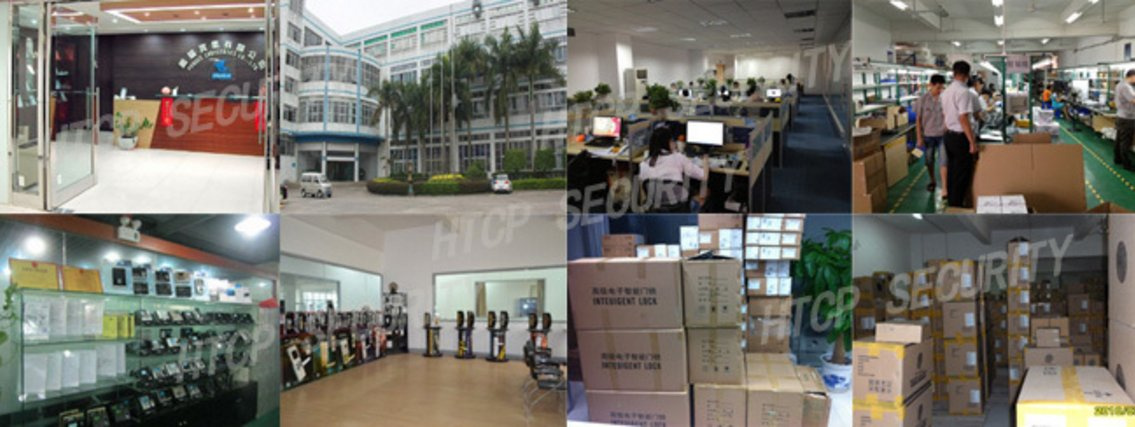

Our Factory:

Our Advantage:

1. Professional R&D department, can offer you OEM/ODM services;

2. Professional technique supports and good service;

3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.

Products are conducted aging test for 72 hours.

4. Our products are chosen high quality materials and ensure the prophase stability.

5. Our products meet ISO, CE, FCC, RoHS certificates;

Our Target:
Provide cost-effective products and timely services with the concept of "one store purchasing", realize win-to-win cooperation!

How to Pay:
By T/T, paypal, westerm union, Moneygram, L/C.

How to Deliver:
1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.

The Warranty:
We provide 1~2 years warranty from the date of delivery but lifetime technical support.

Contact us:
Thanks for your visiting! Please contact us online or send your inquiry details in the below, Click " send " now, We are waiting for your any inquiry!

Established in 2003, Shenzhen Techcrepower Technologies Limited (Subsidiary of Shenzhen Huake Tech. ) is specialized in R&D and production of access control Products, including RS485 and TCP/IP based control panel, IE web based Control panel, RFID network and single door offline access controller, wiegand reader and other peripheral access control products. As a manufacturer with strong developing team and production capacity, we always look at the forefront of the world advanced technologies, dedicated to developing the clients' most requested products, we always improving and improving!

We strictly control the quality and regard it as our base for existence! Our products are chosen high quality materials and ensure the prophase stability. Our 5 assembly line workers are well trained and can provide very professional work. All our products will be conducted aging test for 72 hours. QC staffs make piece-by-piece checks for all products. The RFID Reader monthly Production Capacity is 15000PCS in our ISO 9001: 2000-certified factory. With multi-kind of test equipments, our quality can be ensured to meet international Standards.

We are proud of our advanced technologies, top quality products, as well as fast services! At present, we are an affordable hardware provider, supply strong support for distributors, resellers and integrators. In future, we aim to become an excellent solution provider for SME (small & medium enterprise) in security sector!

Our Target: Provide cost-effective products and timely services with the concept of "one store purchasing", realize win-to-win cooperation!
