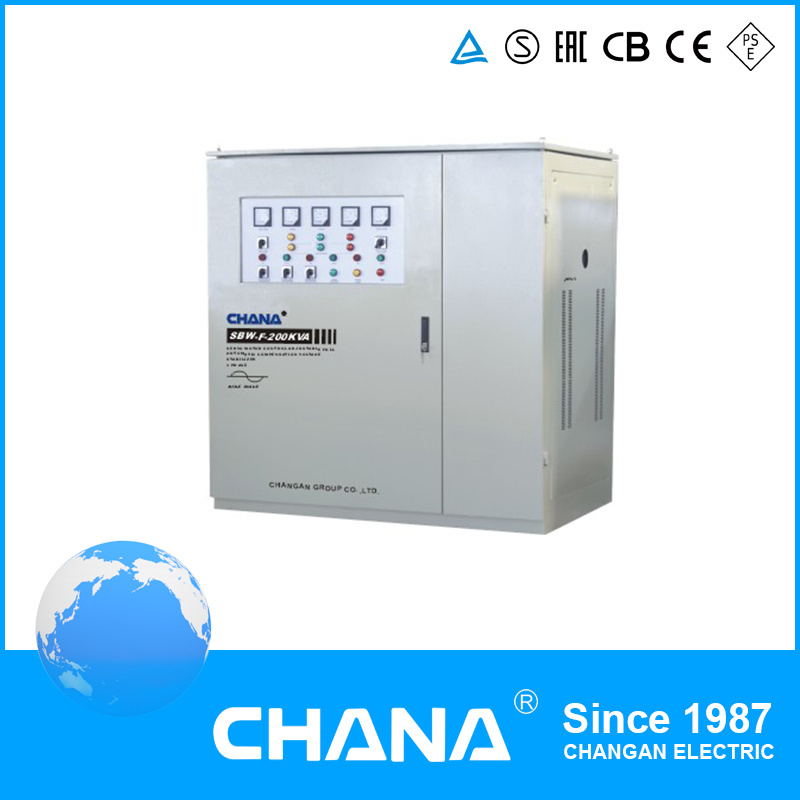

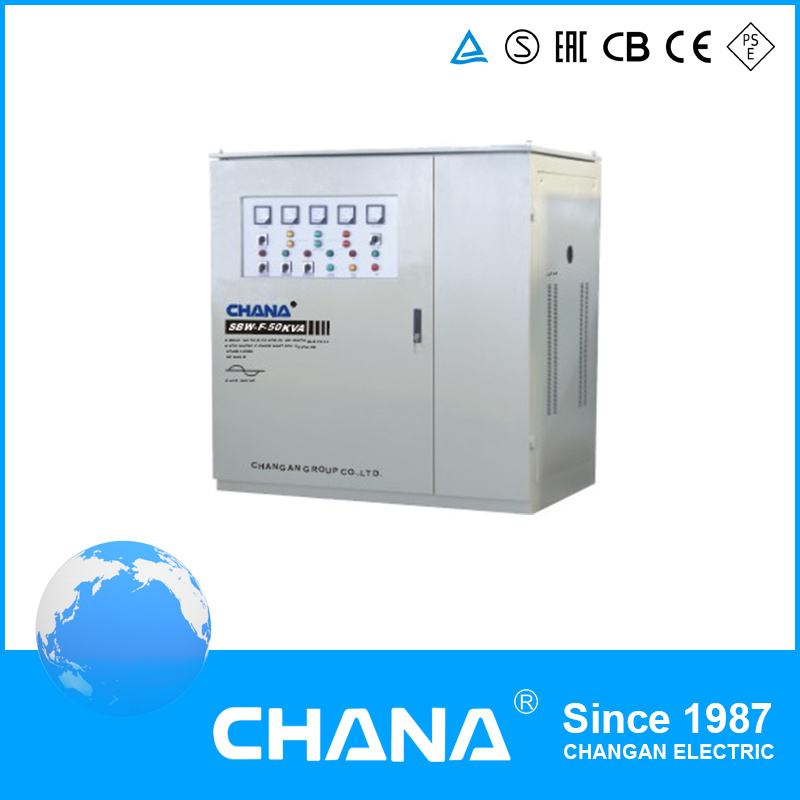

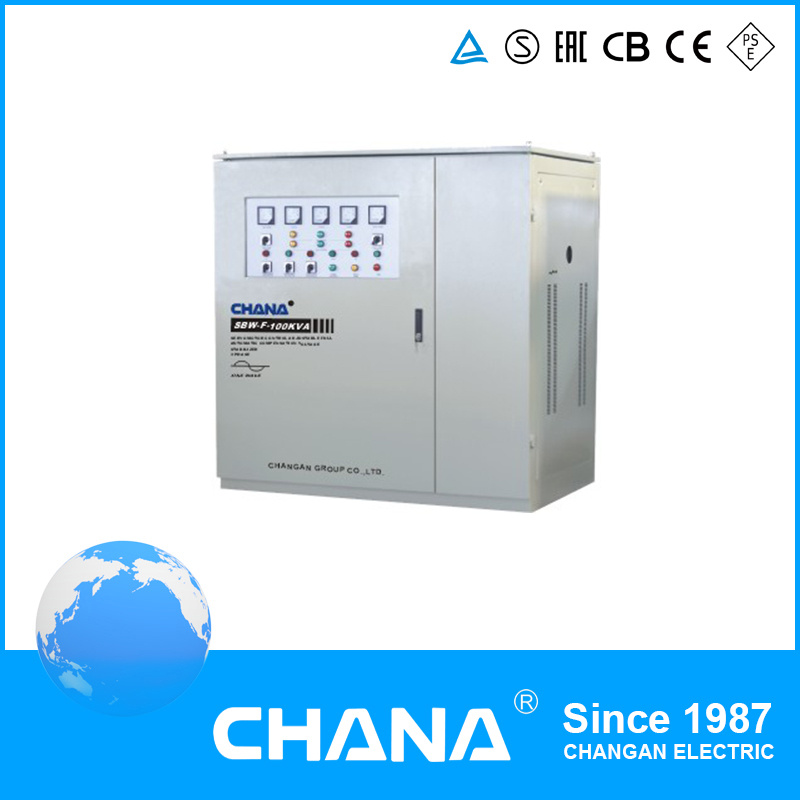

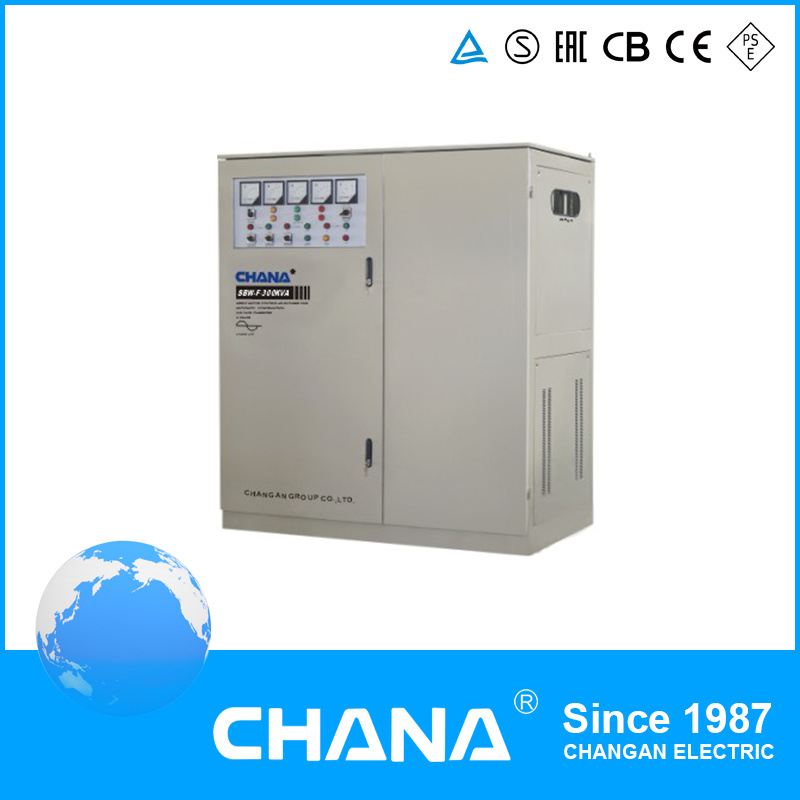

Adjustable Full Compensation Voltage Regulator Stabilizer AVR SBW-F

Name: Adjustable Full Compensation Voltage Regulator Stabilizer AVR SBW-F
Brand: all-electronics-online.com
SKU: 743412315
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SBW-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Metal
Current Type:	AC
Phase:	Three Phase
Frequency:	Industrial Frequency
Usage:	Stabilizing Voltage
Brand:	Chana

Product Description

Main Technical Date
Phase no: Three-phase four wire system
Input voltage: Phase voltage: 220V± 20%(176-264V)
Line voltage: 380V± 20%(304-456V)
Output voltage: Phase voltage: 220V± 2-5% adjustable
Line voltage: 380V± 2-5% adjustable
Frequency: 50Hz/60Hz
Efficiency: ≥ 95%
Response time: ≤ 1.5S(against 10% input voltage deviation)
Ambient temperature: -10º C-+40º C
Insulation resistance: ≥ 2MΩ
Waveform distortion: Non additional waveform distortion
Protection functions: Over-voltage, over-current, phase shortage, phase-sequence and mechanical failure.
Over-load capacity: 1min. At the rated current of 2 times.
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without.

Model	Nos.&kinds of Pkg	Package Size (Cm)
SBW-F-10KVA	1Unit/Case	12581145
SBW-F-15KVA	1Unit/Case	12581145
SBW-F-20KVA	1Unit/Case	12581145
SBW-F-30KVA	1Unit/Case	150101160
SBW-F-50KVA	1Unit/Case	150101160
SBW-F-80KVA	1Unit/Case	150101160
SBW-F-100KVA	1Unit/Case	150101160
SBW-F-120KVA	1Unit/Case	150101160
SBW-F-150KVA	1Unit/Case	165111175
SBW-F-180KVA	1Unit/Case	165111175
SBW-F-200KVA	1Unit/Case	165111175
SBW-F-225KVA	1Unit/Case	165111175
SBW-F-250KVA	1Unit/Case	135120200
SBW-F-300KVA	1Unit/Case	135120200
SBW-F-320KVA	1Unit/Case	135120200
SBW-F-350KVA	1Unit/Case	135120200
SBW-F-400KVA	1Unit/Case	135120200
SBW-F-450KVA	1Unit/Case	135120200
SBW-F-500KVA	1Unit/Case	135120200
SBW-F-600KVA	1Unit/Case	110110220×2
SBW-F-800KVA	1Unit/Case	145120200×3
SBW-F-1000KVA	1Unit/Case	145120200×3
SBW-F-1200KVA	1Unit/Case	145120200×3
SBW-F-1600KVA	1Unit/Case	145120200×3
SBW-F-1800KVA	1Unit/Case	145120200×3
SBW-F-2000KVA	1Unit/Case	145120200×3
