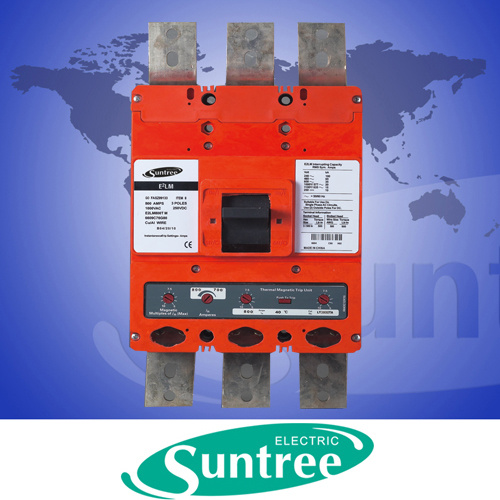

Adjustable Moulded Case Circuit Breaker (ELM with busbar)

Name: Adjustable Moulded Case Circuit Breaker (ELM with busbar)
Brand: all-electronics-online.com
SKU: 707640455
Availability: InStock
Rating: 4.7 (88 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Payment:	T/T, L/C, Paypal
Brand:	Suntree
MOQ:	10set
Quality:	Best
Hs:	853620000
Type:	Sun1
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

SM5 series circuit breaker including 7 basic frames, frame current
from 100 to 1600A. each frame has up to 415V 100kA short circuit
breaker capacity multiple choice, more flexibility in design, and save
space as well.
SM5 series circuit breaker can be used in DC situation as well. 630A
frame 3p circuit breaker concatenation used in DC600V breaking
capacity can reach 40kA.

Frame current(A)		225	400	630	800
Model		E2FM	E2KM	E2LM	E2LM
Breaking capacity(kA ms) AC 50/60Hz	lcu	85	85	85	65
220-240VAC
	lcs	85	85	85	33
	lcu	40	45	45	50
380-415VAC
IEC	lcs	40	45	45	25
60974-2	lcu	12	20	20	20
660-690VAC
	lcs	6	10	10	10
	lcu	10	10	20	20
250VDC
	lcs	5	5	10	10
240VAC	65	65	65	65
NEMA 480VAC	25	35	35	35
600VAC	18	25	25	25
Number of poles	2, 3, 4	2, 3, 4	2, 3, 4	3
Rated current	16-125A	125-400A	315-630A	700-80A
Interchangeable type
Trip unit Fixed type
Fixed thermal type
Thermal-magnetic Adjustable termal type
Magnetic type	Fixed	Adjustable	Adjustable	Adjustable
LS	-	Standard	Standard	Standard
LSI	-	Selectable	Selectable	Selectable
Rms solid LSG	-	Selectable	Selectable	Selectable
LSIG	-	Selectable	Selectable	Selectable

Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.

We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
