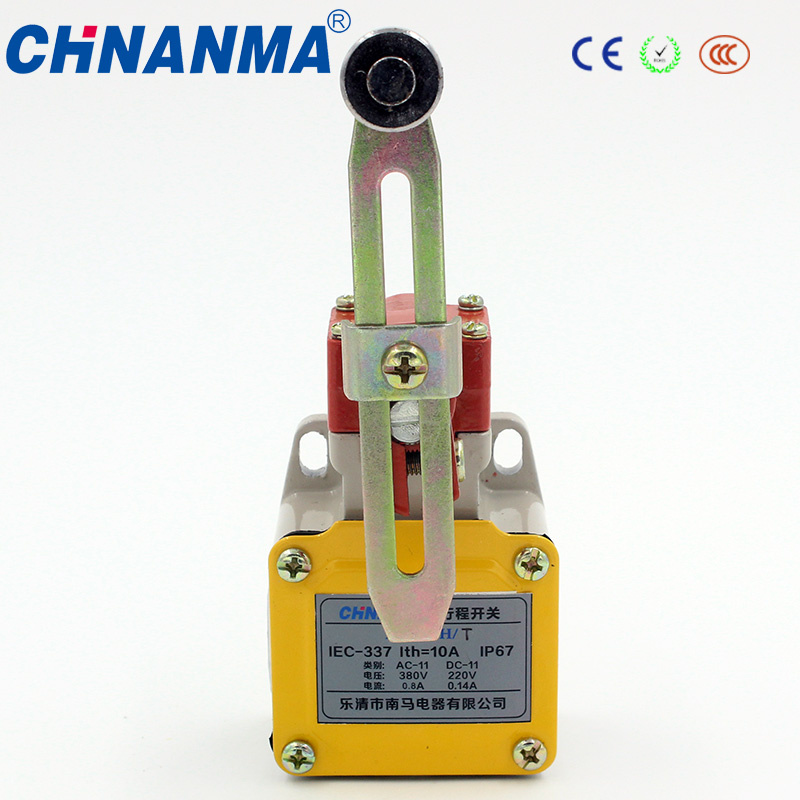

| Prod Model: |
LXP1-1T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Brass Terminal Screw, Silver Tip. |
| IP: |
54 |
| Max. Current: |
5A |
| Max. Voltage: |
AC250V |
| Pressing Type: |
Spring Roller |
| Protection: |
Waterproof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Duplex Type |
| Application: |
Industry |
| Brand: |
Chnanma |
Product Description
1.Features
1)Virous of actuators,the operation position is adjustable.
2)Outer shell covered with intensive plastic,water-proof and oil-proof,the mechanical strenth is better than NM-17&13 series of micro switch,bear hitting.
| Current | 5A 250V, |
| Voltage | 10-55Hz, |
| Material | Brass terminal screw, Silver tip. |
Protection Level
Product Description
The product is to service at such control circuit as AC50~60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.
The nominal service conditions include an ambient temperature of -25ºC+40ºC, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65.
Main technology data |
| The typical usage of travel switch is to control electrical magnent of AC or DC | | Control capacity | AC-15 | DC-13 | | Rated insulation voltage | Rated insulation current | Rated insulation voltage | Rated insulation current | | 380V | 0.8A | 220V | 0.15A | | 220V | 1.4A | 110V | 0.5A | | 110V | 2.8A |
|
| | Rated value | Rated insulation voltage Ui=380V conventional enclosed heating current Ith2=10A | | Protection for short-circut | Rated fuse current 1000A RL1-15/10 | | electrical | Electrical life of AC one million and half times,Electrical life of DC three hundred | | operation frequency | DC2400 times/hour,AC 1200 times/hour | | mechanical | LXK3-20S.H/H1.H2.H3,LXK3-20S.H/W 600 million times Other specification 1000 million times | | Repetition precision | The difference between the maximaum(or the minimum) and the means is n more than 0.5mm in ten times of actions | | Protection degree of enclosure | IP65 GB4208-84 | | Vibration resistance | Frenquency:10-55HZ
Accelerated speed:10g(90M/S)
Amplitude 0.75mm |
Type |
Action travel |
Difference travel |
Full travel |
Action force |
Resilience |
Max operation force |
Relief force |
LXK3-20S H/Z |
1.75 -2mm |
≤ 1.2mm |
≥ 6mm |
1± 0.15kg |
≥ 0.5kg |
3kg |
|
LXK3-20S H/L |
LXK3-20S H/B |
18° 22° |
≤15° |
≥60° |
1.53± 0.35kg Cro |
0.6kg Cro |
2.4kg Cro |
|
LXK3-20S |
H/T |
|
|
|
|
|
|
|
LXK3-20S H/J |
LXK3-20S H/D |
|
|
|
1± 0.25kg Cro |
0.3kg Cro |
2.2kg Cro |
|
LXK3-20S H/H1 |
70° 80° |
40° 60° |
90° 5° |
2± 0.3kg Cro |
|
|
2± 0.3kg Cro |
LXK3-20S H/H2 |
LXK3-20S H/H3 |
LXK3-20S H/W |
12° 20° |
8°±2° |
|
0.38± 0.08kg Cro |
0.15kg Cro |
|
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
