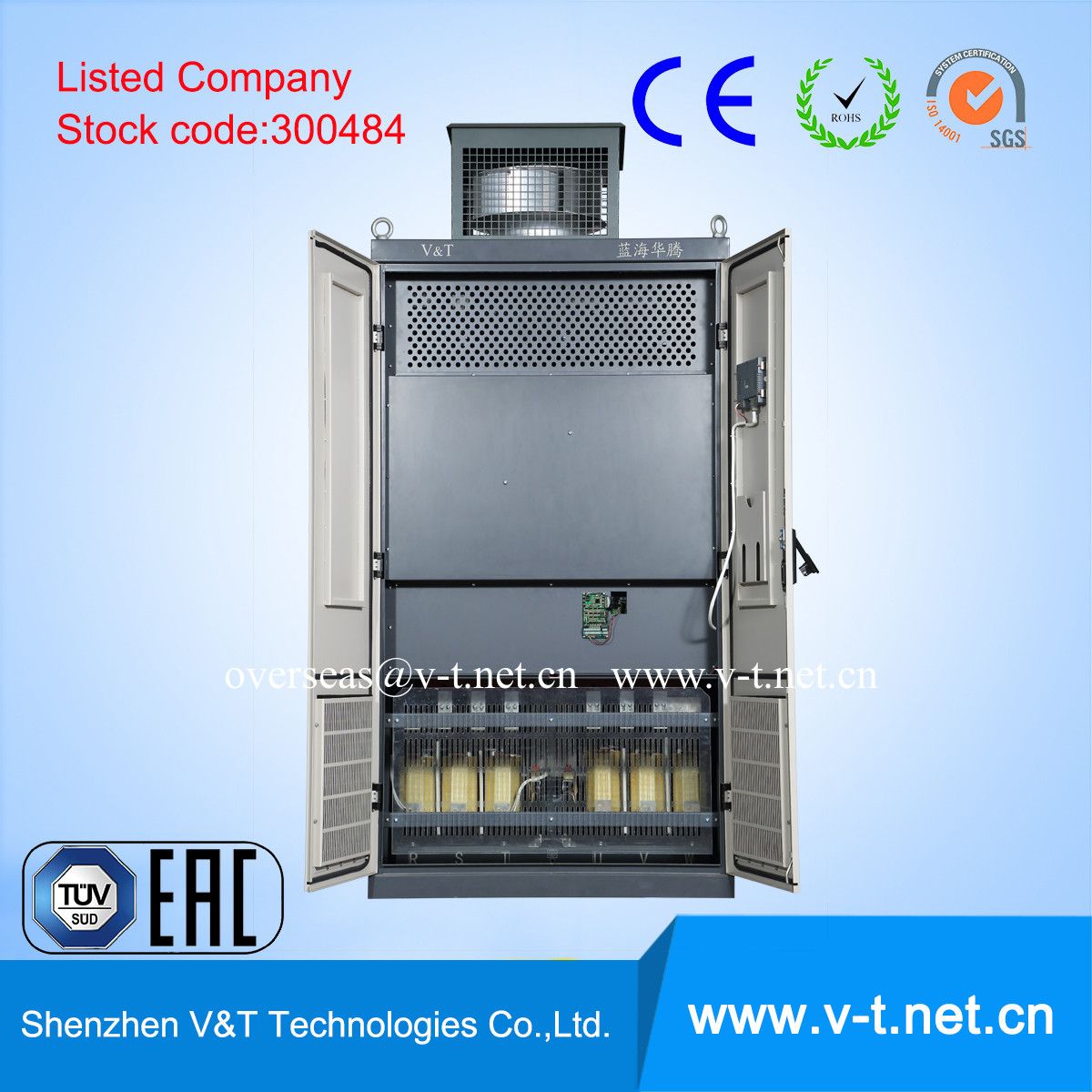

Adjustable Speed Drives for Winding Machine (V5-H-Y3)

Name: Adjustable Speed Drives for Winding Machine (V5-H-Y3)
Brand: all-electronics-online.com
SKU: 823853285
Availability: InStock
Rating: 5 (54 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	V&T V5-H
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage and Current
Brand:	V&T

Product Description

V&T Company Introduction
    A Knowledge-based company,V&T brings you the benefits of over 20 years of engineering experience and expertise, and the richness of its collaborations with technology leaders across the global.
    V&T is one of the leading AC Drive manufacturers in China with a dedicated, CNAS-certified testing facility. Our products are tested for conformity to standards that exceeds mandatory requirements, giving you the assurance of high-quality performance. Our focus on continuous improvement ensures that our quality is on par with the best in the world. Repeat orders endorse the value that we deliver.
    The reliability of our products are ensured by international test certification-CE, RoHs, SGS, and EAC .

Textile industry:
1.Reducing the rate of breakage and improving the efficiency of production
2.Specially made external heat radiator, cotton easy clean
3.Unique function of swing frequency is suitable for equipment of yarn winding
4.Rich indicaton signals: full indication, broken wire indication, power failure indication, etc.

Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Motor Power(KW)		0.75	1.5	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37	45	55	75
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	2.5	3.8	5.5	9	13	17	24	30	39	45	60	75	91	112	150
	Overload capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5%
	Rate current(A)	3.5	6.2	9.2	14.9	21.5	27.9	39	50.3	60	69.3	86	104	124	150	201
Braking unit		Built-in as standard								External braking unit needed
Protection class		IP20
Cooling mode		Self-cooling		Forced air convection cooling

Power(KW)		90	110	132	160	200	220	280	315	355	400	...	...	...	...	...
Motor Power(KW)		90	110	132	160	200	220	280	315	355	400
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	176	210	253	304	377	415	520	585	650	740
	Overload capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5%
	Rate current(A)	160*	196*	232*	282*	352*	385*	491*	552*	624*	704*
Braking unit		External braking unit needed
Protection class		IP20
Cooling mode		Forced air convection cooling

Power(KW)		90	110	132	160	200	220	280	315	355	400	...	...	...	...	...
Motor Power(KW)		90	110	132	160	200	220	280	315	355	400
Output	Voltage(V)	Three-phase 0V to rated input voltage
	Rate current(A)	176	210	253	304	377	415	520	585	650	740
	Overload capacity	150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
Input	Rated voltage/frequency	Three-phase 380V/480V; 50Hz/60Hz
	Allowable voltage range	323V ~ 528V; Voltage unbalancedness ≤ 3%; allowable frequency fluctuation: ± 5%
	Rate current(A)	160*	196*	232*	282*	352*	385*	491*	552*	624*	704*
Braking unit		External braking unit needed
Protection class		IP20
Cooling mode		Forced air convection cooling

Shenzhen V&T Technologies Co., Ltd. Was certificated as a "National Hi-tech and Double-Software Enterprise", which has fully intellectual property rights and devotes to the R&D, manufacture, sales and technical service of Inverter, Servo Drive, Electric Vehicle Motor Controller, etc. V&T has won the "Technical Innovation" prize awarded by the Inverter Industry Association, "The Most Competitive Brands" prize awarded by China Electrical Association, "2012 Electric Vehicle Excellent Technology" prize respectively awarded by China Electro-technical Society (CES), the Specialized Committee of Electric Vehicles, the Automotive Engineering Society of China, and the Branch Association of Electric Vehicles. V&T has been ranked as one of the "Top 10 Chinese Inverter Enterprises". V&T successfully listed on the Stock Exchange of China in 2016 (stock code: 300484).

In regard to core and mainstream motor control technologies, Shenzhen V&T Technologies Co., Ltd. Has mastered both advanced "Vector Control "and "Torque Control" technology so far. Through continuous technological innovation, international technical exchange and cooperation with other countries, V&T has completely grasped the key control technique, also possesses the capacity of industrialization design and manufacturing. Company has developed and reserved many product series. The product voltage grade mainly contains 200V, 400V, 690V, 1140V, and the power grade varies from 0.4kW to 3000kW, which could meet various application demands for high, medium and low-end market.

Under the premise of meeting international standards and satisfying different industries' application requirements, we further strengthened the product reliability and environment adaptability to suit harsh and extreme environments. Customized product and industrialized design can better meet medium and high-end application demands. The products have been widely used in electric vehicles, metallurgy, crane, oil, chemicals, machine tools, metal processing, building materials, stone, wood processing, ceramics, plastics, air compressor, washing machine, water supply, air conditioning, municipal engineering, textile, printing, mining, solar pump and other industries.
