ADSS All Dielectric Self-Supporting Fiber Optic Cable

Name: ADSS All Dielectric Self-Supporting Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 688287712
Availability: InStock
Rating: 4.8 (50 reviews)

Price:	US $ 0.785-0.85/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS Fiber Optic Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Span Max.:	1000m
Design Life:	30years
Size:	12.5mm
Strength Member:	Kevlar
Jacket Material:	PE,at
Application:	Art
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Fiber
Brand:	OEM or Geyida
Sheath Material:	PE

Product Description

ADSS Fiber optic Cable:

Description

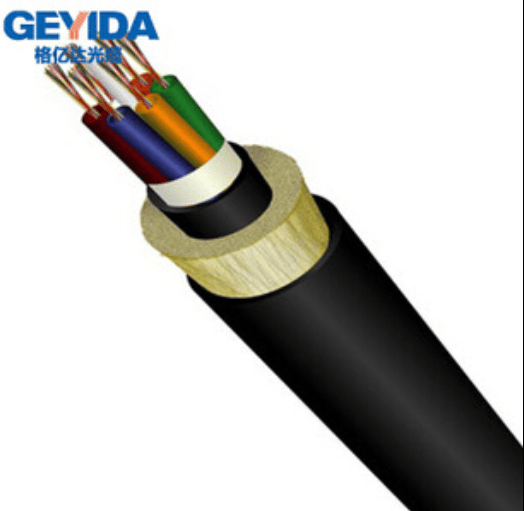

ADSS cable is loose tube stranded. Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compound and circular cable core. After the cable is filled with filling compound. It is covered with thin PE(polyethylene) inner sheath as strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.

Characteristics
Can be installed without shutting off the power
Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and underkprops
Large span lengths and the largest span is over 1000m
Good performance of tensile strength and temperature
The design life span is 30 years

Application
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Ref.outer diameter mm	Ref.weight kg/km		Ref.daily max.working tension kN	allowable working tension kN	Break strength kN	Strength member CSA mm 2	Modulus of elasticity kN/ mm 2	Heat expansion coefficient ×10 -6 /k
Ref.outer diameter mm	PE sheath	sheath	Ref.daily max.working tension kN	allowable working tension kN	Break strength kN	Strength member CSA mm 2	Modulus of elasticity kN/ mm 2	Heat expansion coefficient ×10 -6 /k
12.5	125	136	1.5	4	10	4.6	7.6	1.8
13.0	132	142	2.25	6	15	7.6	8.3	1.5
13.3	137	148	3.0	8	20	10.35	9.45	1.3
13.6	145	156	3.6	10	24	13.8	10.8	1.2
13.8	147	159	4.5	12	30	14.3	11.8	1.0
14.5	164	177	5.4	15	36	18.4	13.6	0.9
14.9	171	185	6.75	18	45	22.0	16.4	0.6
15.1	179	193	7.95	22	53	26.4	18.0	0.3
15.5	190	204	9.0	26	60	32.2	19.1	0.1
15.6	194	208	10.5	28	70	33.0	19.6	0.1
16.3	211	226	12.75	34	85	40.0	20.1	0.1
16.8	226	242	15.45	41	103	48.0	24.0	-0.4
17.2	236	253	16.2	45	108	51.0	25.1	-0.5
17.9	249	266	18.0	50	120	58.8	26.1	-0.8
